Chapter 4 Operating ISPSoft
4-37

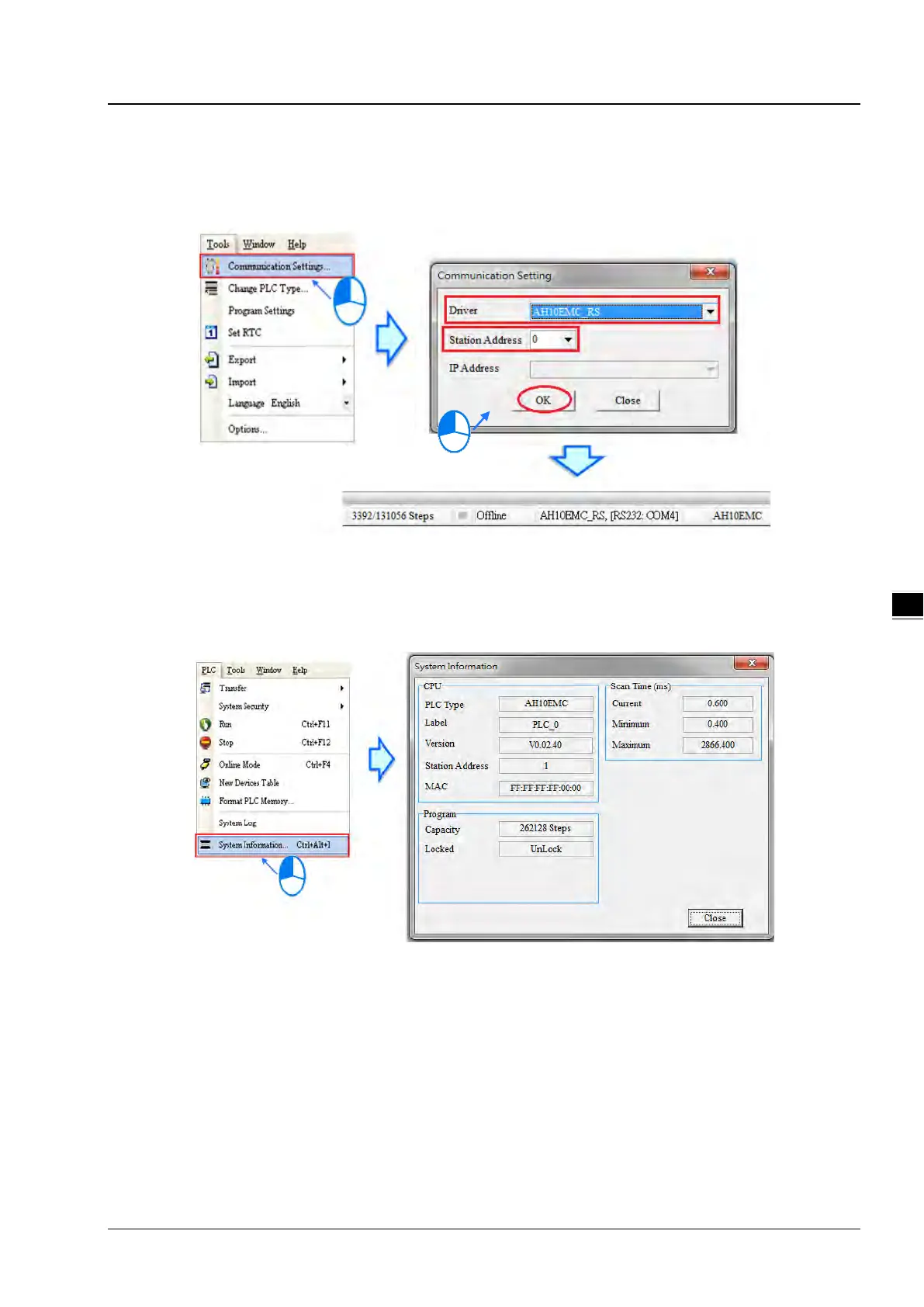

(5) Start ISPSoft, and then click Communication Settings… on the Tools menu. In the Communication Setting
window, select the driver which has been created in the Driver drop-down list box, appear, and select 0 in the
Station Address drop-down list box, and click OK. The information about the driver will be displayed in the status
bar in ISPSoft.
(6) Click System Information on the PLC menu. ISPSoft will retrieve related information from the PLC. If the computer
communicates with the CPU module normally, the related information retrieved from the PLC will be displayed in the
System Information window.
To Next Page
