Chapter 9
E
ther
n
et
Specif
ication and Operation
9
-
131
9_
7.

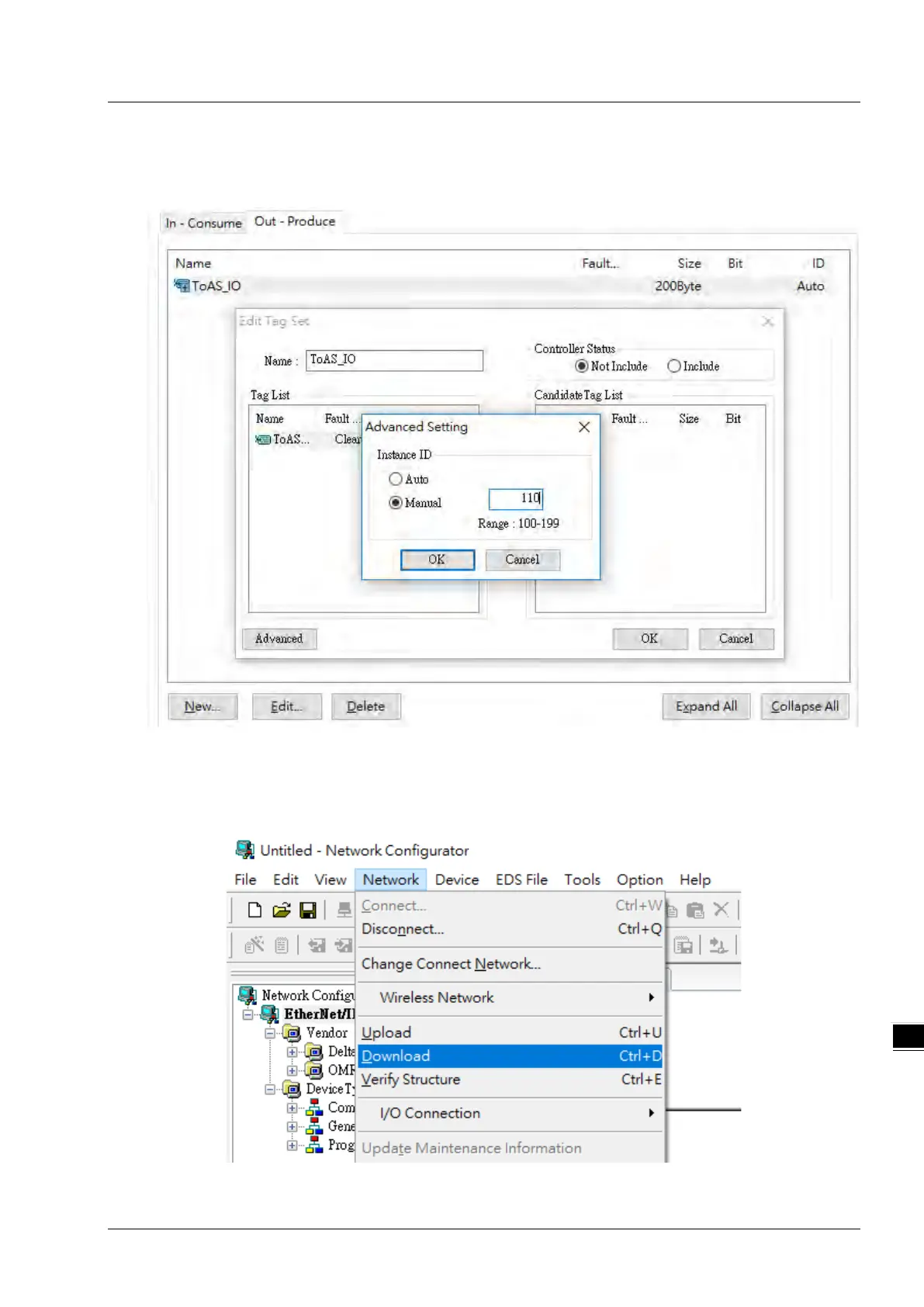

Use the same met
hod to set the Ins
tance ID manu
ally for ID
s in In
-
Consum
e section as yo
u have set for I
Ds in
Out
-
Produce s
ection.
8.
W
hen the setti
ngs for Instanc
e ID
are don
e, click
OK
to con
firm the set
tings on Edit Dev
ice Parameter
.
9.
Click
Network
-
> Download
to
download the p
arameters to th
e slaves.
