AS Series Operation Manual
9-132
Set up an IO Connection from a Master station

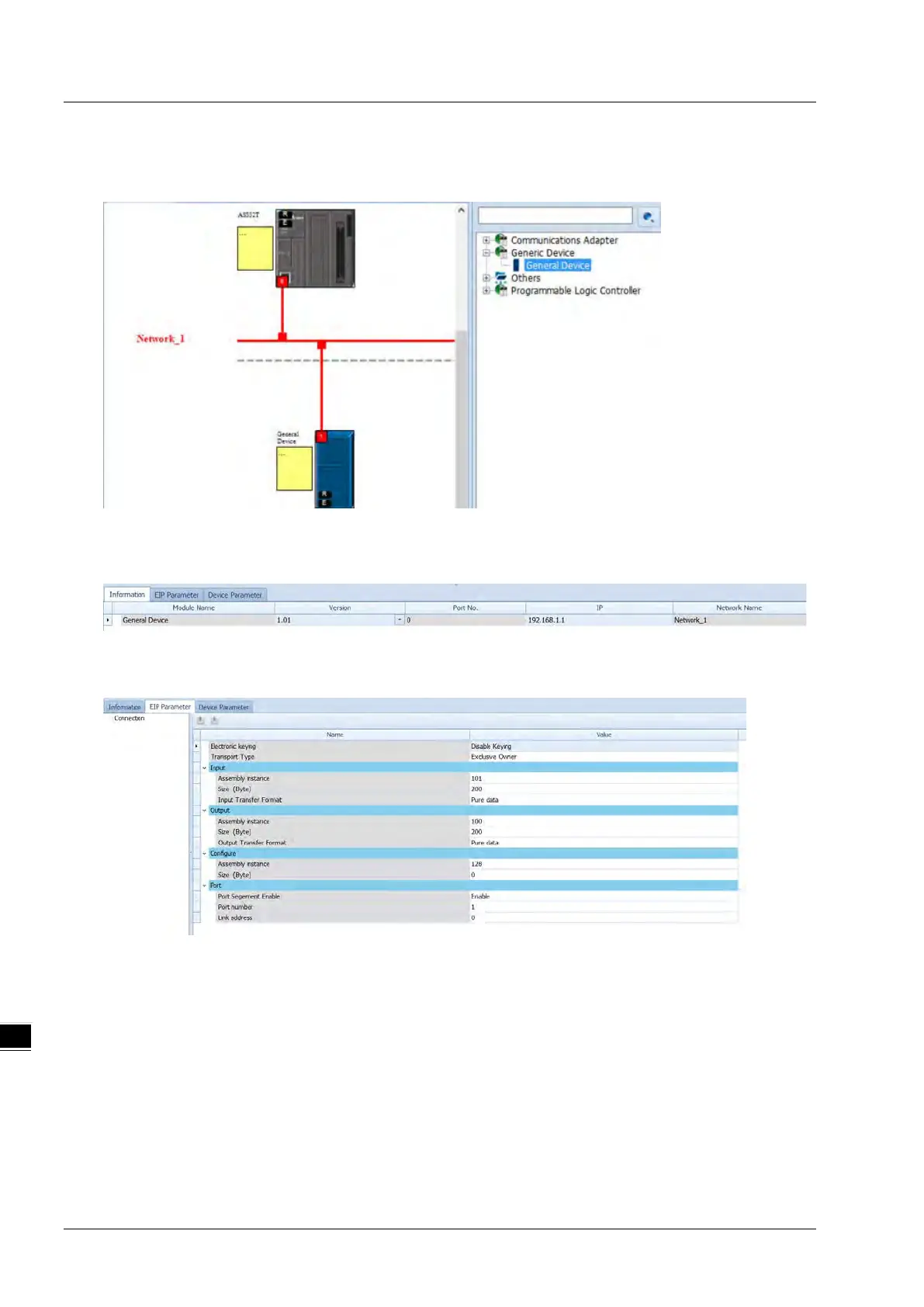

1. Start EIP Builder and drag and drop a General Device into the Network View area and set up network connection.
2. Click slave icon and set up its IP address and then configure the parameters in the EIP Parameter tab.
3. Set up the slave IO connection:
a. Master Output Instance ID = Slave Input (In-Consume) Instance ID
b. Master Input Instance ID = Slave Output (Out-Produce）Instance ID
※ Refer to slave’s operation manual for more information on Instance IDs.
