Delta ASD-A2R-1B43 Series User Manual

Chapter 8 ParametersASDA-A2R Series
8-76 Revision December, 2014
Settings：
It is the rotation number setting when analog speed command
inputs the max. voltage (10V). If it is set to 30 and the external
voltage inputs 10V, it means the position command is +3
cycles. 5V means the speed control command is 1.5 cycles.
-10V means the position command is -3 cycles.
Position control command = Input voltage value x Setting value
／10
NOTE
It will be available after firmware version v1.031 sub8.
P1-67 Reserved
Address: 0186H
0187H

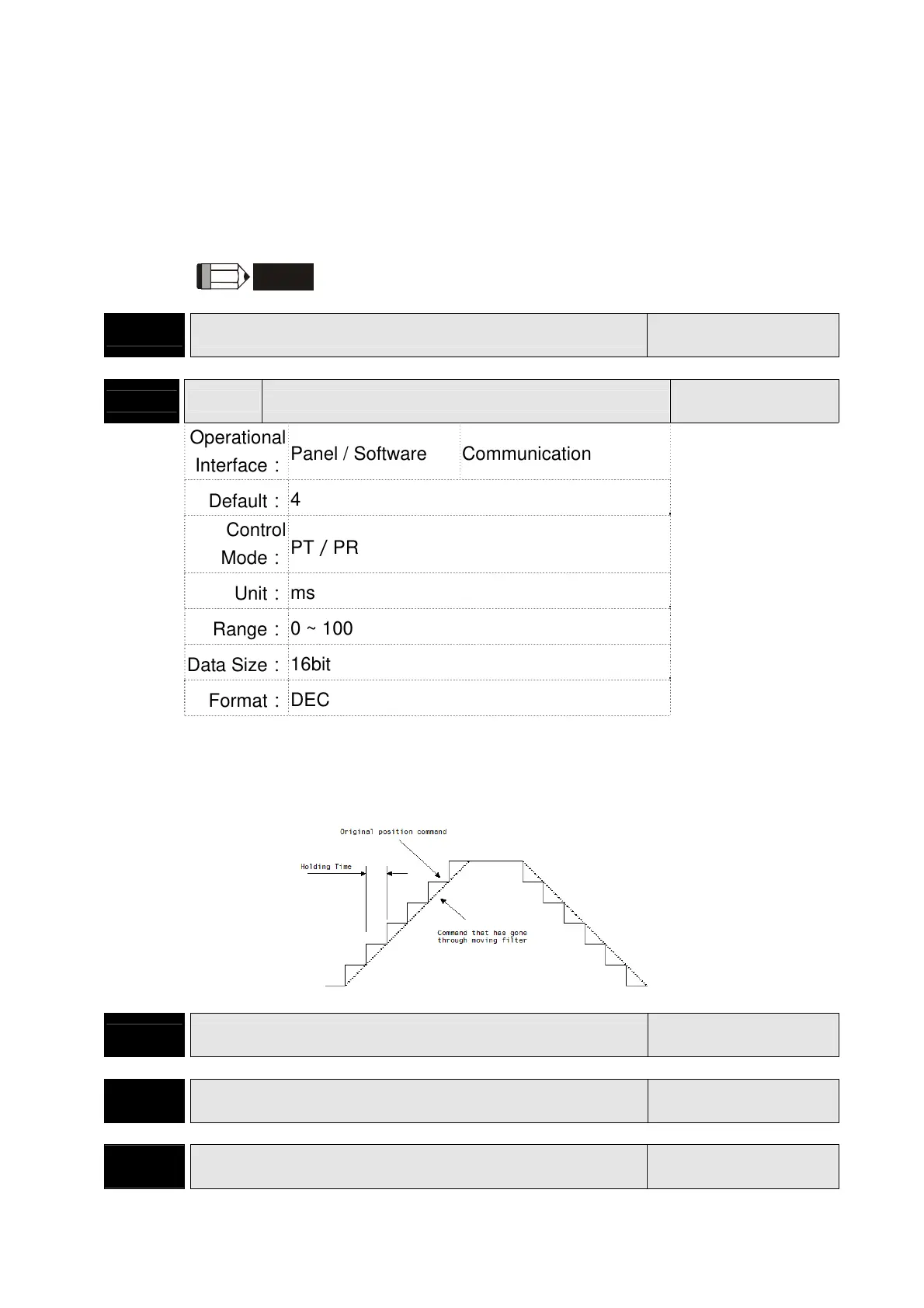

P1-68 PFLT2 Position Command Moving Filter
Address: 0188H
0189H
Operational
Interface：
Panel / Software Communication
Related Section: -
Default：
4
Control
Mode：
PT／PR
Unit：
ms
Range：
0 ~ 100
Data Size：
16bit
Format：
DEC
Settings：
0: Disabled
Moving Filter can activate smooth function in
the beginning and the end of step command,
but it will delay the command.
P1-69 Reserved
Address: 018AH
018BH
P1-70 Reserved
Address: 018CH
018DH
P1-71 Reserved
Address: 018EH
018FH
