 Output function selection: Please refer to table 8.2
 Output contact: a or b contact
0: Set the output contact as normally closed (b contact)
1: Set the output contact as normally opened (a contact)
(P2-18 ~ P2-22) The setting value of function programmed
When parameters are modified, please re-start the servo drive to
ensure it can work normally.

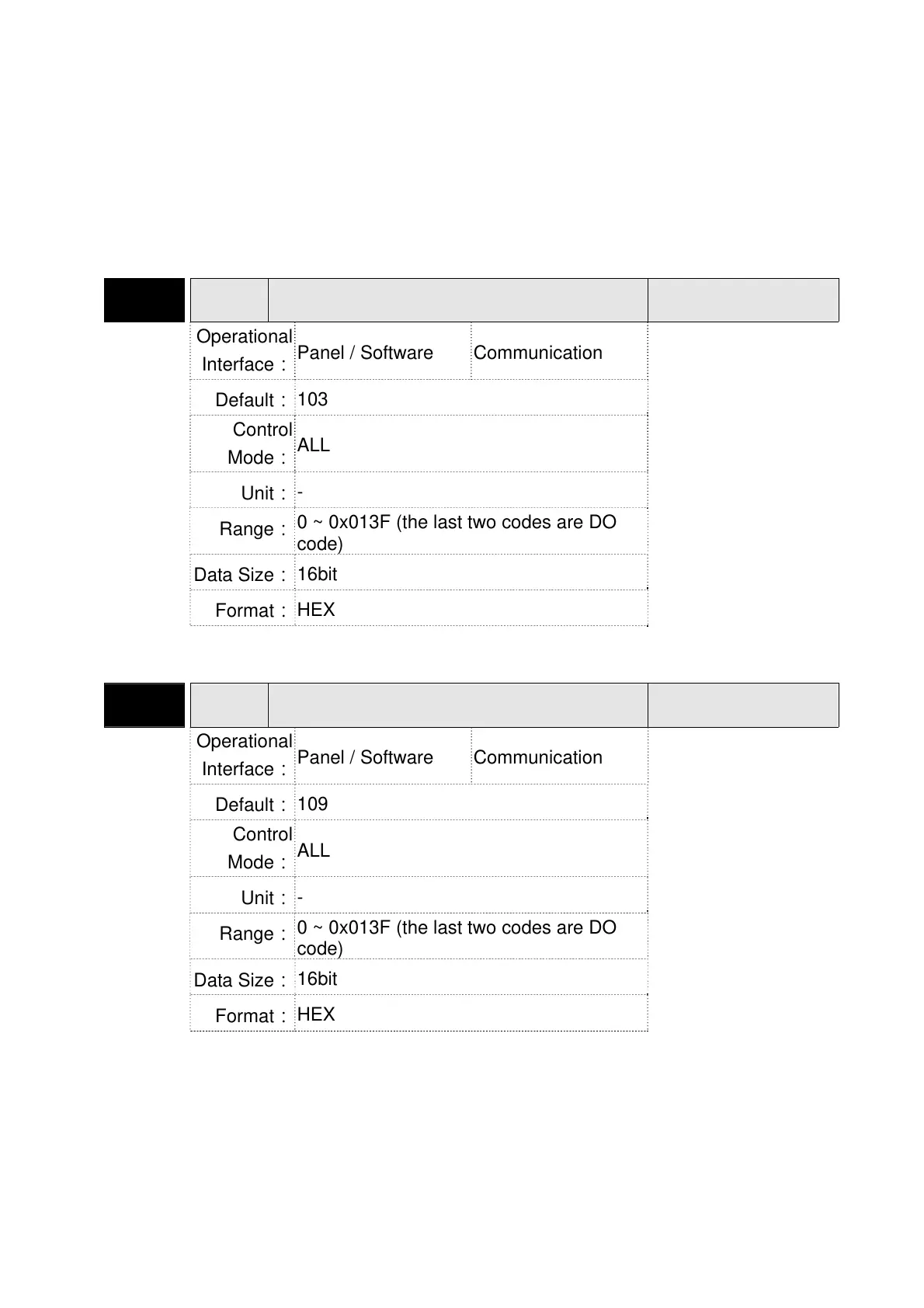

P2-19 DO2 DO2 Functional Planning
Address: 0226H
0227H
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.2
Default：
103
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x013F (the last two codes are DO
code)
Data Size：
16bit
Format：
HEX
Settings：
Please refer to the description of P2-18
P2-20 DO3 DO3 Functional Planning
Address: 0228H
0229H
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.2
Default：
109
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x013F (the last two codes are DO
code)
Data Size：
16bit
Format：
HEX
Settings：
Please refer to the description of P2-18
