Chapter 8 ParametersASDA-A2R Series
8-90 Revision December, 2014

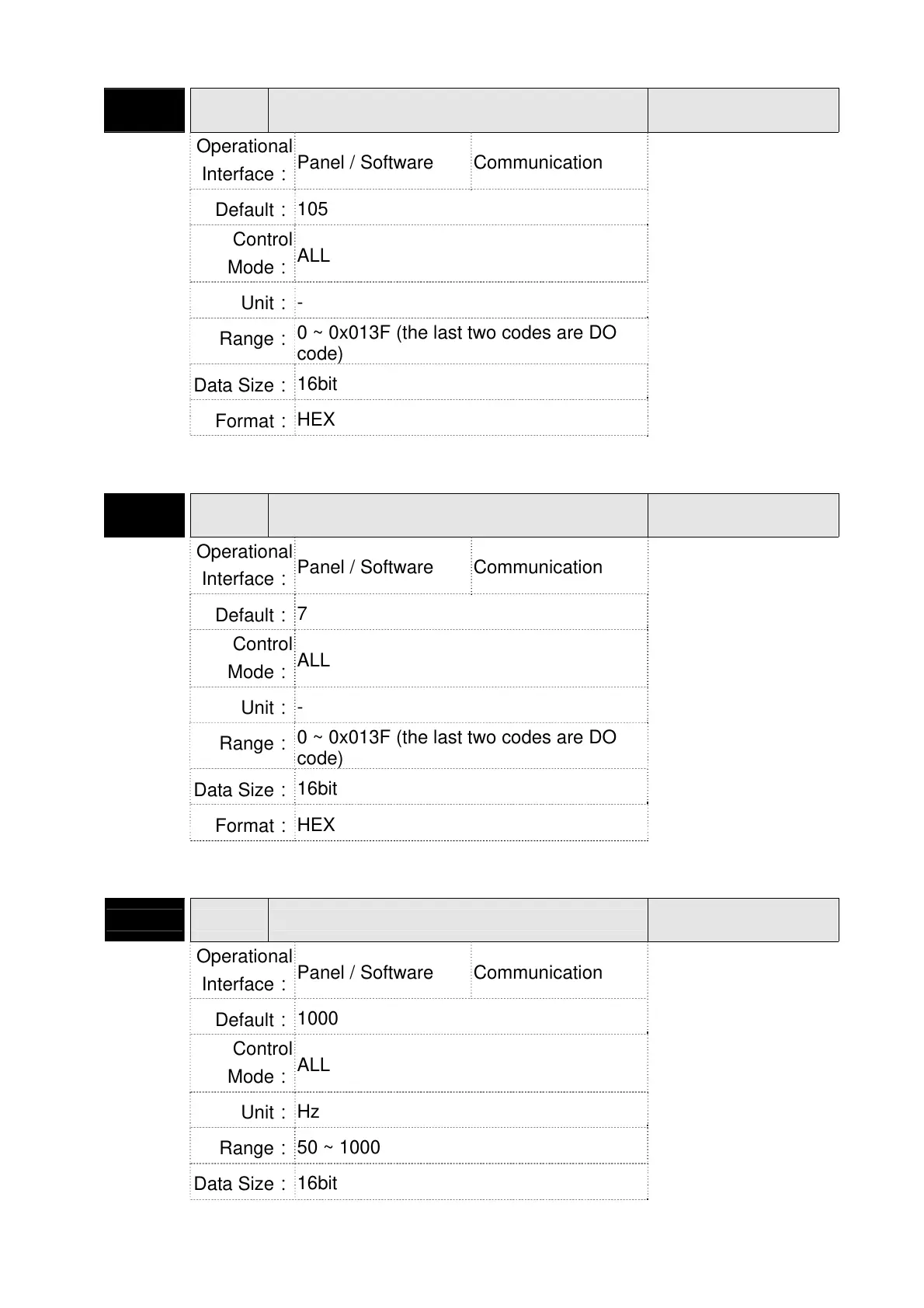

P2-21 DO4 DO4 Functional Planning
Address: 022AH
022BH
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.2
Default：
105
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x013F (the last two codes are DO
code)
Data Size：
16bit
Format：
HEX
Settings：
Please refer to the description of P2-18
P2-22 DO5 DO5 Functional Planning
Address: 022CH
022DH
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.2
Default：
7
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x013F (the last two codes are DO
code)
Data Size：
16bit
Format：
HEX
Settings：
Please refer to the description of P2-18
P2-23 NCF1 Resonance Suppression (Notch filter) (1)
Address: 022EH
022FH
Operational
Interface：
Panel / Software Communication
Related Section:
6.3.7
Default：
1000
Control
Mode：
ALL
Unit：
Hz
Range：
50 ~ 1000
Data Size：
16bit
