Delta ASD-A2R-1B43 Series User Manual

Chapter 8 ParametersASDA-A2R Series
Revision December, 2014
8-91
Format：
DEC
Settings：
The first setting value of resonance frequency. If P2-24 is set to 0,
this function is disabled. P2-43 and P2-44 are the second Notch
filter.

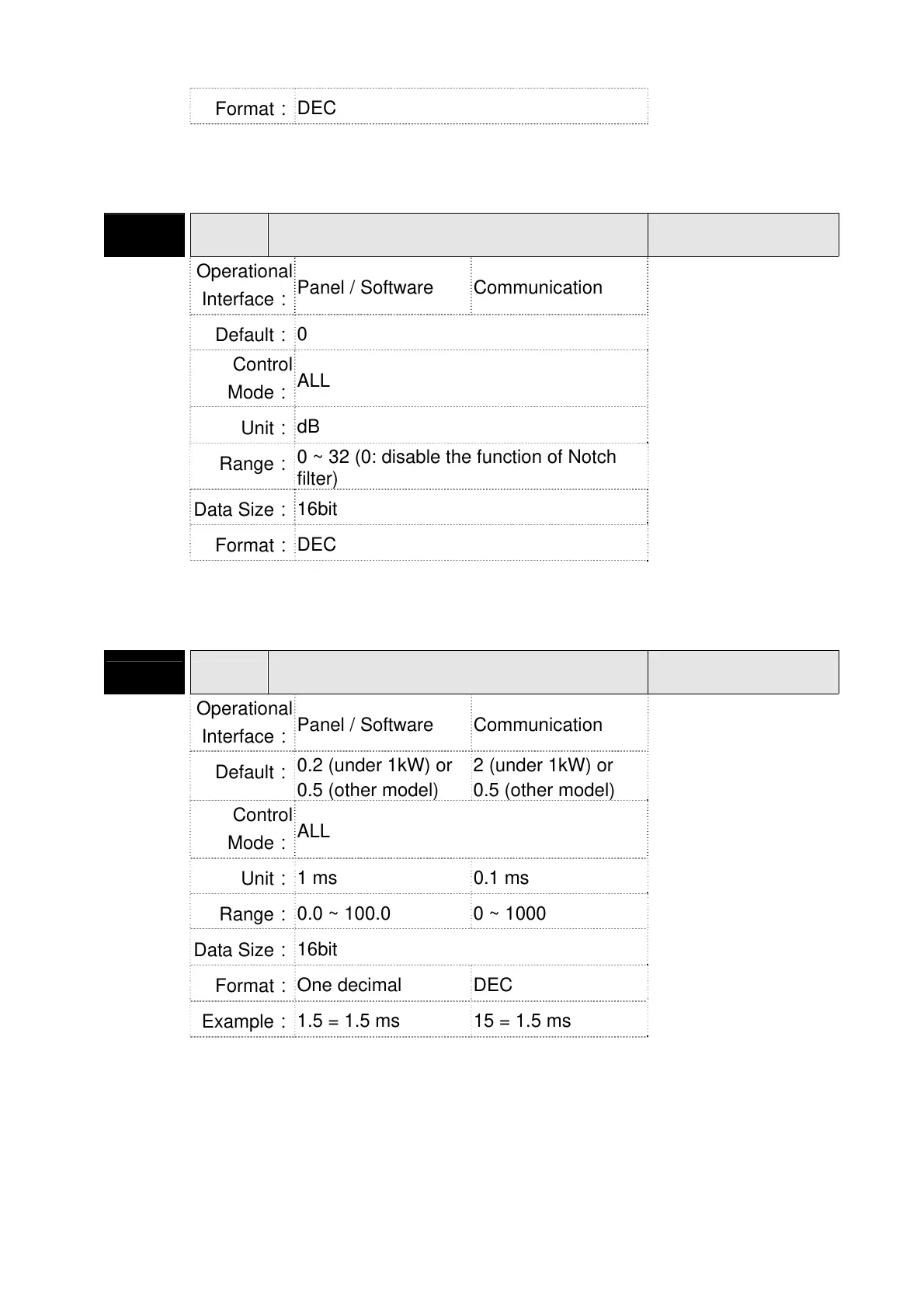

P2-24 DPH1
Resonance Suppression (Notch filter)
Attenuation Rate (1)
Address: 0230H
0231H
Operational
Interface：
Panel / Software Communication
Related Section:
6.3.7
Default：
0
Control
Mode：
ALL
Unit：
dB
Range：
0 ~ 32 (0: disable the function of Notch
filter)
Data Size：
16bit
Format：
DEC
Settings：
The first resonance suppression (notch filter) attenuation rate.
When this parameter is set to 0, the function of Notch filter is
disabled.
P2-25 NLP
Low-pass Filter of Resonance
Suppression
Address: 0232H
0233H
Operational
Interface：
Panel / Software Communication
Related Section:
6.3.7
Default：
0.2 (under 1kW) or
0.5 (other model)
2 (under 1kW) or
0.5 (other model)
Control
Mode：
ALL
Unit：
1 ms 0.1 ms
Range：
0.0 ~ 100.0 0 ~ 1000
Data Size：
16bit
Format：
One decimal DEC
Example：
1.5 = 1.5 ms 15 = 1.5 ms
Settings：
Set the low-pass filter of resonance suppression. When the value
is set to 0, the function of low-pass filter is disabled.
