Delta ASD-A2R-1B43 Series User Manual

Chapter 8 ParametersASDA-A2R Series
Revision December, 2014
8-205

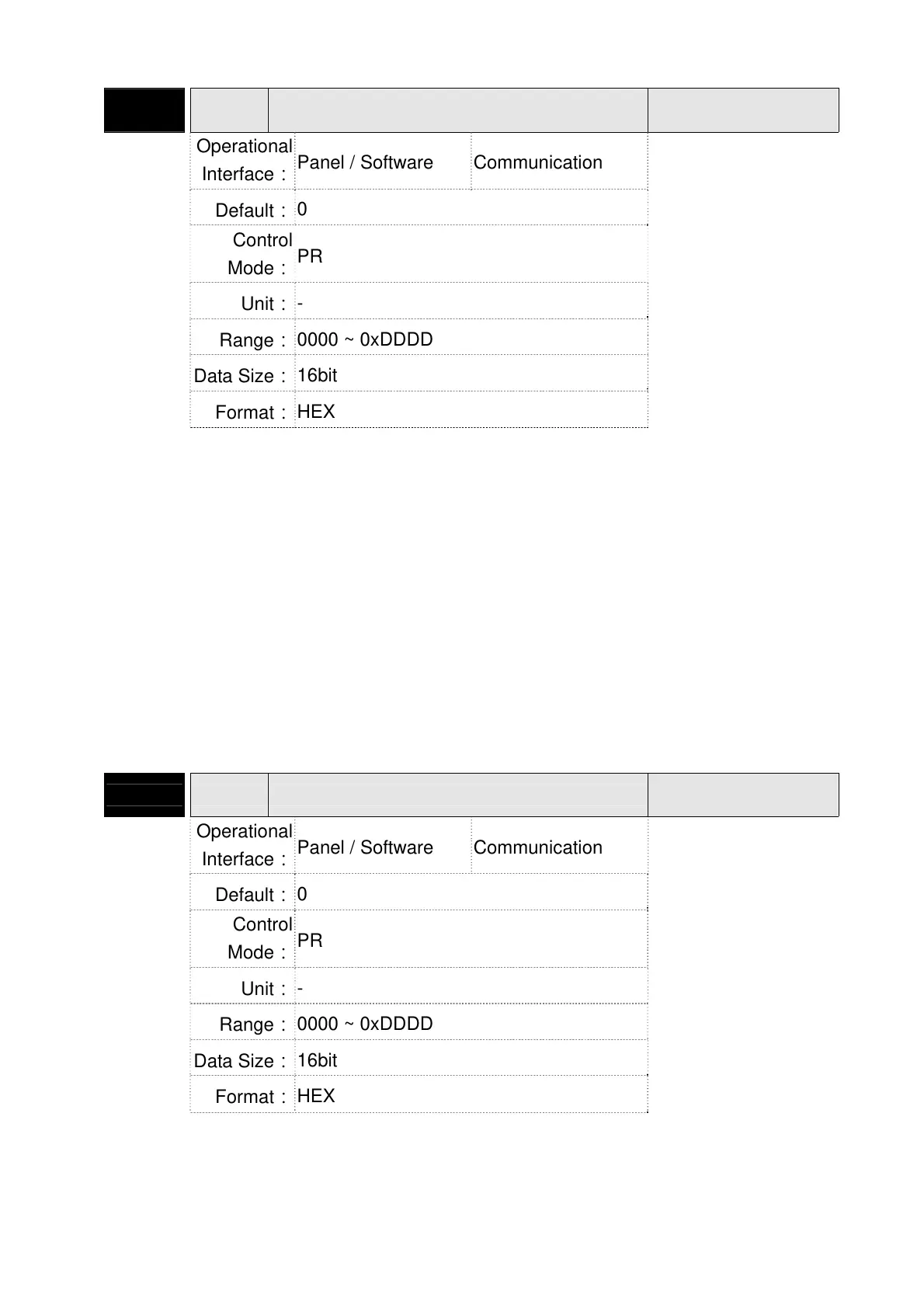

P5-98 EVON PR# Triggered by Event Rising-Edge
Address: 05C4H
05C5H
Operational
Interface：
Panel / Software Communication
Related Section: -
Default：
0
Control
Mode：
PR
Unit：
-
Range：
0000 ~ 0xDDDD
Data Size：
16bit
Format：
HEX
Settings：
Four items: UZYX
When EVx is set to ON, the PR# will be executed.
X=0: When EV1 is ON, PR will not be triggered.
X=1~D: When EV1 is ON, execute PR # 51~63.
Y=0: When EV2 is ON, PR will not be triggered.
Y=1~D: When EV2 is ON, execute PR # 51~63.
Note: EV3 and EV4 are supported after firmware V1.009.
Z=0: When EV3 is ON, PR will not be triggered.
Z=1~D: When EV3 is ON, execute PR # 51~63.
U=0: When EV3 is ON, PR will not be triggered.
U=1~D: When EV4 is ON, execute PR # 51~63.
P5-99 EVOF PR# Triggered by Event Falling-Edge
Address: 05C6H
05C7H
Operational
Interface：
Panel / Software Communication
Related Section: -
Default：
0
Control
Mode：
PR
Unit：
-
Range：
0000 ~ 0xDDDD
Data Size：
16bit
Format：
HEX
