Delta ASD-A2R-1B43 Series User Manual

Chapter 8 ParametersASDA-A2R Series
8-210 Revision December, 2014
Range：
-2147483648 ~ +2147483647
Data Size：
32bit
Format：
DEC
Settings：
PATH# 1 Data
17B31 ~
28
18B27 ~
24
19B23 ~
20
20B19 ~
16
21B15 ~
12
11 ~ 8 7 ~ 4
3 ~ 0
BIT
DATA (32 bit)
Property of P6-02; P6-03 corresponds to the target position of
P6-02 or jump to PATH_NO.
NOTE
PATH (procedure)

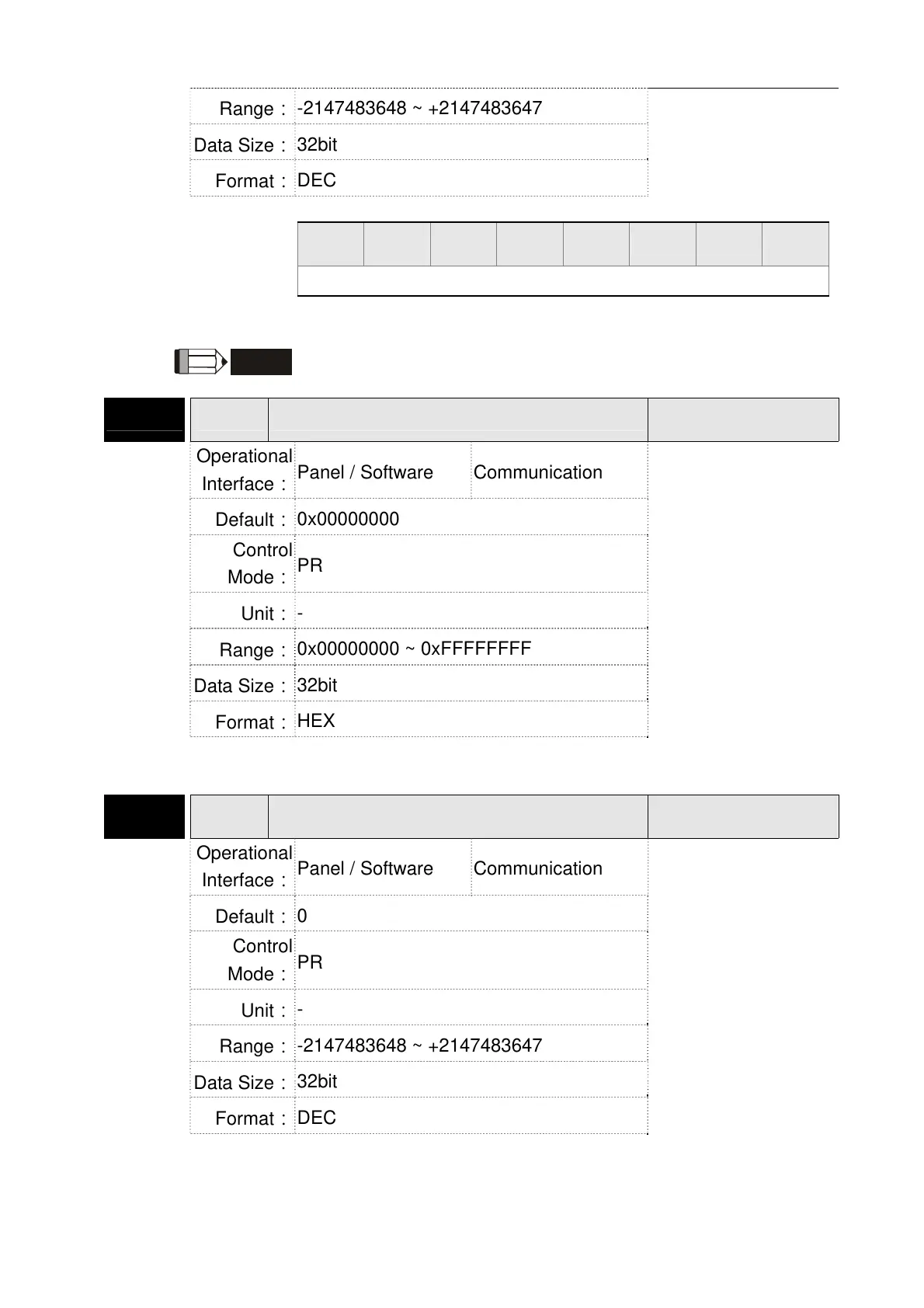

P6-04 PDEF2 PATH# 2 Definition
Address: 0608H
0609H
Operational
Interface：
Panel / Software Communication
Related Section:
7.10
Default：
0x00000000
Control
Mode：
PR
Unit：
-
Range：
0x00000000 ~ 0xFFFFFFFF
Data Size：
32bit
Format：
HEX
Settings：
Please refer to the description of P6-02
P6-05 PDAT2 PATH# 2 Data
Address: 060AH
060BH
Operational
Interface：
Panel / Software Communication
Related Section:
7.10
Default：
0
Control
Mode：
PR
Unit：
-
Range：
-2147483648 ~ +2147483647
Data Size：
32bit
Format：
DEC
Settings：
Please refer to the description of P6-03.
