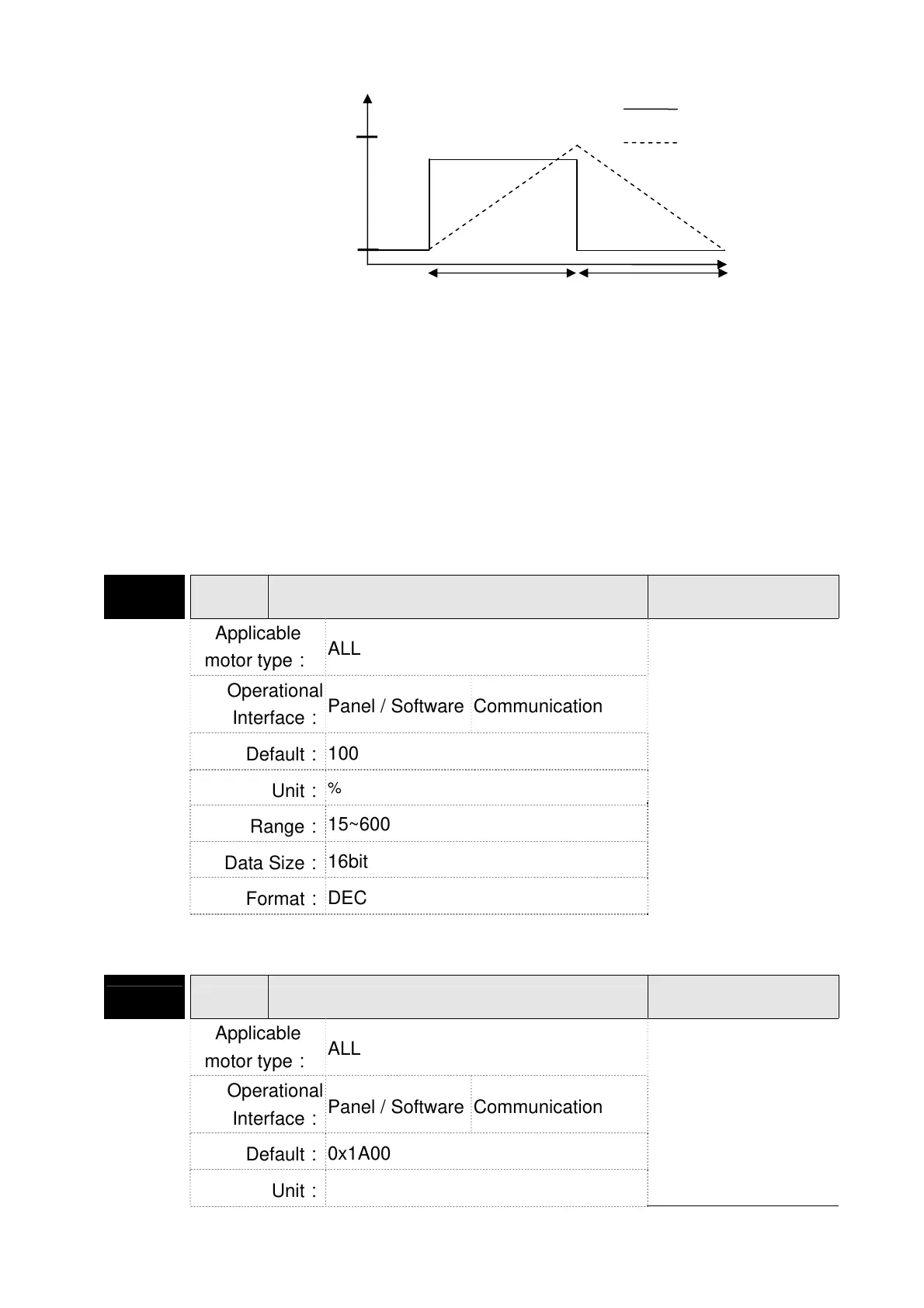

From the above figure, when motor outputs 200% of current,
the protection level will trun to overload level from the normal
one in 8*PM-19 seconds (the setting is accoding to the motor
that users select). When motor outputs no current, the motor
temperature drops to the normal level within 12*PM-20
seconds. That is to say, if users operate the motor by the
above pattern, it will not exceed the protection level. However,
if motor only generates no current in a short time, it will
exceed the protection level.
PM-20 Overload Gain (Temperature Falls)
Address:
Applicable
motor type：
ALL
Related Section: -
Operational
Interface：
Panel / Software Communication
Default：
100
Unit：
%
Range：
15~600
Data Size：
16bit
Format：
DEC
Settings：
Please refer to PM-19
PM-21 Cogging Compensation
Address:
Applicable
motor type：
ALL
Related Section: -
Operational
Interface：
Panel / Software Communication
Default：
0x1A00
Unit：
0%
200%
Protection level
Motor current
8sec*PM-19
12sec*PM-20
Overload level
Normal level
