Delta ASD-A2R-1B43 Series User Manual

Chapter 11 Specifications ASDA-A2R Series
11-26 Revision December, 2014

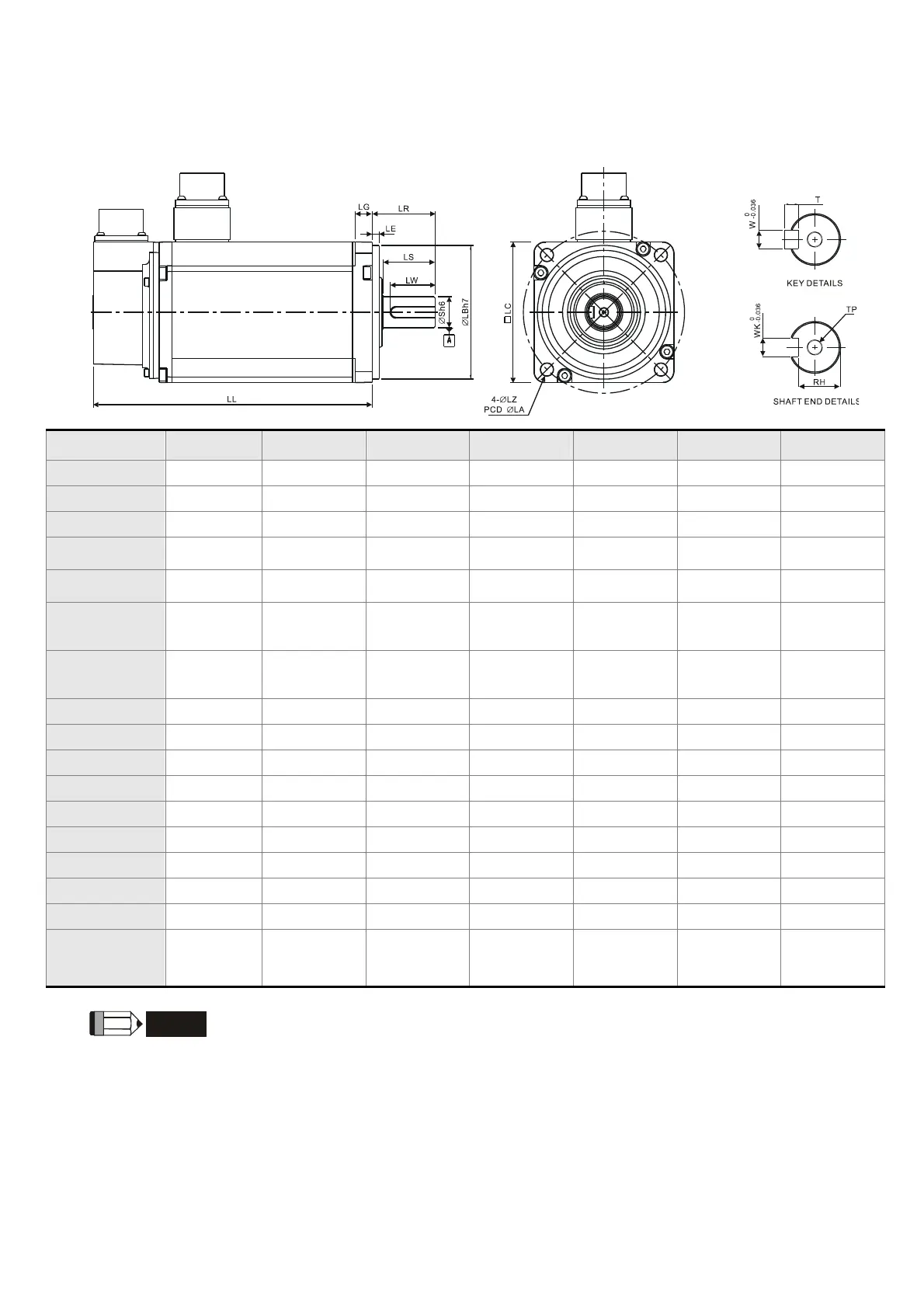

Motor Frame Size: 100 ~ 130 (Units: mm)
Model
F11305□ S
F△1308□ S
F11313□ S F11318□ S
G△1303□ S G△1306□ S G△1309□ S
LC 130 130 130 130 130 130 130
LZ 9 9 9 9 9 9 9
LA 145 145 145 145 145 145 145
S
)
(
.
22
0
0130


)
(
.
22
0
0130


)
(
.
22
0
0130


)
(
.
22
0
0130


)
(
.
22
0
0130


)
(
.
22
0
0130


)
(
.
22
0
0130


LB
)
(
.
110
0
0350


)
(
.
110
0
0350


)
(
.
110
0
0350


)
(
.
110
0
0350


)
(
.
110
0
0350


)
(
.
110
0
0350


)
(
.
110
0
0350


LL
(without brake)
139.5 152.5 187.5 202 147.5 147.5 163.5
LL
(with brake)
168 181 -- -- 183.5 183.5 198
LS 47 47 47 47 47 47 47
LR 55 55 55 55 55 55 55
LE 6 6 6 6 6 6 6
LG 11.5 11.5 11.5 11.5 11.5 11.5 11.5
LW 36 36 36 36 36 36 36
RH 18 18 18 18 18 18 18
WK 8 8 8 8 8 8 8
W 8 8 8 8 8 8 8
T 7 7 7 7 7 7 7
TP
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
NOTE
1) Dimensions are in millimeters.
2) Dimensions and weights might be revised without prior notice.
3) Box, (□) represents the shaft end/ brake or the number of oil seal.
4) The boxes (ᇞ) in the model names are for encoder resolution types
(ᇞ=1: Incremental encoder, 20-bit; ᇞ=2: Incremental encoder, 17-bit).
