Chapter 12 Setting of Motor Parameters ASDA-A2R Series
12-8 Revision December, 2014

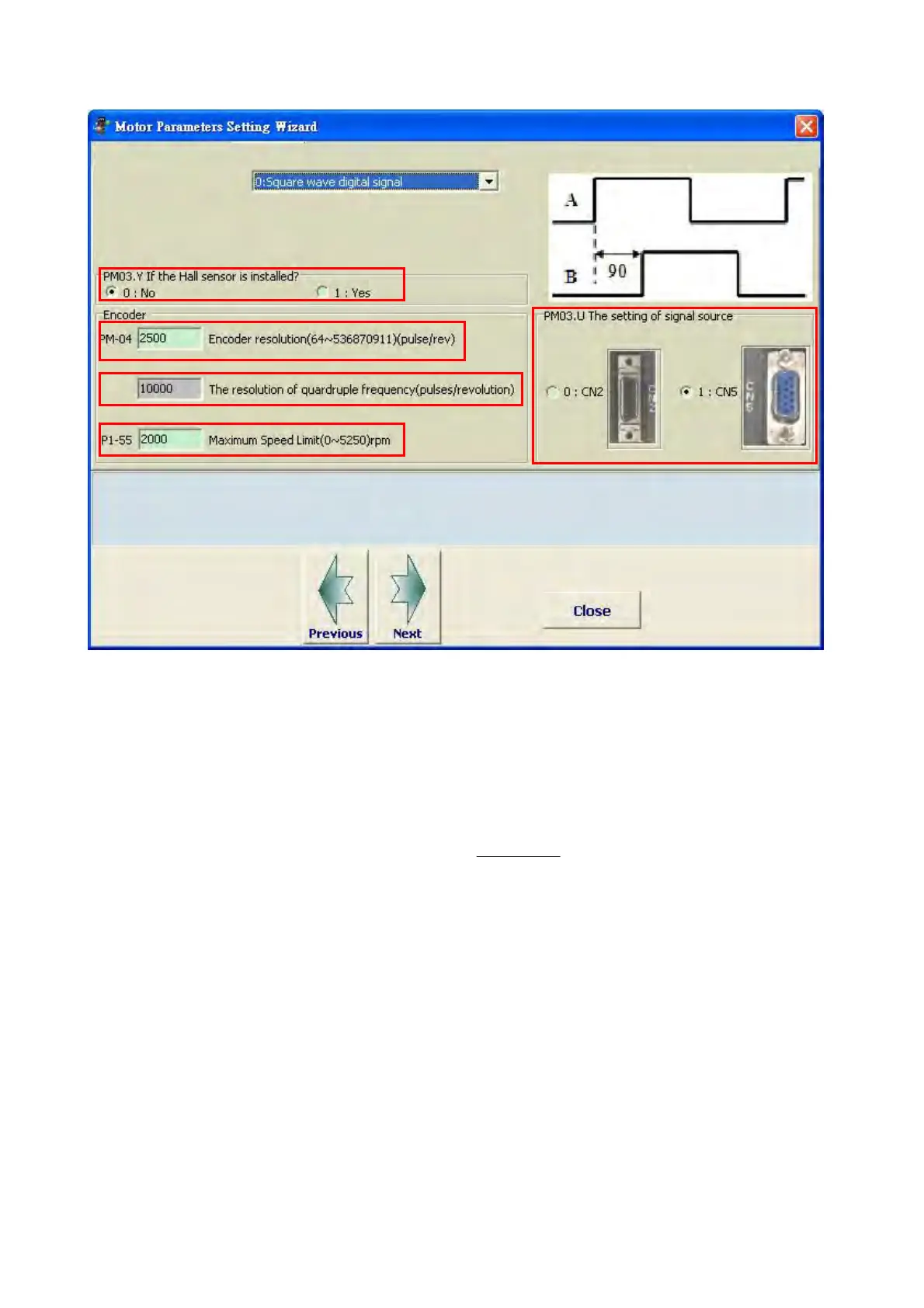

STEP 5.1.1: The setting of square wave digital signal
1. If the Hall sensor is installed: Select if the motor is installed Hall sensor.
2. The setting of signal source: Select the feedback signal source, CN2 or CN5
3. Encoder resolution (signal before quadrature process): The pulse number in one cycle
of motor feedback; unit:
revpulse/
4. The resolution of quadruple frequency: It is the read-only value. Value = PM-04*4; Unit:
revcount /
5. The maximum speed limit: The maximum speed limit of mechanism. Unite: rpm; range:
0~PM-32 (motor maximum speed)*1.05 or
04
60*10*5
6
PM
(take the minimum value)
1
2
3
4
5
To Next Page
