Delta ASD-A2R-1B43 Series User Manual

Chapter 12 Setting of Motor Parameters ASDA-A2R Series
Revision December, 2014
12-9

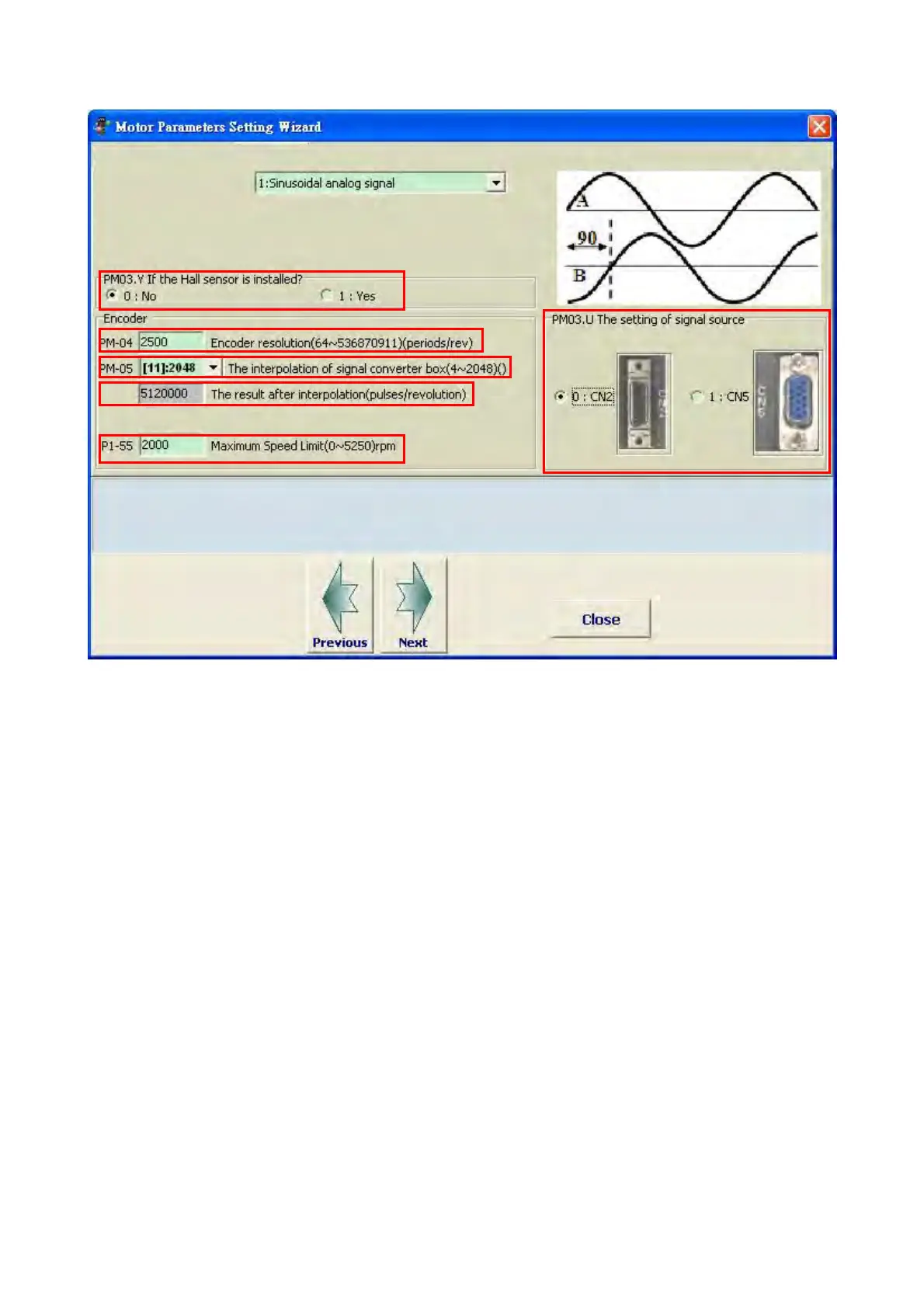

STEP 5.1.2: The setting of sinusoid analog signal
1. If the Hall sensor is installed: Select if the motor is installed Hall sensor.
2. The setting of signal source: Its signal source is from CN2 port.
3. Encoder resolution (signal before quadrature process): The pulse number in one cycle
of motor feedback; unit:
revperiod /
4. The interpolation of signal converter box: Setup the interpolation of signal converter box.
It fine-cuts the sinusoid analog signal and transforms the signal into square wave signal
which also enhances the resolution.
5. The result after interpolation: It is the read-only value. Value = PM-04*PM-05; unit:
revcount /
6. The maximum speed limit: The maximum speed limit of mechanism. Range: 0~6000;
unit: rpm
1 2
3
4
5
6
