Delta ASD-A2R-1B43 Series User Manual

Chapter 12 Setting of Motor Parameters ASDA-A2R Series
Revision December, 2014
12-25
25. Use UP and DOWN Keys to select the parameter
to PM-30
26. Press the SET Key to show the value.
27. Use SHIFT, UP and DOWN Keys to setup the
maximum current of the motor (unit: 0.01A; range:
0~the maximum current of the servo drive). Then,
press the SET Key to save it.
28. Use UP and DOWN Keys to select the parameter
to PM-03
29. Press the SET Key to show the value.
30. Use SHIFT, UP and DOWN Keys to setup the
encoder feedback type and press the SET Key to
save it. The parameter setting is as the followings.

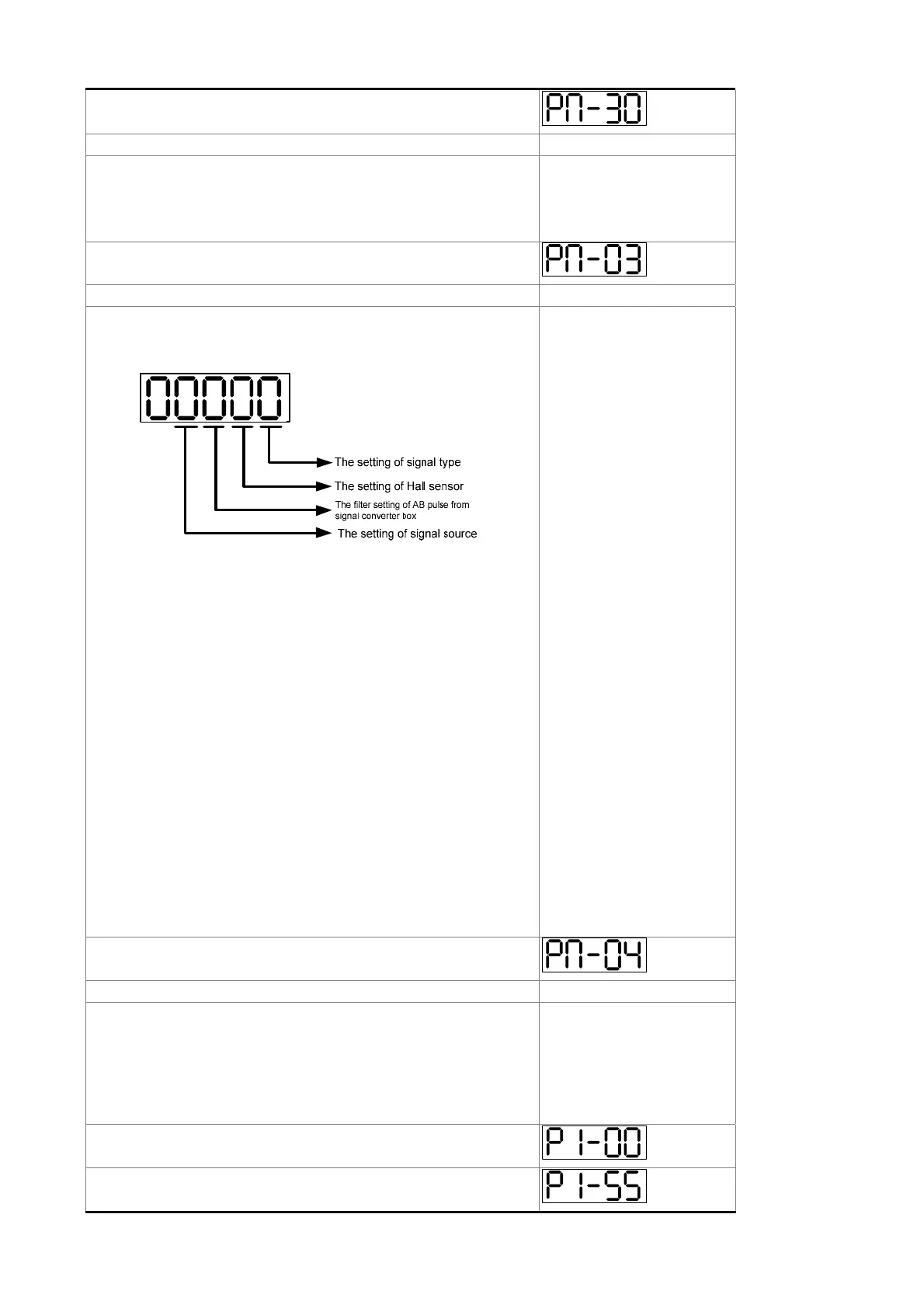

The setting of signal type:
0 = Square wave digital signal
1 = Sinusoid analog signal
The setting of Hall sensor:
0 = without Hall sensor
1 = with Hall sensor
The filter setting of AB pulse from signal converter
box:
0 = BYPASS
1 = 16M
2 = 8M
3 = 3M
The setting of signal source:
0 = comes from CN2
1 = comes from CN5
31. Use UP and DOWN Keys to select the parameter
to PM-04
32. Press the SET Key to show the value.
33. Use SHIFT, UP and DOWN Keys to setup the
encoder resolution (single-phase resolution). Then,
press the SET Key to save it.
Unit:
revpulse/
(square wave digital signal)
Unit:
revperiods /
(sinusoid analog signal)
34. Press the SHIFT Key to select the parameter group
mode to P1 group
35. Use UP and DOWN Keys to select the parameter
to P1-55
