Chapter 7 Optional AccessoriesCFP2000
7-17

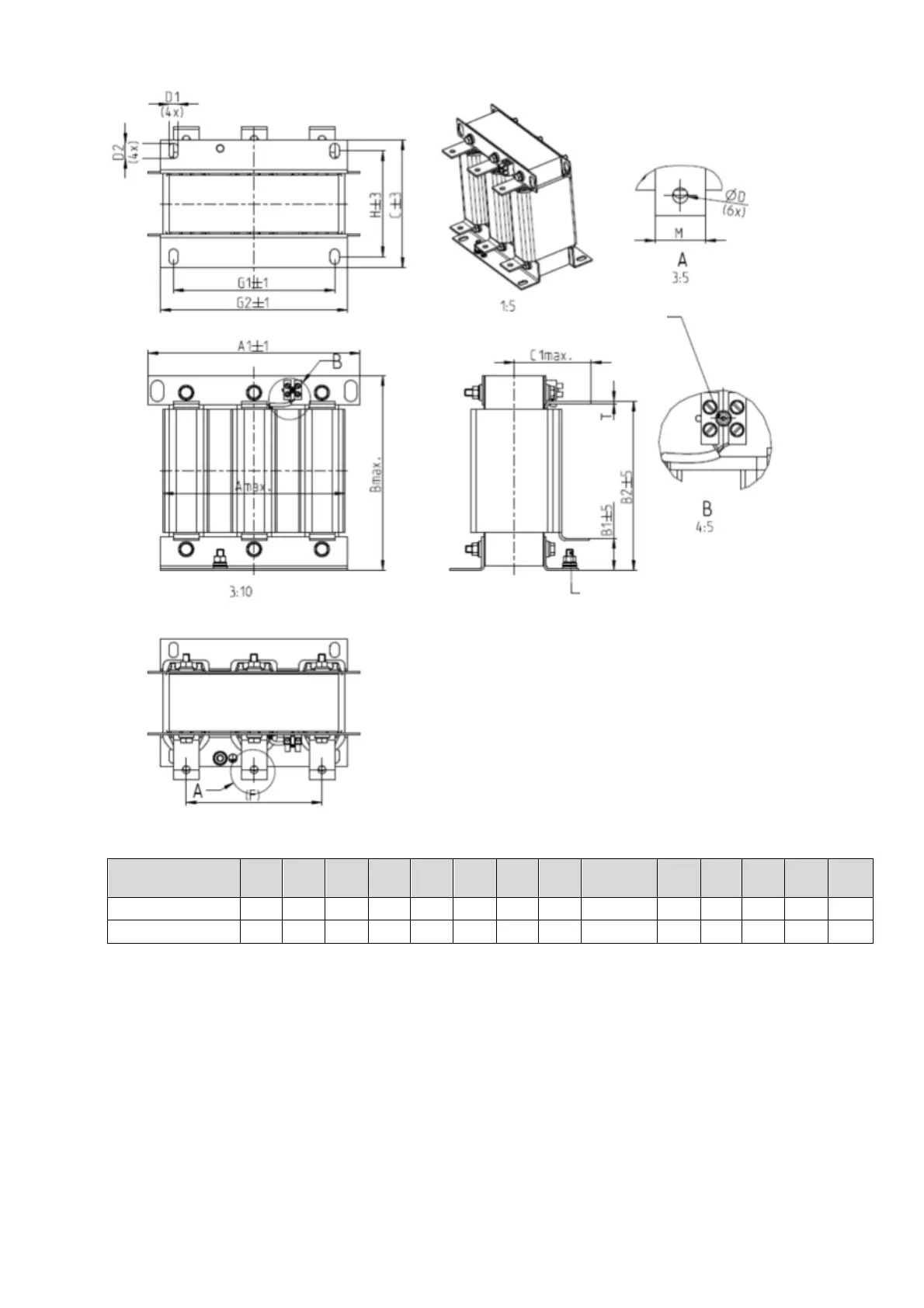

Input AC reactor
Delta part #
A A1 B B1 B2 C C1 D D1*D2 F G1 G2 H M*T
DR150AP162 240 250 245 40 200 151 105 9 11*18 160 190 220 125 20*3
DR180AP135 240 250 245 40 200 151 105 9 11*18 160 190 220 125 20*3
Terminals: 4 mm
2
Tightening torque: 8.2–10.2 kg-cm /
[7.1–8.9 lb-in] / [0.8–1.0Nm]
PE M8 x 23
Tightening torque: 6±0.3 Nm
Unit: mm
Table 7-13
Figure 7-19
To Next Page
