Chapter 1 IntroductionCFP2000
1-17

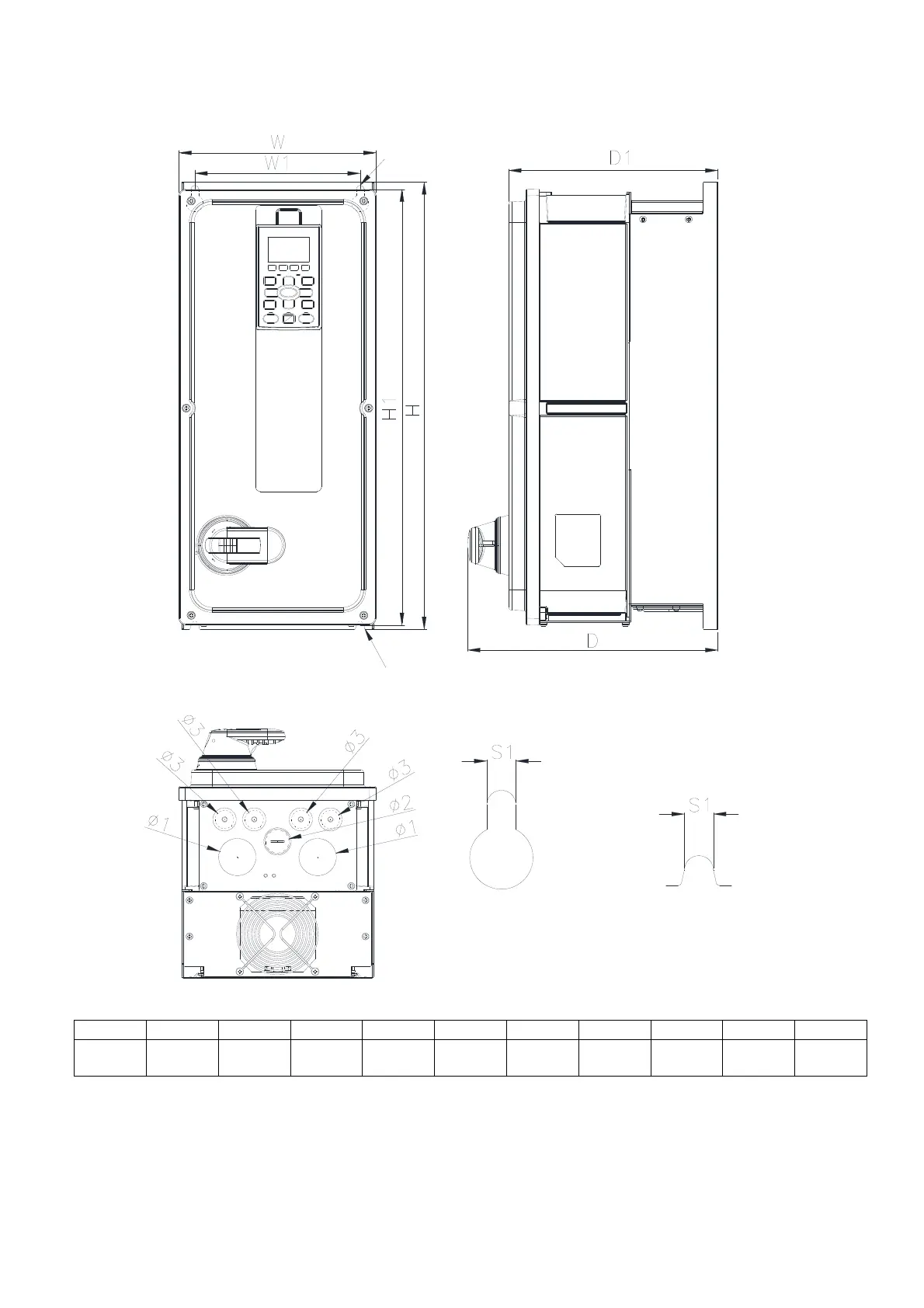

Frame B
B-2: VFD110FP4EA-52S, VFD150FP4EA-52S, VFD185FP4EA-52S, VFD220FP4EA-52S
Unit: mm [inch]
Frame W W1 H H1 D D1 S1 Φ1 Φ2 Φ3
B-2
216.0
[8.50]
181.0
[7.13]
491.4
[19.35]
479.0
[18.86]
274.0
[10.79]
229.0
[9.02]
8.5
[0.33]
41.0
[1.61]
25.4
[1.00]
20.3
[0.80]
Figure 1-19
Table 1-5
See Detail
A
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
