Chapter 1 IntroductionCFP2000
1-18

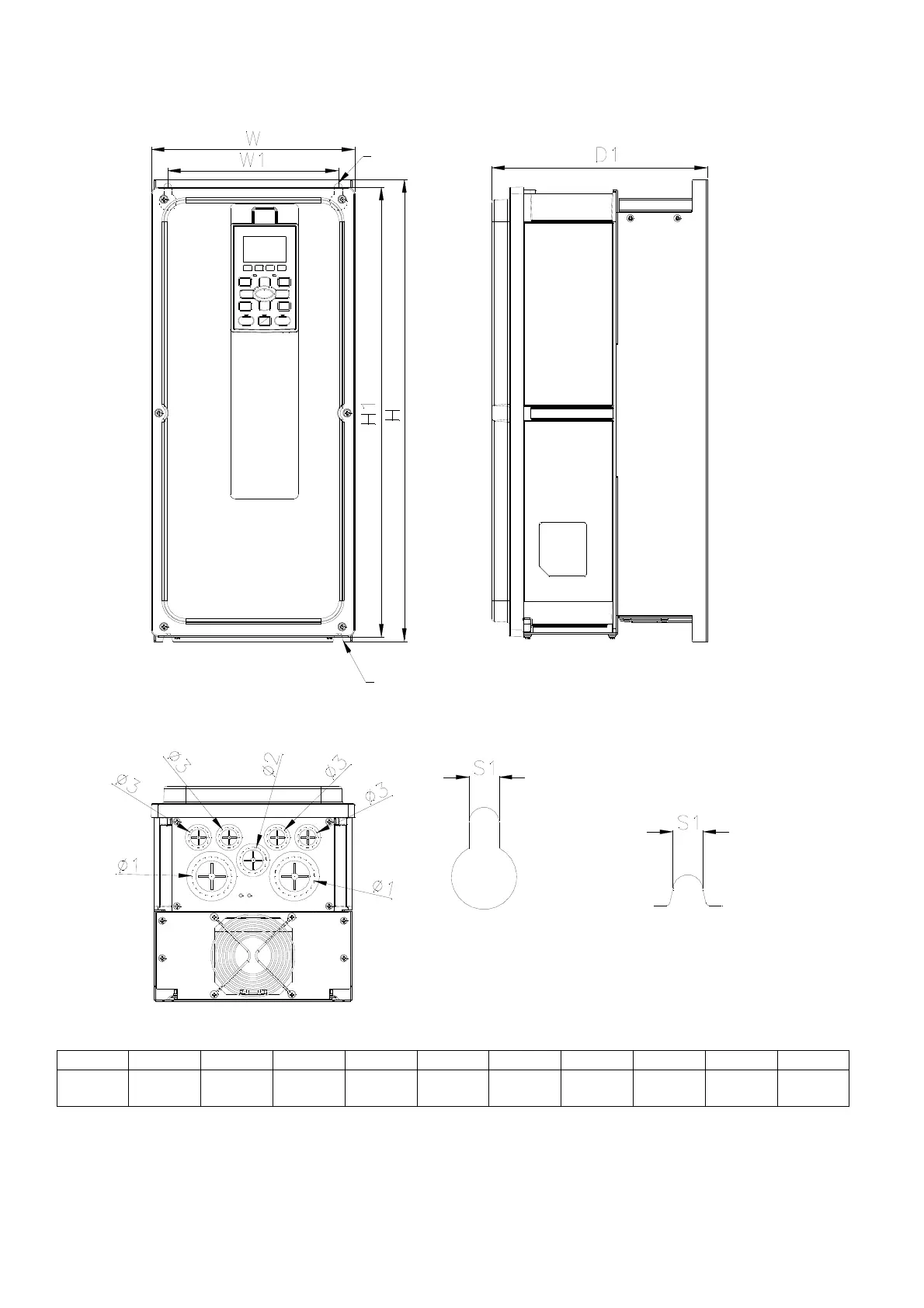

Frame B
B-3: VFD110FP4EA-41, VFD150FP4EA-41, VFD185FP4EA-41, VFD220FP4EA-41
Unit: mm [inch]
Frame W W1 H H1 D D1 S1 Φ1 Φ2 Φ3
B-3
216.0
[8.50]
181.0
[7.13]
491.4
[19.35]
479.0
[18.86]
-
229.0
[9.02]
8.5
[0.33]
41.8
[1.65]
28.0
[1.10]
22.0
[0.87]
Table 1-6
Figure 1-20
See Detail
A
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
