Input AC reactor
Delta part #
A B C D1*D2 H G1 G2 PE D
DR024AP881 160 175 115 6*12 90 107 75 M4
DR032AP660 195 200 145 6*12 115 122 85 M6
DR038AP639 190 200 145 6*12 115 122 85 M6
DR045AP541 190 200 145 6*12 115 122 85 M6
PE MD
Tightening torque: F Nm
Installing screw M5
Unit: mm

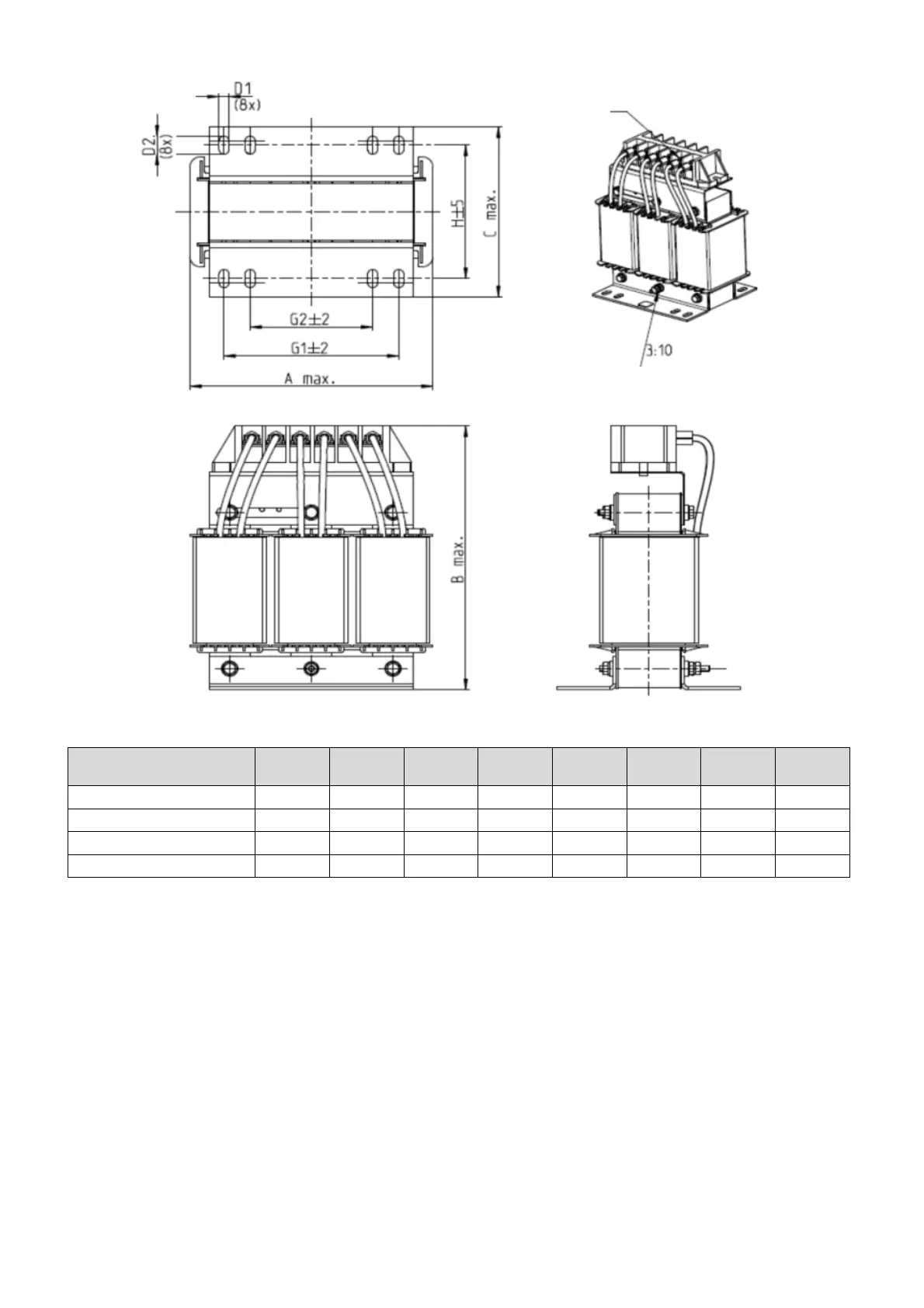

Figure 7-16
Table 7-10
