Delta CP2000 Series

Chapter 7 Optional AccessoriesCP2000
7-17
Unit: mm

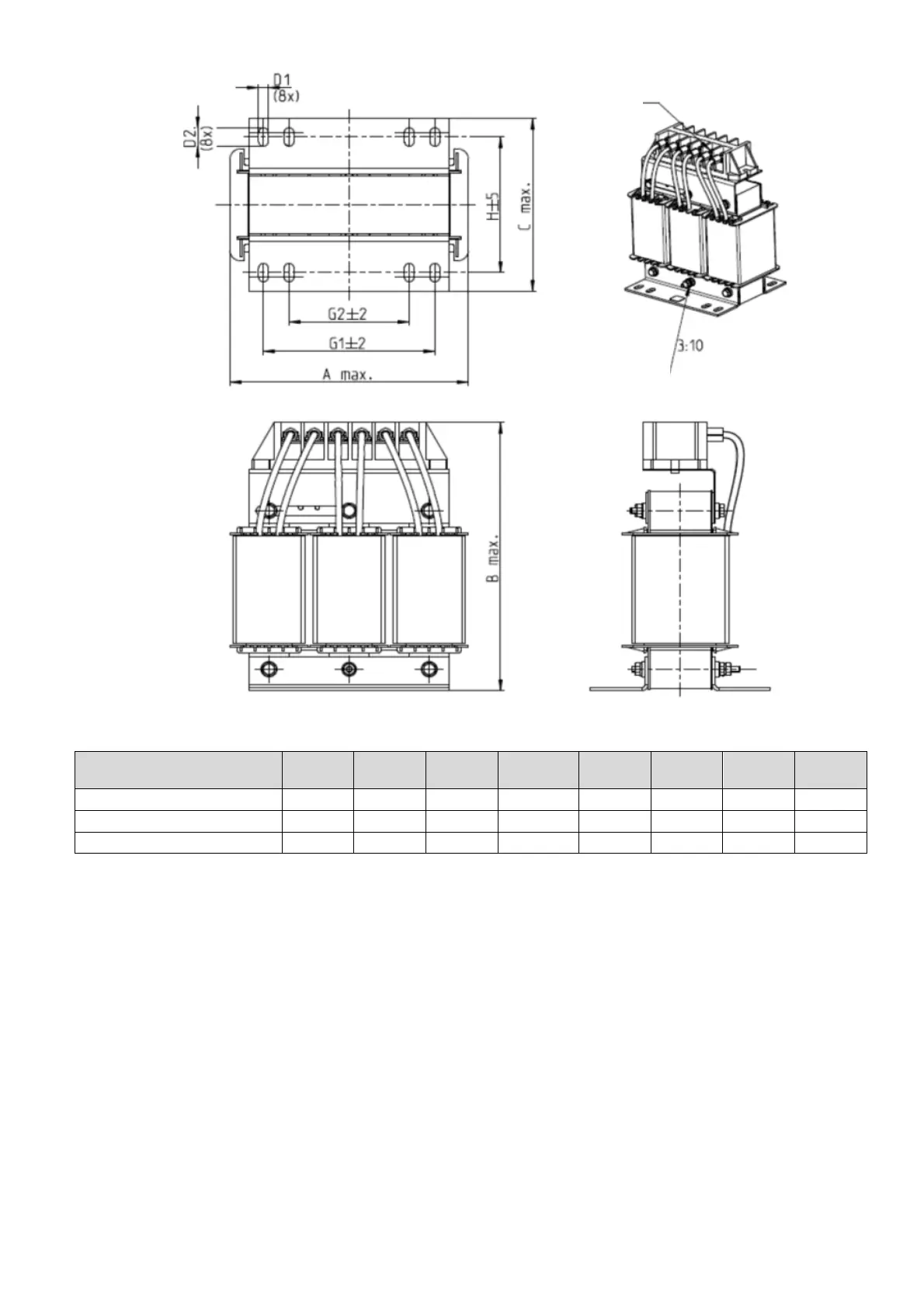

Input AC reactor
Delta part #
A B C D1*D2 H G1 G2 PE D
DR025AP215 130 195 100 6*12 65 80.5 60 M4
DR033AP163 130 195 100 6*12 65 80.5 60 M4
DR049AP163 160 200 125 6*12 90 107 75 M4
Installing screw M5
PE screw
Tightening torque: F Nm
Figure 7-8
Table 7-24
