Delta CP2000 Series User Manual

Chapter 7 Optional AccessoriesCP2000
7-36

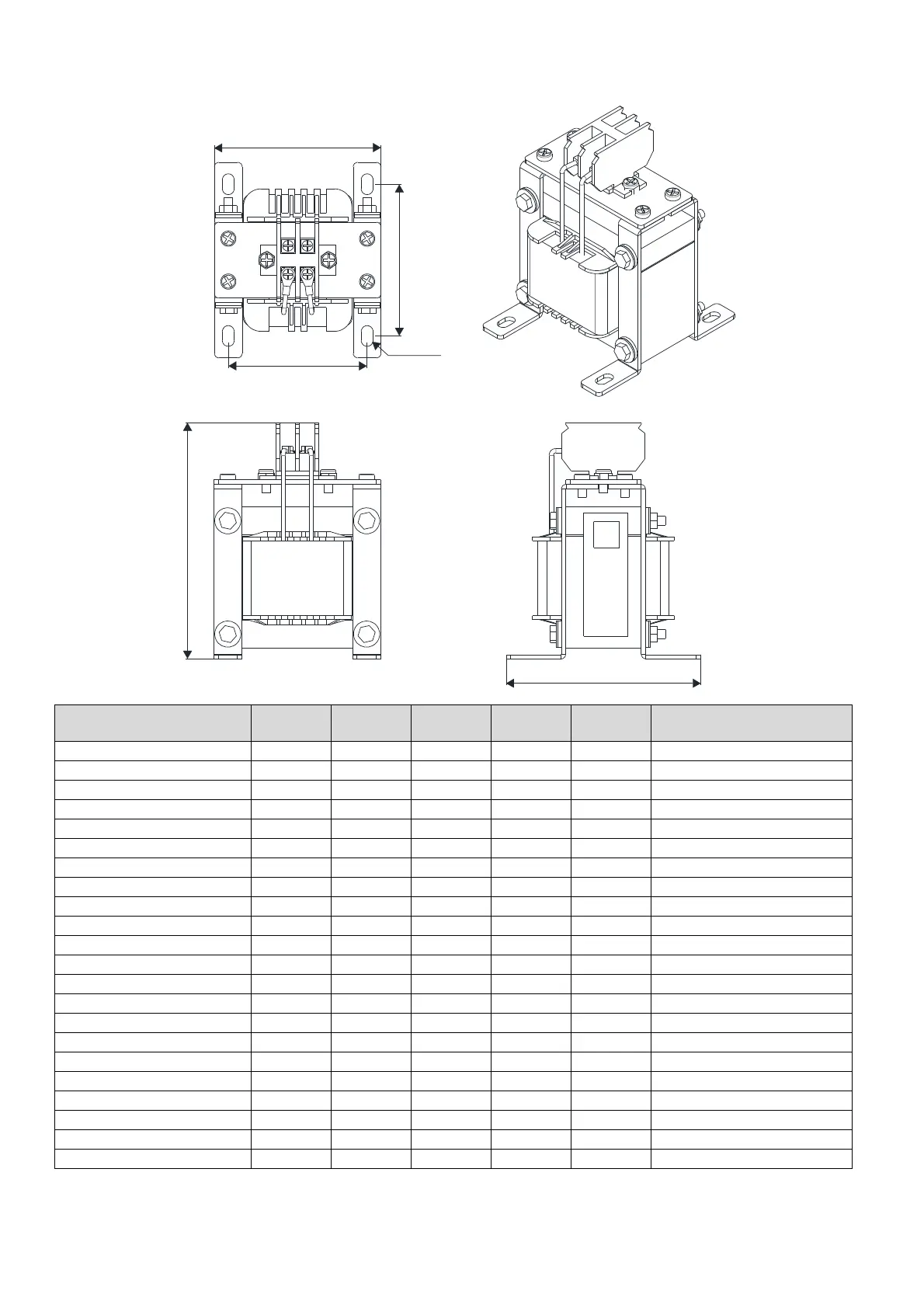

DC reactor dimension and specification:
C
A
D
E
B
R
DC reactor
Delta part #
A
[mm)
B
[mm]
C
[mm]
D
[mm]
E
[mm]
Dimensions [mm]
DR005D0585 79 78 112 64±2 56±2 9.5*5.5
DR008D0366 79 78 112 64±2 56±2 9.5*5.5
DR011D0266 79 92 112 64±2 69.5±2 9.5*5.5
DR017D0172 79 112 112 64±2 89.5±2 9.5*5.5
DR025D0117 99 105 128 79±2 82.5±2 9.5*5.5
DR033DP851 117 110 156 95±2 87±2 10*6.5
DR049DP574 117 120 157 95±2 97±2 10*6.5
DR065DP432 117 140 157 95±2 116.5±2 10*6.5
DR075DP391 136 135 178 111±2 112±2 10*6.5
DR090DP325 136 135 179 111±2 112±2 10*6.5
DR003D1870 79 78 112 64±2 56±2 9.5*5.5
DR004D1403 79 92 112 64±2 69.5±2 9.5*5.5
DR006D0935 79 92 112 64±2 69.5±2 9.5*5.5
DR009D0623 79 112 112 64±2 89.5±2 9.5*5.5
DR010D0534 99 93 128 79±2 70±2 9.5*5.5
DR012D0467 99 105 128 79±2 82.5±2 9.5*5.5
DR018D0311 117 110 144 95±2 87±2 10*6.5
DR024D0233 117 120 144 95±2 97±2 10*6.5
DR032D0175 117 140 157 95±2 116.5±2 10*6.5
DR038D0147 136 135 172 111±2 112±2 10*6.5
DR045D0124 136 135 173 111±2 112±2 10*6.5
DR060DP935 136 150 173 111±2 127±2 10*6.5
Figure 7-25
Table 7-44

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
