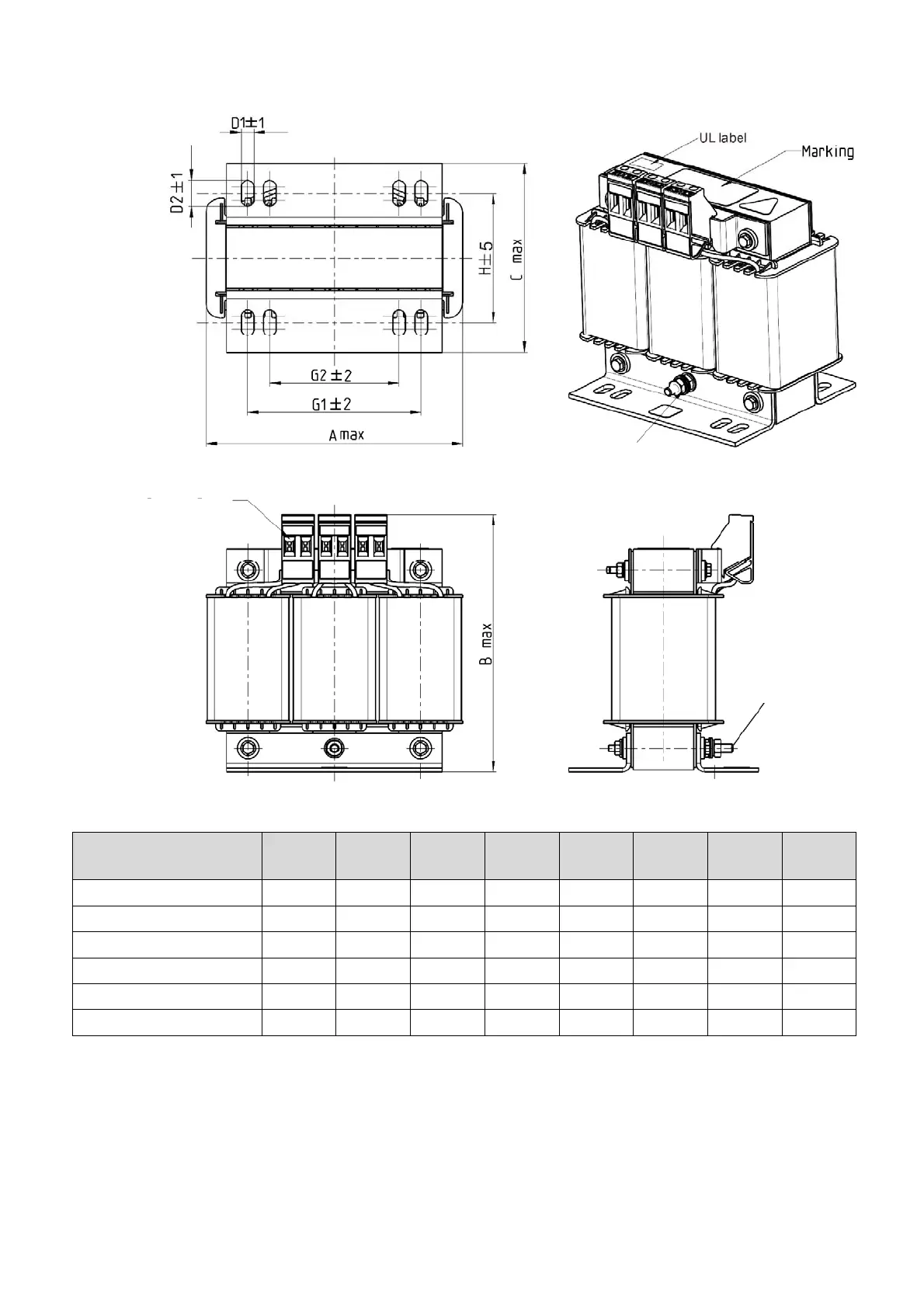

AC output reactor dimensions and specification:
Output AC reactor Delta
part #
A B C D1*D2 E G1 G2 PE D
DR005L0254 96 110 70 6*9 42 60 40 M4
DR008L0159 120 135 96 6*12 60 80.5 60 M4
DR011L0115 120 135 96 6*12 60 80.5 60 M4
DR017LP746 120 135 105 6*12 65 80.5 60 M4
DR025LP507 150 160 120 6*12 88 107 75 M4
DR033LP320 150 160 120 6*12 88 107 75 M4
Torque: 6.1–8.2 kg-cm / [5.3–7.1 lb-in] / [0.6–0.8 Nm]
Torque: 10.2–12.3 kg-cm / [8.9–10.6 lb-in] /
[1.0–1.2 Nm]
PE Screw
Screw length must
not interfere with
the mounting holes
Unit: mm
Figure 7-27
Table 7-50

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
