Delta CP2000 Series User Manual

Chapter 7 Optional AccessoriesCP2000
7-43
Output AC reactor Delta
part #
A A1 B B1 B2 C C1 D1*D2 E G1 H M*T
DR075LP170 240 228 215 44 170 151 100 7*13 152 176 85 20*3
DR090LP141 240 228 215 44 170 151 100 7*13 152 176 85 20*3
DR105LP106 240 228 215 44 170 165 110 7*13 152 176 97 20*3
DR146LP087 240 228 240 45 202 165 110 7*13 152 176 97 30*3
DR180LP070 250 240 250 46 205 175 110 11*18 160 190 124 30*5
DR215LP059 250 240 275 51 226 180 120 11*18 160 190 124 30*5
Unit: mm

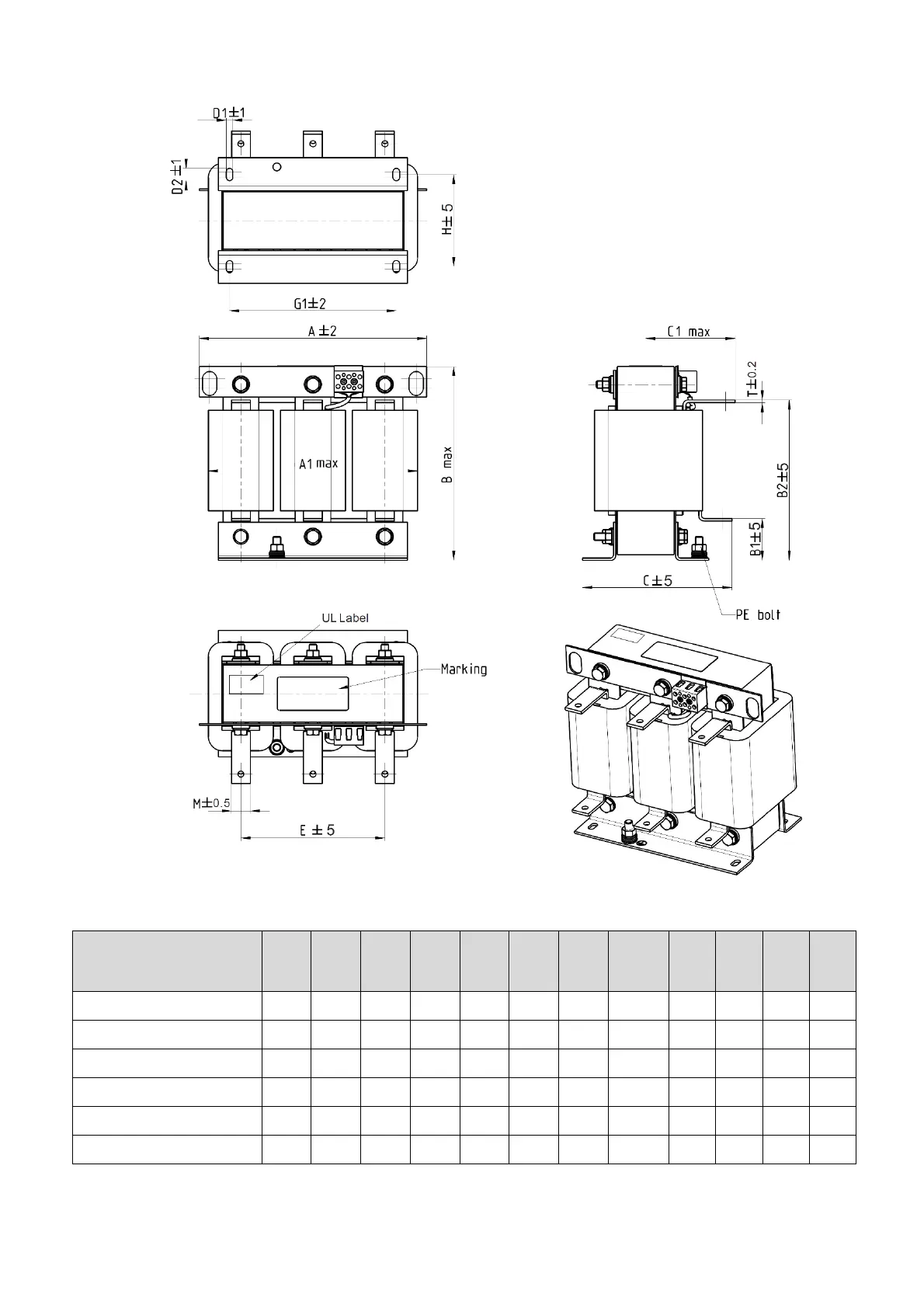

Figure 7-29
Table 7-52

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
