Delta CP2000 Series

Chapter 7 Optional AccessoriesCP2000
7-102
Frame G
Fan model『MKC-GFKM』Heat Sink Fan
Applicable model
VFD2200CP43A-00; VFD2200CP43A-21; VFD2800CP43A-00; VFD2800CP43A-21; VFD2500CP63A-00;
VFD2500CP63A-21; VFD3150CP63A-00; VFD3150CP63A-21;

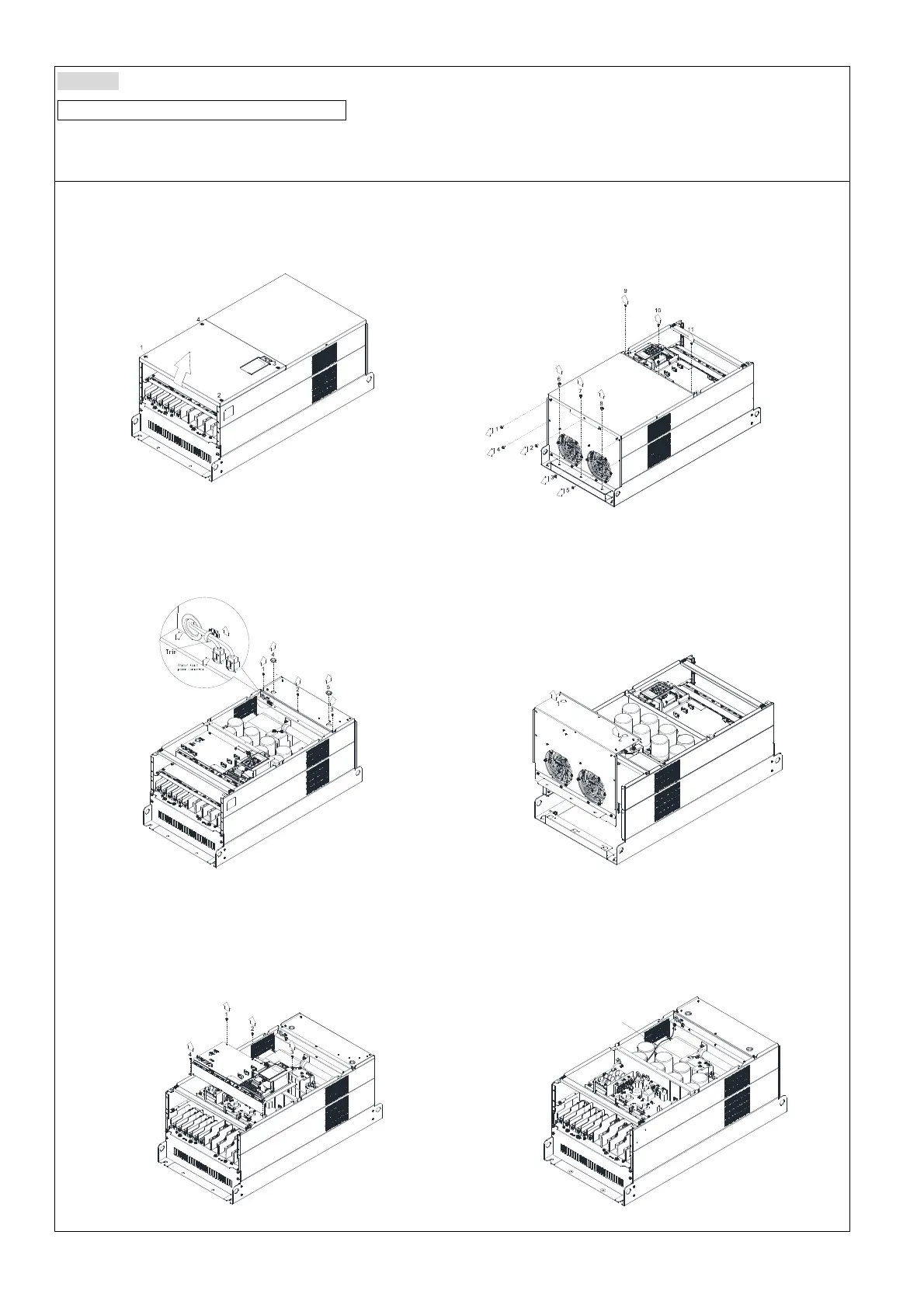

1. Loosen the screw (figure 1) and remove the cover.
Screw torque: 12–15 kg-cm / [10.4–13.1 Ib-in.] /
[1.2–1.5 Nm]
Figure 1
2. For 1–8 shown in the figure 2: Loosen the screws
Screw M6 torque: 35–40 kg-cm / [30.4–34.7 Ib-in.] /
[3.4–3.9 Nm]
3. For 9–10 shown in the figure 2: Loosen the screws
and remove the cover. Screw M4 torque:
14–16
kg-cm / [12.2–13.9 Ib-in.] / [1.4–1.6 Nm]
Figure 2
4. Loosen screw 1–3 and remove the protective ring (as
shown in figure 3) Screw torque:
14–16 kg-cm /
[12.2–13.9 Ib-in.] / [1.4–1.6 Nm]
Figure 3
5. Lift the fan by putting your finger through the protective
holes, as indicates in 1 and 2 on the figure 4.
.
Figure 4
5. If you are switching new fan on old AC motor drive,
follow the steps below:
Loosen screws 1–5, remove the cover (as shown in
figure below). M4 screw torque: 14–16 kg-cm /
[12.2–13.9 lb-in] / [1.4–1.6 Nm]
Figure 5
6. Add cable model 3864483201 to connect the power
board and fan connector. (The cable 3864483201
goes with the fan as accessory.)
Figure 6
Cable 3864483201
