Delta CP2000 Series

Chapter 7 Optional AccessoriesCP2000
7-108

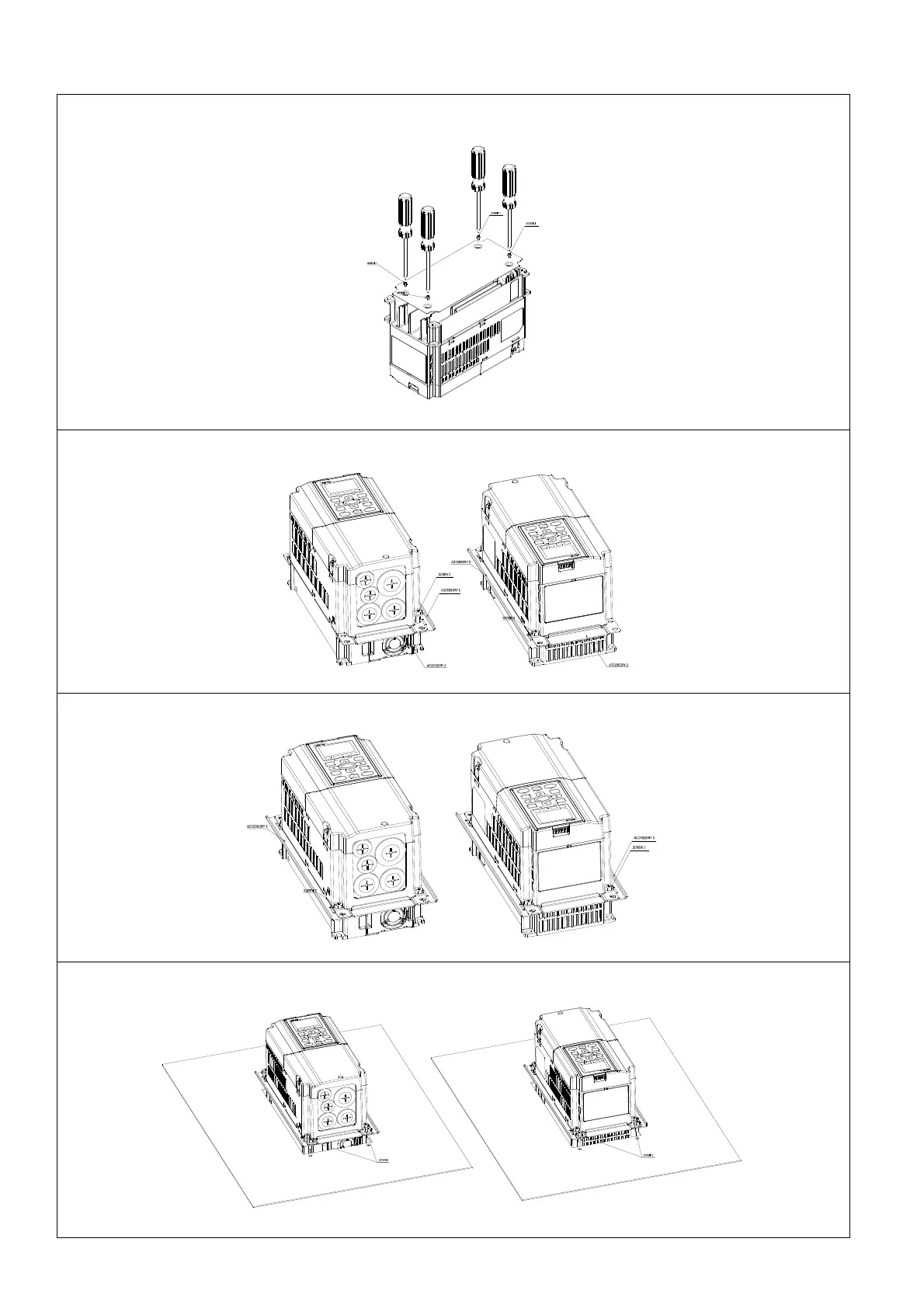

『MKC-AFM1』Installation
1. Install accessory 1 by fastening 4 of the screw 1(M3) (
figure 1). Screw torque: 6–8 kg-cm / [5.21–6.94 Ib-in.] /
[0.6–0.8 Nm]
Figure 1
2. Install accessory 2&3 by fastening 2 of the screw 2 (M6) (figure 2). Screw torque: 25–30 kg-cm / [21.7–26 Ib-in.]
/ [2.5–2.9 Nm]
Figure 2
3. Install accessory 2&3 by fastening 2 of the screw 2(M6) (figure 3). Screw torque: 25–30 kg-cm / [21.7–26 Ib-in.]
/ [2.5–2.9 Nm]
Figure 3
4. Plate installation, place 4 of the screw 2 (M6) (figure 4) through accessory 2&3 and the plate then fasten the
screws. Screw torque: 25–30 kg-cm / [21.7–26 Ib-in.] / [2.5–2.9 Nm]
Figure 4
