Chapter 8 Option CardsCP2000
8-4

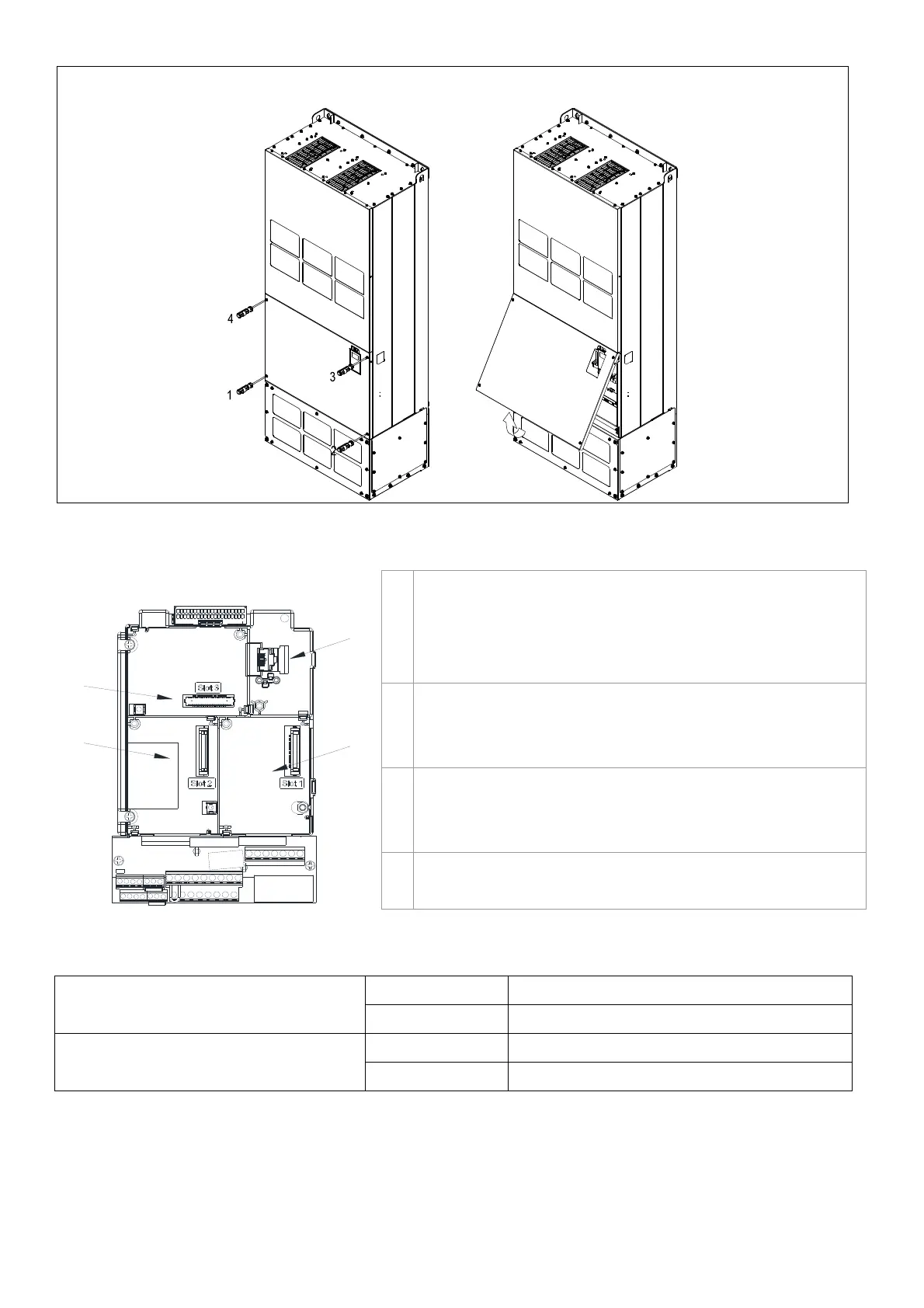

Frame H
Screw Torque: 14–16 kg-cm / [12.15–13.89 lb-in.] / [1.4–1.6 Nm]
8-1-2 Option Card Installation Location
Slot 1
Slot 3
Slot 2
1 RJ45 (Socket) for digital keypad KPC-CC01
Please refer to Section 10 for more details on digital keypad.
Please refer to Section 10 for more details on optional
accessory RJ45 extension cable.
2 Communication extension card (Slot 1)
CMC-PD01; CMC-DN01; CMC-EIP01; EMC-COP01;
CMC-PN01
3 I/O & Relay extension card (Slot 3)
EMC-D42A; EMC-D611A; EMC-A22A; EMC-R6AA;
EMC-BPS01
4 PG Card (Slot 2)
CP2000 do not support PG card.
Screws Specification for optional card terminals:
EMC-D42A; EMC-D611A; EMC-BPS01
Wire gauge 0.2–0.5mm
2
[26–20AWG ]
Torque 5 kg-cm / [4.4 Ib-in.] / [0.5 Nm]
EMC-R6AA
Wire gauge 0.2–0.5mm
2
[26–20AWG ]
Torque 8 kg-cm / [7 Ib-in.] / [0.8 Nm]
1
2
3
4
