Delta CP2000 Series User Manual

Chapter 8 Option CardsCP2000
8-23

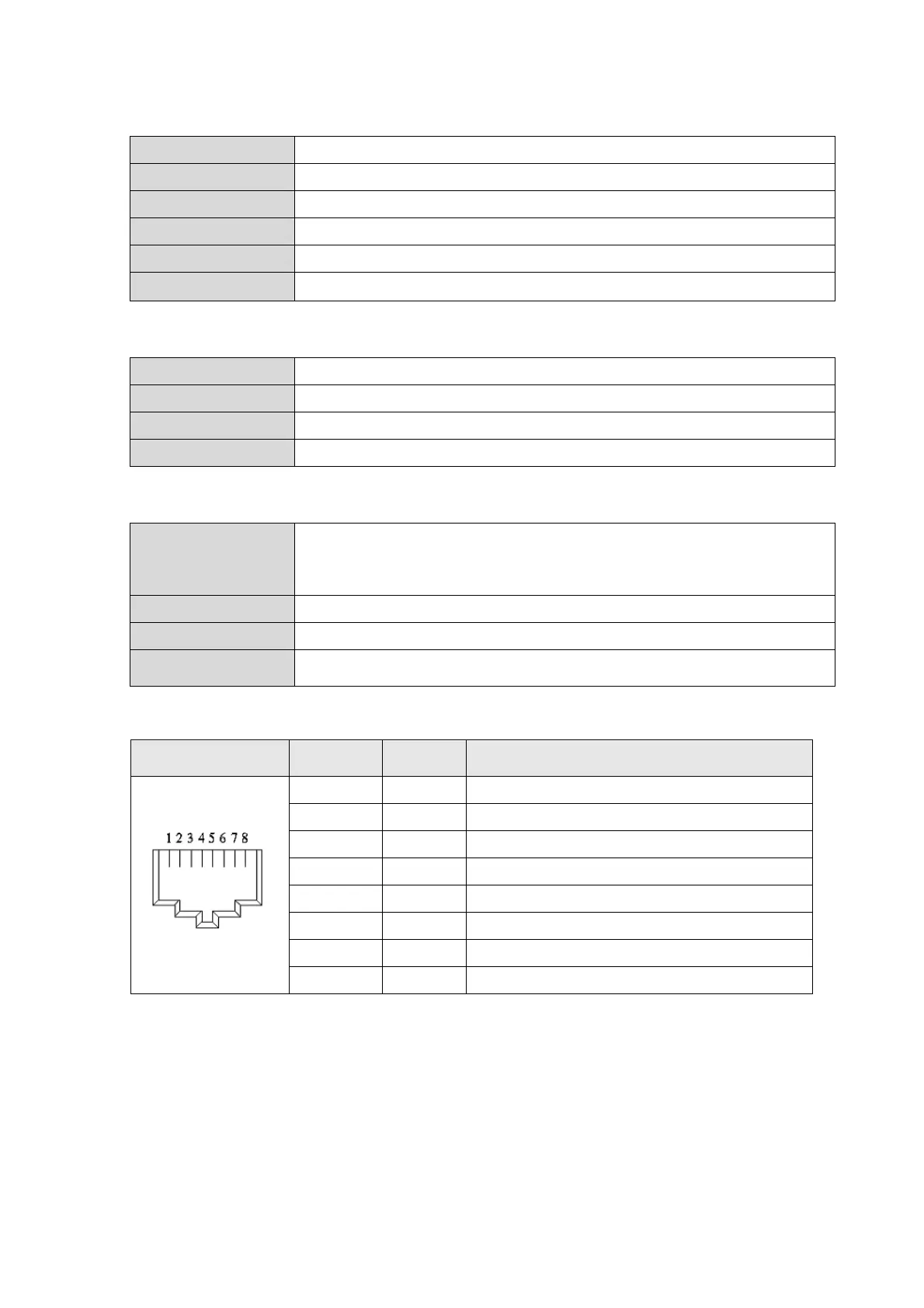

8-10-3 Specifications
Network Interface
Interface RJ45
Number of ports 2 ports
Transmission method IEEE 802.3
Transmission cable Category 5e shielding 100 M
Transmission speed 10/100 Mbps auto-negotiate
Network protocol PROFINET
Electrical Specification
Power supply voltage 5 V
DC
Power consumption 0.8 W
Insulation voltage 500 V
DC
Weight (g) 27
Environment
Noise immunity
ESD (IEC 61800-5-1, IEC 6100-4-2)
EFT (IEC 61800-5-1, IEC 6100-4-4)
Surge Test (IEC 61800-5-1, IEC 6100-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 6100-4-6)
Operation -10°C–50°C (temperature), 90% (humidity)
Storage -25°C–70°C (temperature), 95% (humidity)
Vibration / Shock
immunity
International standard: IEC 61800-5-1, IEC 60068-2-6 / IEC 61800-5-1,
IEC 60068-2-27
8-10-4 RJ45 PIN Definition
RJ45 PIN No. Signal Definition
1 Tx+ Positive pole for data transmission
2 Tx- Negative pole for data transmission
3 Rx+ Positive pole for data receiving
4 -- N/C
5 -- N/C
6 Rx- Negative pole for data receiving
7 -- N/C
8 -- N/C

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
