Delta CP2000 Series

Chapter 1 IntroductionCP2000
1-23

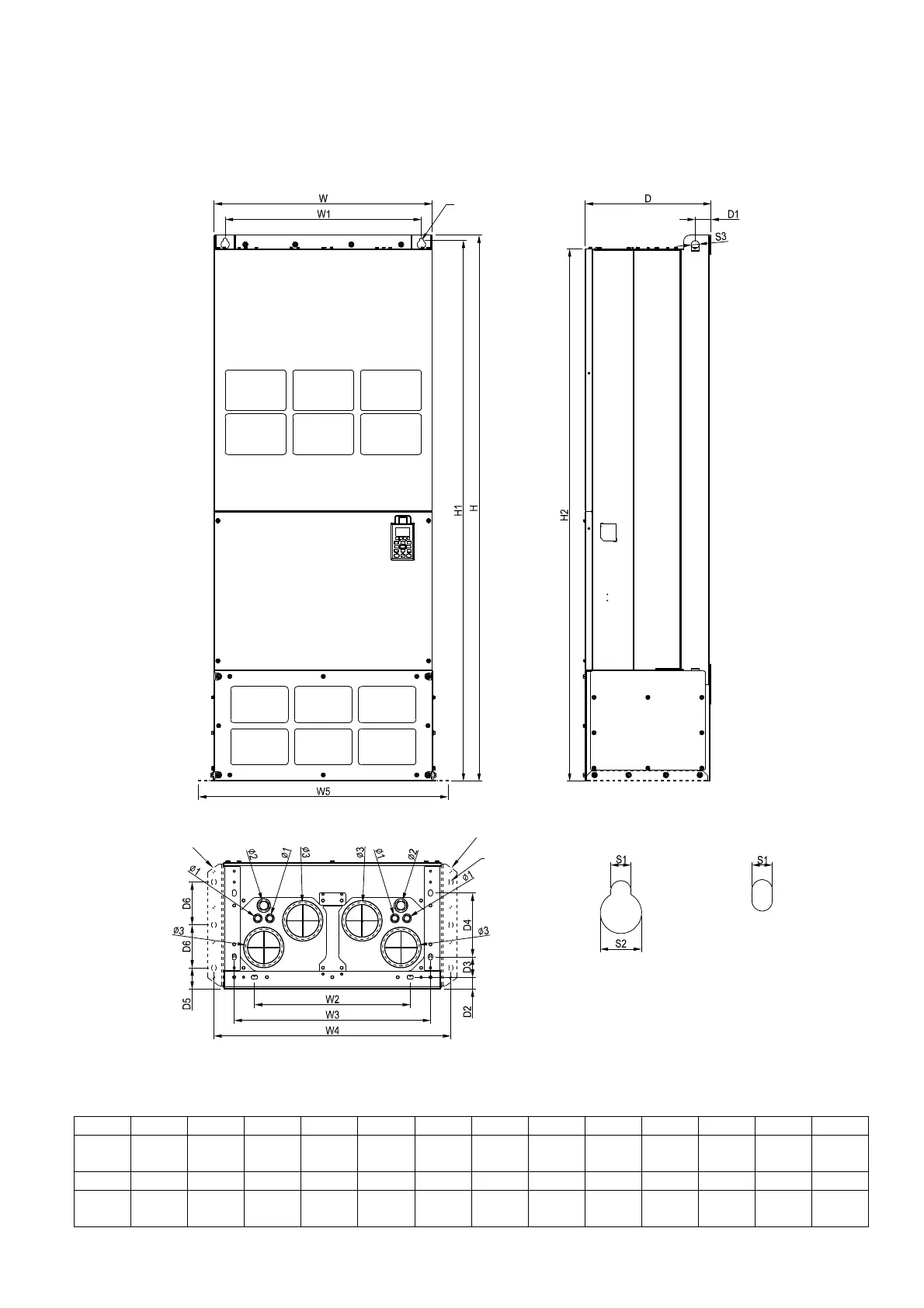

Frame H
H3: VFD3150CP43C-21; VFD3550CP43C-21; VFD4000CP43C-21; VFD5000CP43C-21;
VFD5600CP43C-21; VFD6300CP43C-21

Figure 1-29
Unit：mm [inch]
Frame W H D W1 W2 W3 W4 W5 W6 H1 H2 H3 H4
H3
700.0
[27.56]
1745.0
[68.70]
404.0
[15.91]
630.0
[24.80]
500.0
[19.69]
630.0
[24.80]
760.0
[29.92]
800.0
[31.5]
-
1729.0
[68.07]
1701.6
[66.99]
- -
Frame H5 D1 D2 D3 D4 D5 D6 S1 S2 S3 Φ1 Φ2 Φ3
H3 -
51.0
[2.00]
38.0
[1.50]
65.0
[2.56]
204.0
[8.03]
68.0
[2.68]
137.0
[5.40]
13.0
[0.51]
26.5
[1.04]
25.0
[0.98]
22.0
[0.87]
34.0
[1.34]
117.5
[4.63]
See Detail
A
Side fixing baffle plate
See Detail B
Side fixing baffle plate
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
