Chapter 3 UnpackingCP2000
3-4
Frame D (crate version)

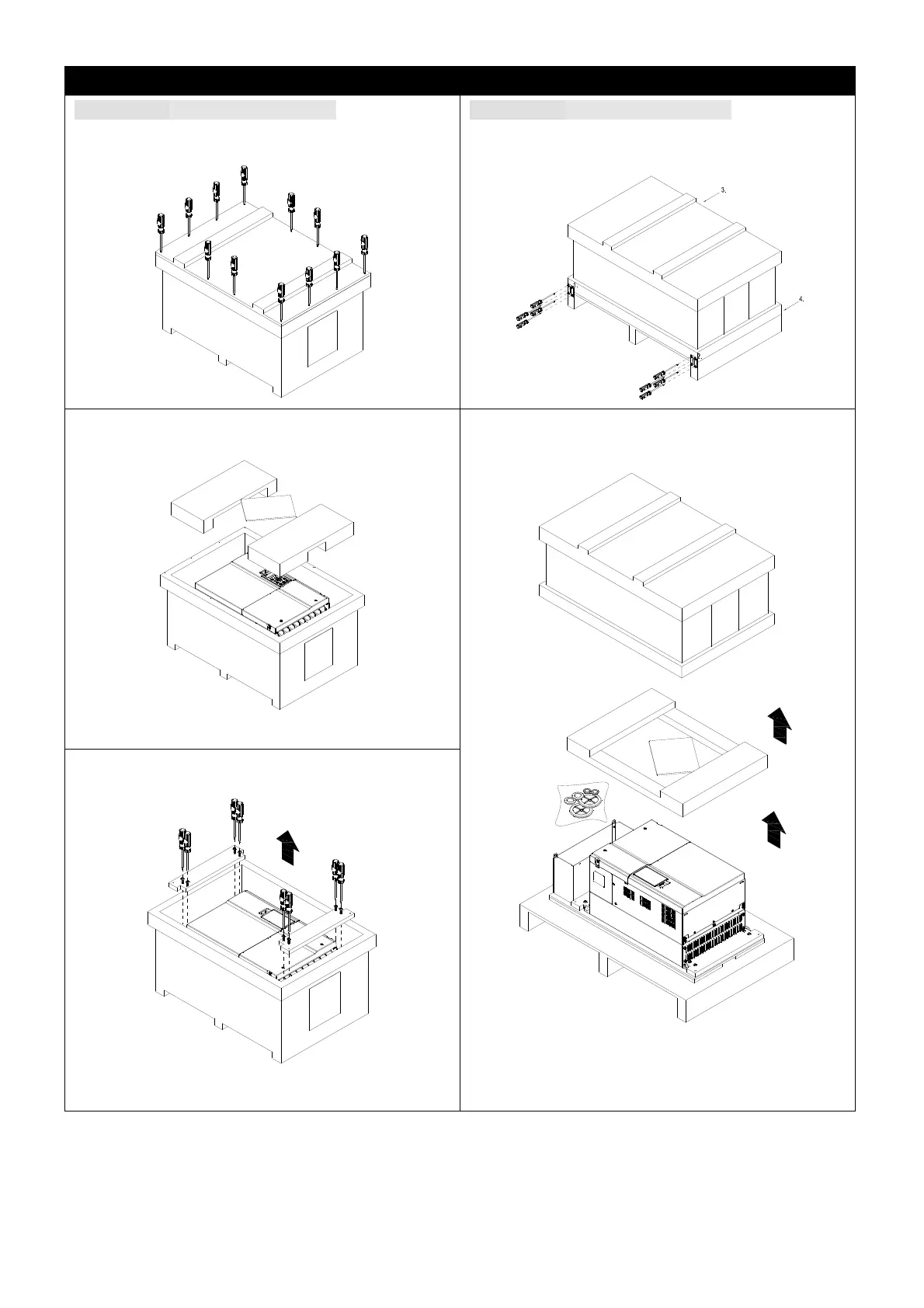

Unpacking 1 (VFDXXXCPXXX-00) Unpacking 2 (VFDXXXCPXXX-21)
Loosen the 12 screws to open the top cover of the
crate.
Loosen the 16 screws at the four corners of the
crate, and then remove the iron plates.
Take out the EPEs and the manual.
Remove the top cover, take out the EPEs, rubber
and the manual.
Loosen the eight screws fasten the drive on the
pallet, and then remove the wood plate.
Figure 3-12
Figure 3-11 Figure 3-7
Figure 3-9
Figure 3-8
To Next Page
