Delta CP2000 Series User Manual

Chapter 3 UnpackingCP2000
3-10
Frame G
Unpacking 1 (VFDXXXXCPXXA-00) Unpacking 2 (VFDXXXXCPXXA-21)
Remove the six buckles fixed on the crate with a
flat-head screwdriver, see the figure below.
1
2
3
4
5
6
Remove the six buckles fixed on the crate with a
flat-head screwdriver, see the figure below.
1
2
3
4
5
6
Remove the top cover, take out the EPEs and the
manual.
Remove the top cover, take out the EPEs, rubber
and the manual.
Loosen the five screws fasten the drive on the
pallet, see the figure below.
5
4
3
2
1
Loosen the 12 screws fasten the drive on the
pallet, and then remove the wood plates and the
conduit box.
wood plate4
1
wood plate3
wood plate2
12
10
8
6
9
7
11
5
4
2
3
wood plate1
wood plate5

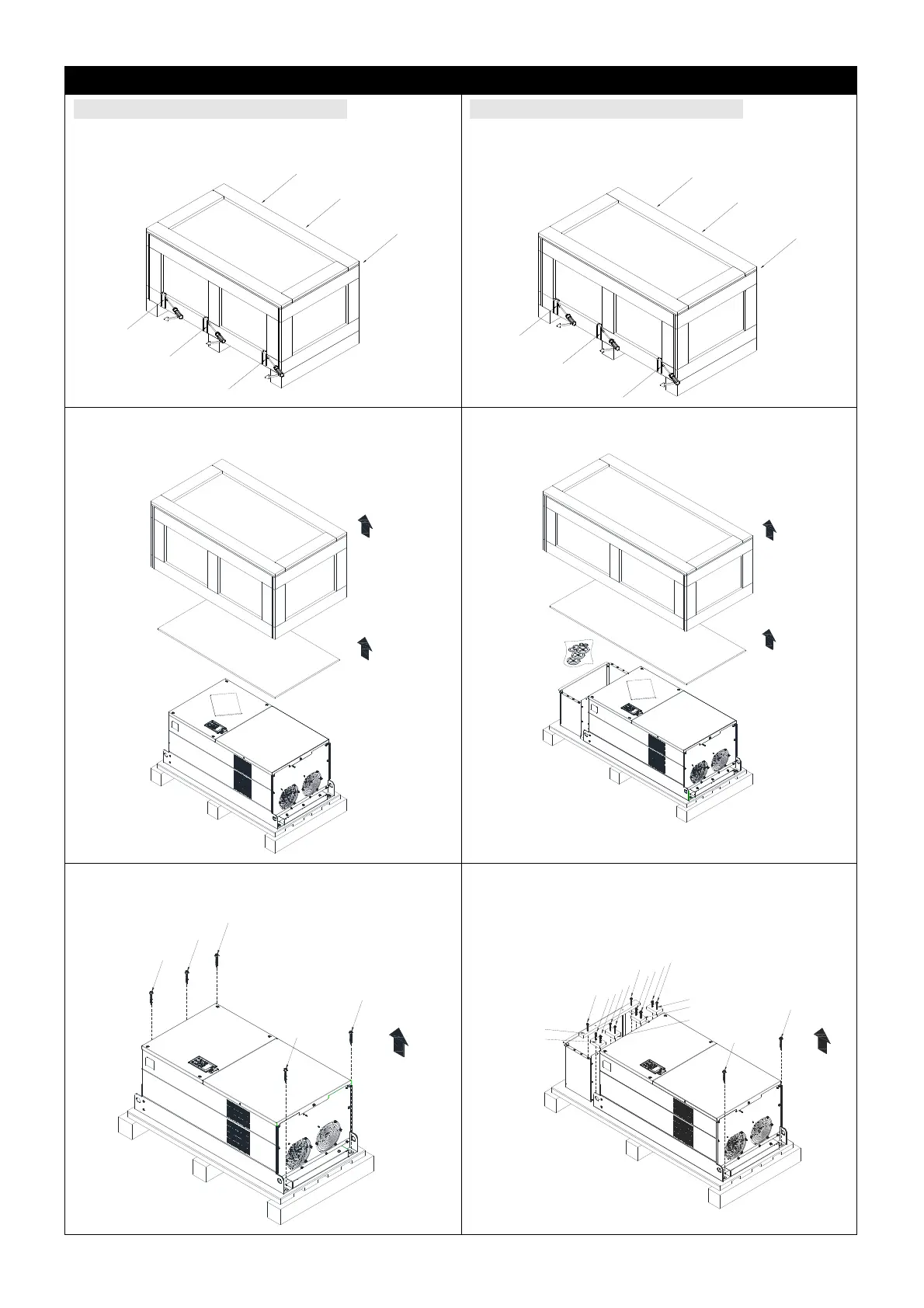

Figure 3-31
Figure 3-35
Figure 3-32 Figure 3-36
Figure 3-33
Figure 3-37
