Chapter 3 UnpackingCP2000
3-19
690V Frame H
Unpacking 2 (VFDXXXXCP63A-21)

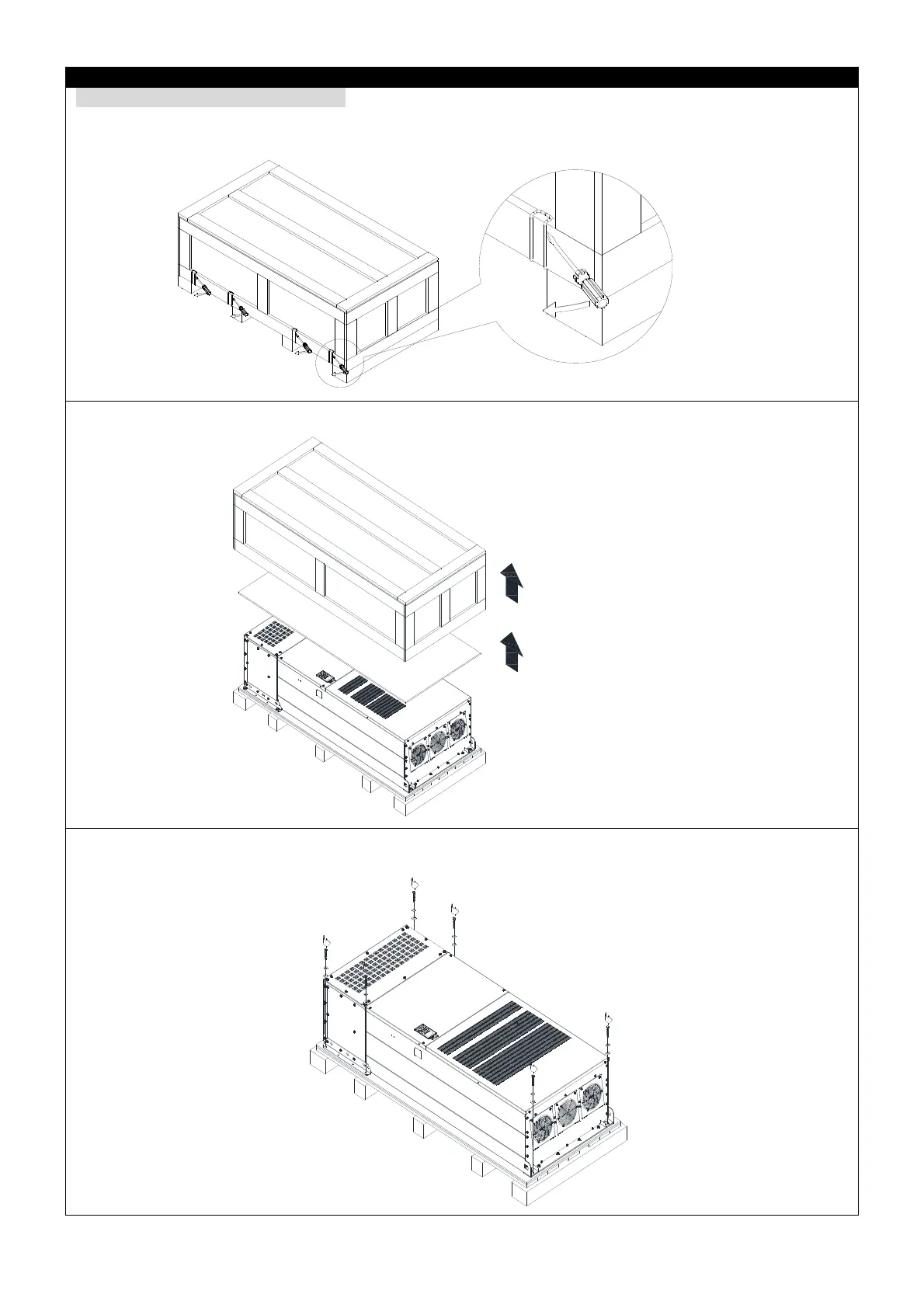

Remove the eight buckles fixed on the crate with a flat-head screwdriver, see the figure below.
Figure 3-63
Remove the top cover, take out the EPEs and the manual.
Figure 3-64
Loosen the six screws fasten the drive on the pallet, and then remove six metal washers and six plastic
washers. See the figure below.
Figure 3-65
