Delta CP2000 Series User Manual

Chapter 3 UnpackingCP2000
3-20

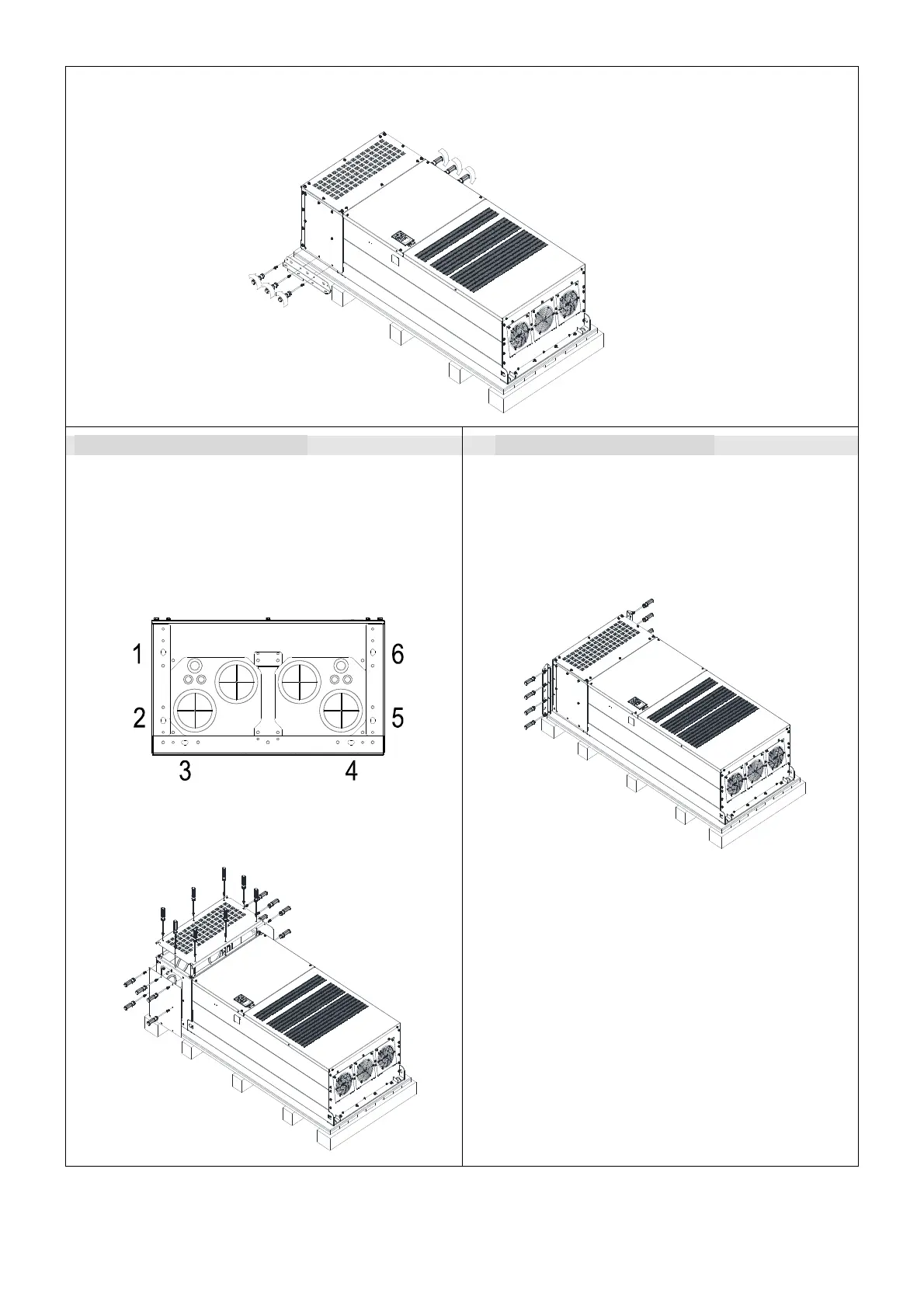

Loosen the six M6 screws and the iron plates (see the figure below). You can use the removed screws
and iron plates to fix the drive from the outside.
Figure 3-66
Fix the drive from the inside.
Loosen the 18 M6 screws and remove the covers
(see the figure 3-68). After fixing the drive and the
cover for cables (see the figure 3-67), fasten the
other covers back (see the figure 3-68)
Torque: 35–45 kg-cm / [30.38–39.06 lb-in.] /
[3.4–4.4 Nm]
Cover for cables (use M12 screws)
Fix the drive from the outside.
Loosen the eight M8 screws, and then use these
eight M8 screws to fix the iron plates (removed at
the last step) to the drive, see the figure below.
Torque: 150–180 kg-cm / [130.20–156.24 lb-in.] /
[14.7–17.6 Nm]
Figure 3-67
Figure 3-70
Figure 3-68

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
