Chapter 15 CANopen Overview│CP2000
15-22
ID
No.*

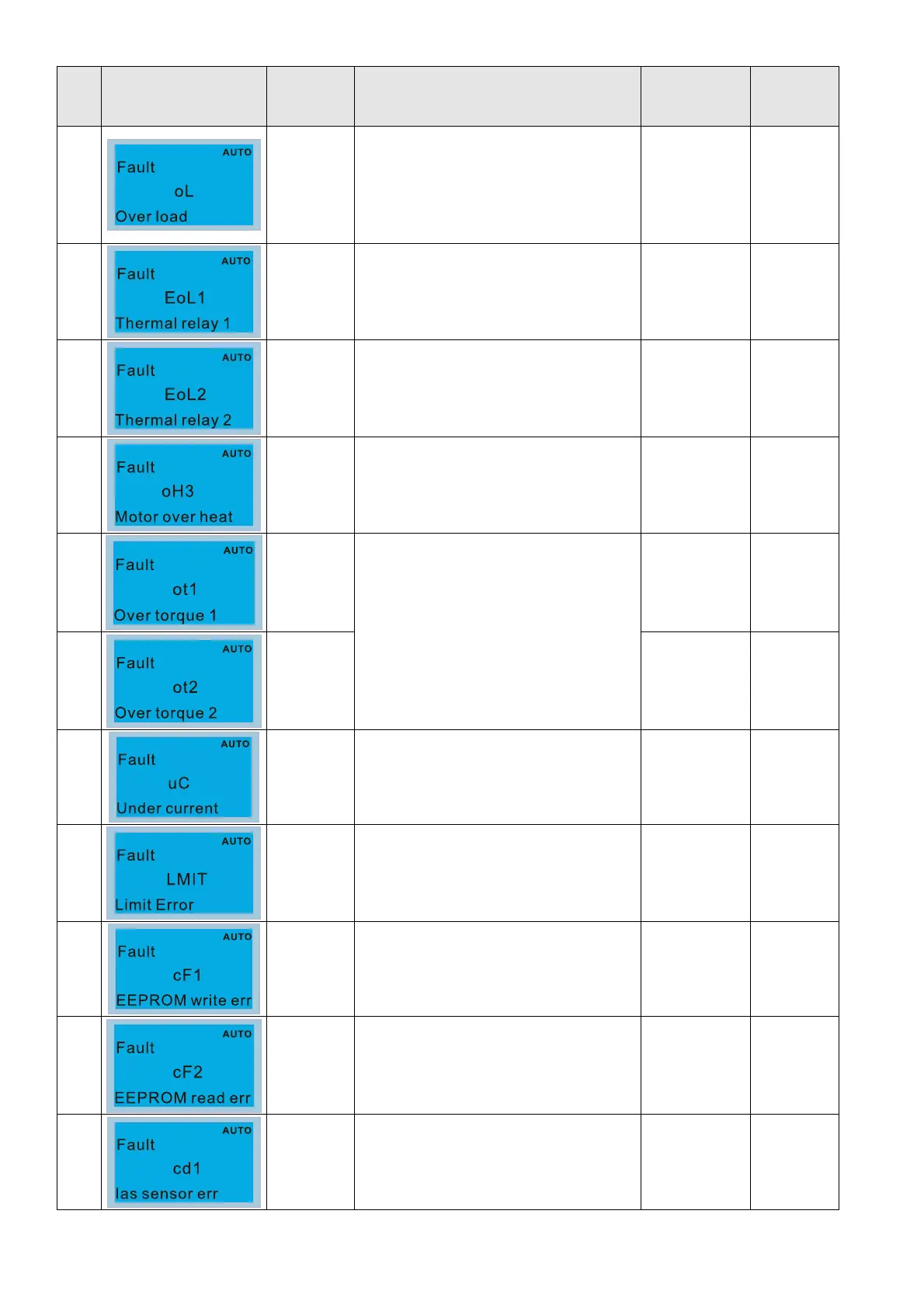

Display Fault code
Description
CANopen
fault register
(bit0–7)
CANopen
fault code
21
0015H
Overload; the AC motor drive detects
excessive drive output current.
NOTE: The AC motor drive can withstand up
to 150% of the rated current for a maximum of
60 seconds.
1 2310H
22
0016H
Electronic thermal relay 1 protection
1 2310H
23
0017H
Electronic thermal relay 2 protection
1 2310H
24
0018H
Motor overheating : the AC motor
drive internal temperature exceeds
the setting for Pr.06-30 (PTC level)
3 FF20H
26 001AH
When the output current exceeds the
over-torque detection level (Pr.06-07
or Pr.06-10) and exceeds Pr.06-08 or
Pr.06-11; when Pr.06-06 or Pr.06-09
is set as 2 or 4, the keypad displays
these two fault codes.
3 8311H
27
001BH 3 8311H
28
001CH
Low current
1 8321H
29
001DH Home limit error 1 7320H
30
001EH
Cannot program internal EEPROM
5 5530H
31
001FH
Cannot read internal EEPROM
5 5530H
33
0021H
U-phase current error
1 FF04H
