Delta CP2000 Series User Manual

Chapter 16 PLC Function Applications│CP2000
16-10

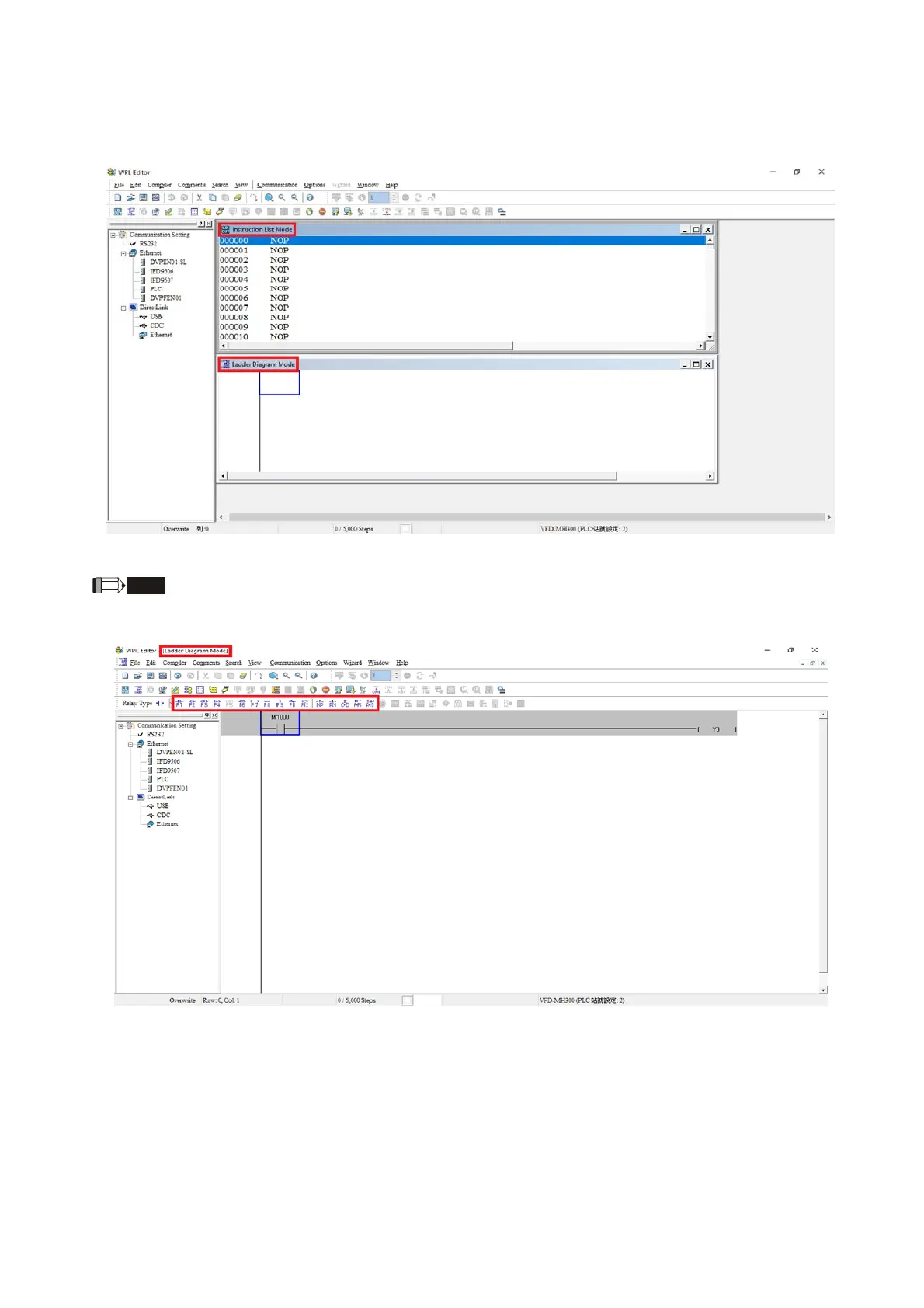

Step 5: Press Confirm after completing settings and begin program editing. There are two program
editing methods; you can choose whether to perform editing in the command mode or the
ladder diagram mode (see figure 16-8 below).
Figure 16-8
NOTE
In ladder diagram mode, you can perform program editing using the buttons on the
function icon row (see figure 16-9 below).
Figure 16-9

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
