Delta CP2000 Series User Manual

Chapter 16 PLC Function Applications│CP2000
16-19

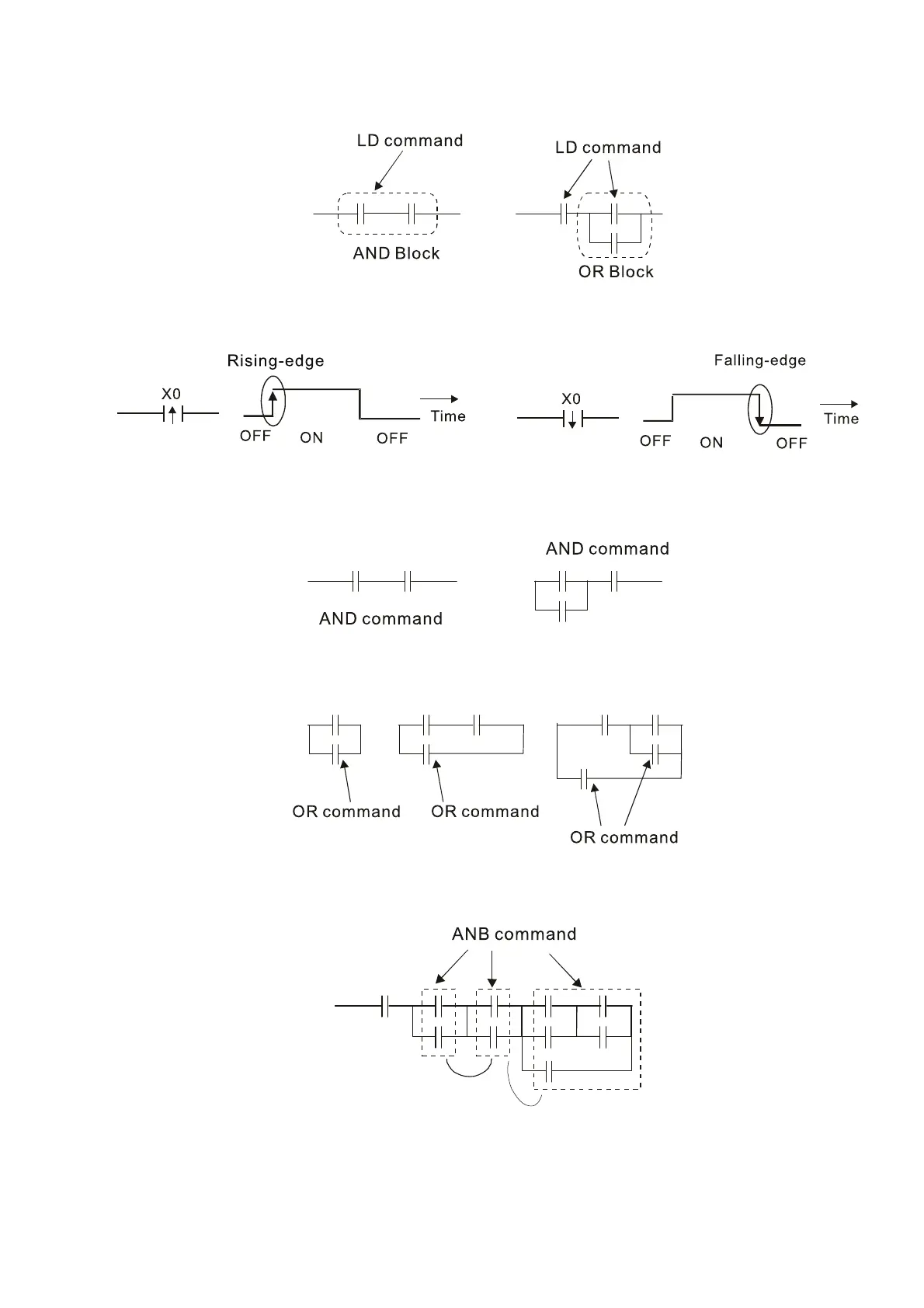

Explanation of basic structure of ladder diagrams
LD (LDI) command: An LD or LDI command is given at the start of a block.
LDP and LDF have this command structure, but there are differences in their action state. LDP, LDF
only act at the rising or falling edge of a conducting contact. (see figure below):
AND (ANI) command: A series configuration in which a single device is connected with one device
or a block.
ANDP, ANDF also have structures like this, but their action occurs at the rising and falling edge.
OR (ORI) command: A single device is connected with one device or a block.
ORP, ORF also have identical structures, but their action occurs at the rising and falling edge.
ANB command: A configuration in which one block is in series with one device or block.

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
