Delta CP2000 Series User Manual

Chapter 5 Main Circuit TerminalsCP2000
5-14

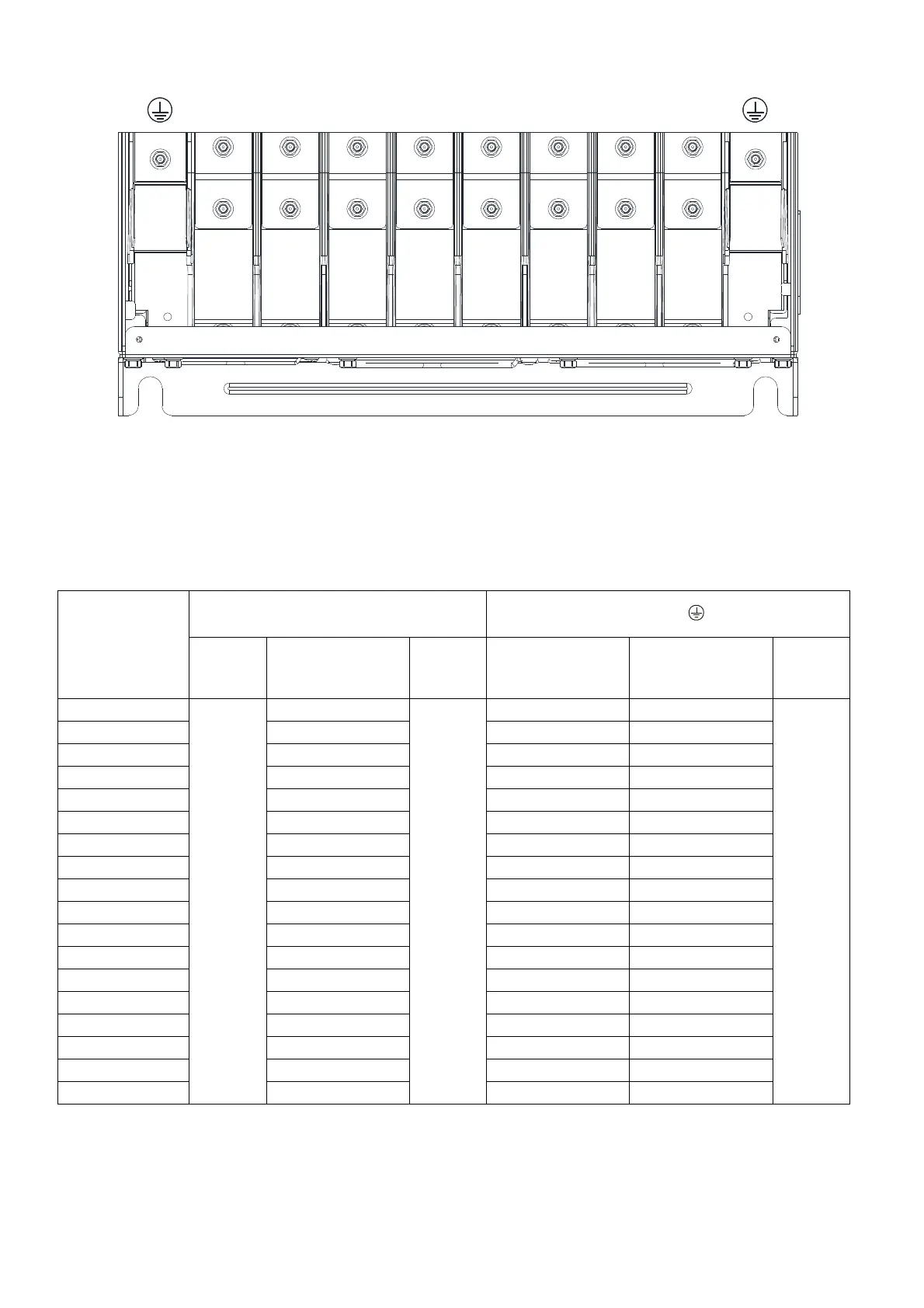

Frame E
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3-/DC- +1/DC+
 If you install at Ta 40°C environment, please select copper wire with voltage rating 600V and
temperature resistant at 75°C or 90°C.
 If you install at Ta 40°C above environment, please select copper wire with voltage rating 600V and
temperature resistant at 90°C or above.
 For UL installation compliant, please use copper wires for installation, the wire gauge is based on
temperature resistant at 75°C which is requested and recommended from UL. Do not reduce the wire
gauge when using higher temperature wire.
Model Name
Main Circuit Terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3, DC-,
DC+/+1, +2/B1, B2
Terminal
Max. Wire
Gauge
Min. Wire Gauge
Screw
Spec. and
Torque
(±10%)
Max. Wire Gauge Min. Wire Gauge
Screw
Spec. and
Torque
(±10%)
VFD550CP23A-00
120 mm
2
*2
[4/0 AWG*2]
70mm
2
*2 [2/0 AWG*2]
M8
180kg-cm
[156.2lb-in.]
[17.65Nm]
70mm
2
*2 [2/0 AWG*2] 70mm
2
*1 [2/0 AWG*1]
M8
180kg-cm
[156.2lb-in.]
[17.76Nm]
VFD750CP23A-00 95mm
2
*2 [3/0 AWG*2] 95mm
2
*2 [3/0 AWG*2] 95 mm
2
*1 [3/0 AWG*1]
VFD900CP23A-00 120mm
2
*2 [4/0AWG*2] 120mm
2
*2 [4/0AWG*2] 120 mm
2
*1 [4/0AWG*1]
VFD1100CP43A-00 70mm
2
*2 [2/0 AWG*2] 70mm
2
*2 [2/0 AWG*2] 70 mm
2
*1 [2/0 AWG*1]
VFD1320CP43A-00 70mm
2
*2 [2/0 AWG*2] 70mm
2
*2 [2/0 AWG*2] 70 mm
2
*1 [2/0 AWG*1]
VFD550CP23A-21 70mm
2
*2 [2/0 AWG*2] 70mm
2
*2 [2/0 AWG*2] 70 mm
2
*1 [2/0 AWG*1]
VFD750CP43A-21 95mm
2
*2 [3/0 AWG*2] 95mm
2
*2 [3/0 AWG*2] 95 mm
2
*1 [3/0 AWG*1]
VFD900CP43A-21 120mm
2
*2 [4/0AWG*2] 120mm
2
*2 [4/0AWG*2] 120 mm
2
*1 [4/0AWG*1]
VFD1100CP23A-21 70mm
2
*2 [2/0 AWG*2] 70mm
2
*2 [2/0 AWG*2] 70 mm
2
*1 [2/0 AWG*1]
VFD1320CP43A-21 70mm
2
*2 [2/0 AWG*2] 70mm
2
*2 [2/0 AWG*2] 70 mm
2
*1 [2/0 AWG*1]
VFD750CP63A-00 25mm
2
*2 [4 AWG*2] 25mm
2
*2 [4 AWG*2] 25mm
2
*1 [4 AWG*1]
VFD900CP63A-00 35mm
2
*2 [2 AWG*2] 35mm
2
*2 [2 AWG*2] 35mm
2
*1 [2 AWG*1]
VFD1100CP63A-00 35mm
2
*2 [2 AWG*2] 35mm
2
*2 [2 AWG*2] 35mm
2
*1 [2 AWG*1]
VFD1320CP63A-00 50mm
2
*2 [1/0 AWG*2] 50mm
2
*2 [1/0 AWG*2] 50mm
2
*1 [1/0 AWG*1]
VFD750CP63A-21 25mm
2
*2 [4 AWG*2] 25 mm
2
*2 [4 AWG*2] 25 mm
2
*1 [4 AWG*1]
VFD900CP63A-21 35mm
2
*2 [2 AWG*2] 35mm
2
*2 [2 AWG*2] 35mm
2
*1 [2 AWG*1]
VFD1100CP63A-21 35mm
2
*2 [2 AWG*2] 35mm
2
*2 [2 AWG*2] 35mm
2
*1 [2 AWG*1]
VFD1320CP63A-21 50mm
2
*2 [1/0 AWG*2] 50mm
2
*2 [1/0 AWG*2] 50mm
2
*1 [1/0 AWG*1]

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
