Delta DVP02TK-S User Manual

Chapter 1 Introduction
1-13
1_

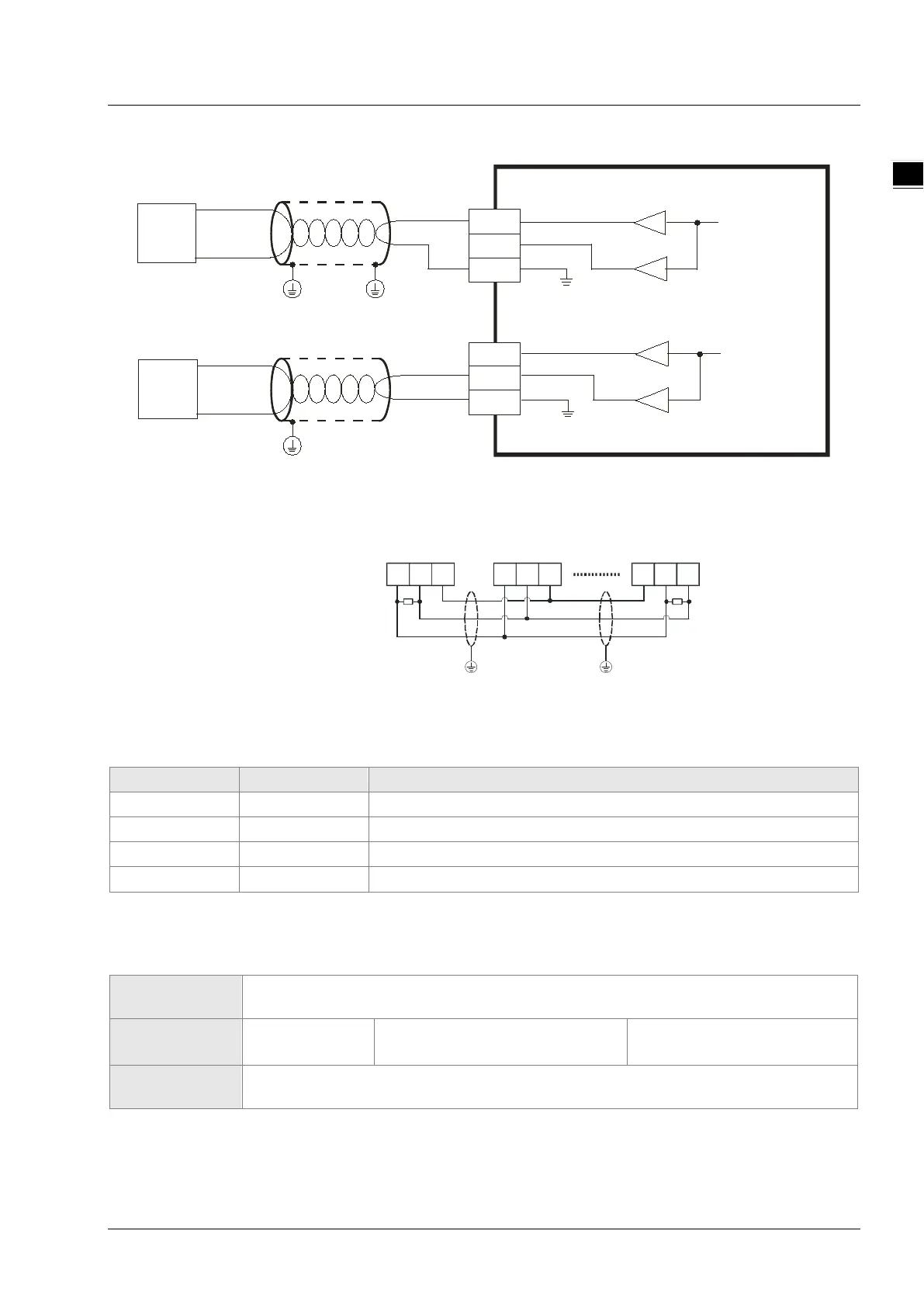

 DVP02TKL-S/DVP02TUL-S Output point wiring
OUT2
AG
OUT1
AG
CH1
CH2
VO
IO
AG
0V~+10V
VO
IO
AG
0mA~+20mA,
4mA~+20mA
 RS-485 Wiring
D+
D- SG D+ D- SG SG D+ D-
M ast er Slave Slave
Terminal
im pedaance
(120 ohm)
Shielded
cable*1
Shielded
c able *1
1.6 LED Indicator Description
LED Indicator
LED Color
Description
POWER
Green
Power status
A/D Green Operating status
ERROR Red Error display
OUT1~OUT4 Red Output status
1.7 RS-485 Communication for DVP02TK-S Series
Data Transmission
Speed
9,600; 19,200; 38,400; 57,600; 115,200bps
Communication
Format
Stop bit: 1, 2 Parity bit: None, Odd, Even Data bit: 7, 8
Communication
Protocool
MODBUS ASCII/RTU
