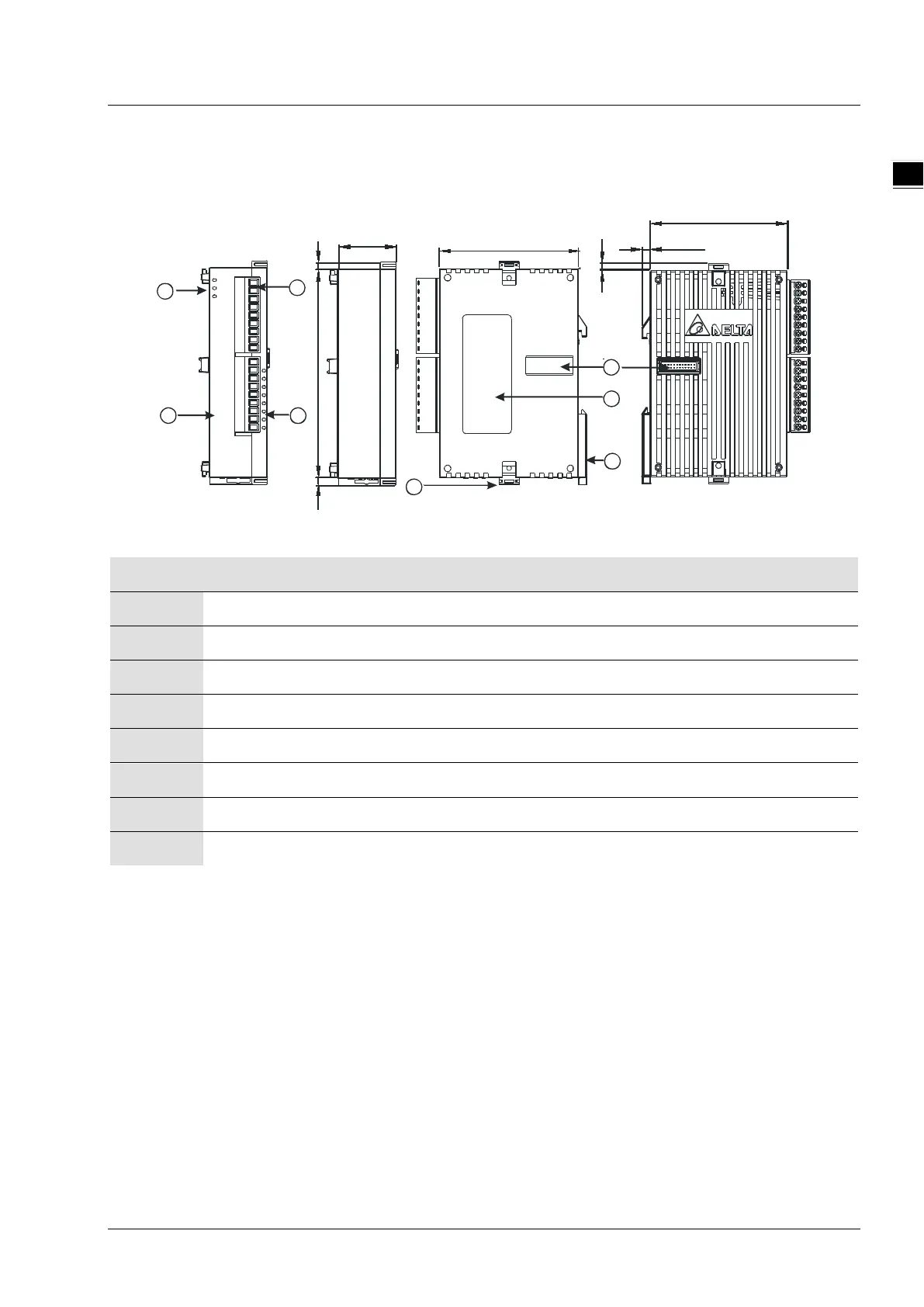

1.2 Dimensions (mm)
1.2.1 DVP02TU-S
8
DVP-02TU
1
2
3
4
6
5
7
3.40
60.00
90.00
25.20
60.00
3.00
3.00
3.00
Description
1 Run/Error indicator
2 Model name
3 Removable terminal block
4 I/O terminal layout
5 I/O module clip
6 I/O module connection port
7 Label
8 DIN rail clip
