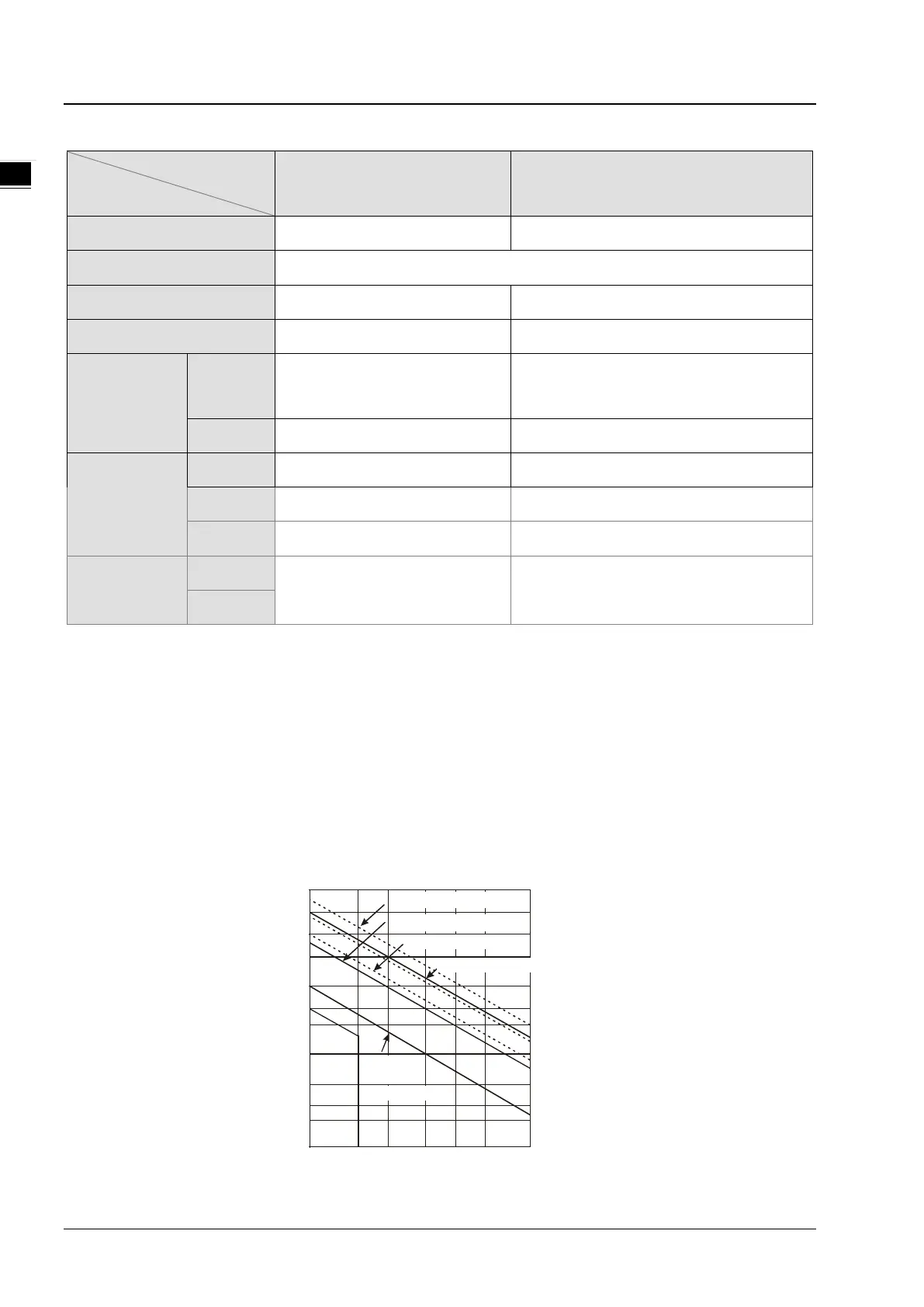

 DVP02TKR-S/DVP02TUR-S/DVP02TKN-S/DVP02TUN-S DO Function Specification
Model
Item
DVP02TKR-S
DVP02TUR-S
DVP02TKN-S
DVP02TUN-S
Output points
4 4
Connector Type
Removable terminal block
Output point type
Relay-R Transistor-T (NPN)
Voltage specification
Below 250VAC, 30VDC 12~30VDC
Maximum load
Resistive
2A/1point
(3A/COM)
*1
0.3A/1 point
(0.6A/COM)
*1
Inductive
Life curves
*2, 4
7.2W (24VDC)
*3
Maximum
output
frequency
Resistive
1Hz 100Hz
Inductive
0.5Hz 0.5Hz
Lamp
1Hz 10Hz
Maximum
response time
OFF→ON
10ms 0.5ms
ON→OFF
*1
. Complied with UL61010-2-201 & IEC61131-2 (AC or DC resistance)
*2
. Complied with UL61010-2-201 & IEC61131-2 (AC/DC general-use or AC pilot duty)
Rated making capacity: 7.5A; rated breaking capacity: 0.75A; 2.5A thermal continuous at 240VAC
DC pilot duty; rated making capacity: 0.22A; rated breaking capacity: 0.22A; 1A thermal continuous at 30VDC
*3
. Complied with IEC/UL61010-2-201 (DC general-use)
*4
. Life curves
Disconnect power before servicing to avoid the risk of electric shock.
Utilisez relay est sous tension. Risque de choc électrique, couper le courant avant l’entretien.
Contact Current(A)
20
0.5
0.1
0.2
30
50
0.3 0.7 1 2
200
300
500
100
1000
2000
3000
O
p
e
r
a
t
io
n
(
X
1
0
)
3
120VAC Resistive
30VDC Inductive(t=7ms)
240VAC Inductive(cos 0.4)
ψ =
120VAC Inductive(cos =0.4) ψ
30VDC
Inductive
(t=40ms)
