Chapter 2 Control Register
2-33
2.11 TK Wizard – Connection Setup
2.11.1 Restore to Factory Settings for DVP02TK-S
Refer to section 2.8.2 for more information on restoring the RS-485 communication settings back to defaults (9600/7/1/E,
station number 1).
2.11.2 COMMGR Set Up

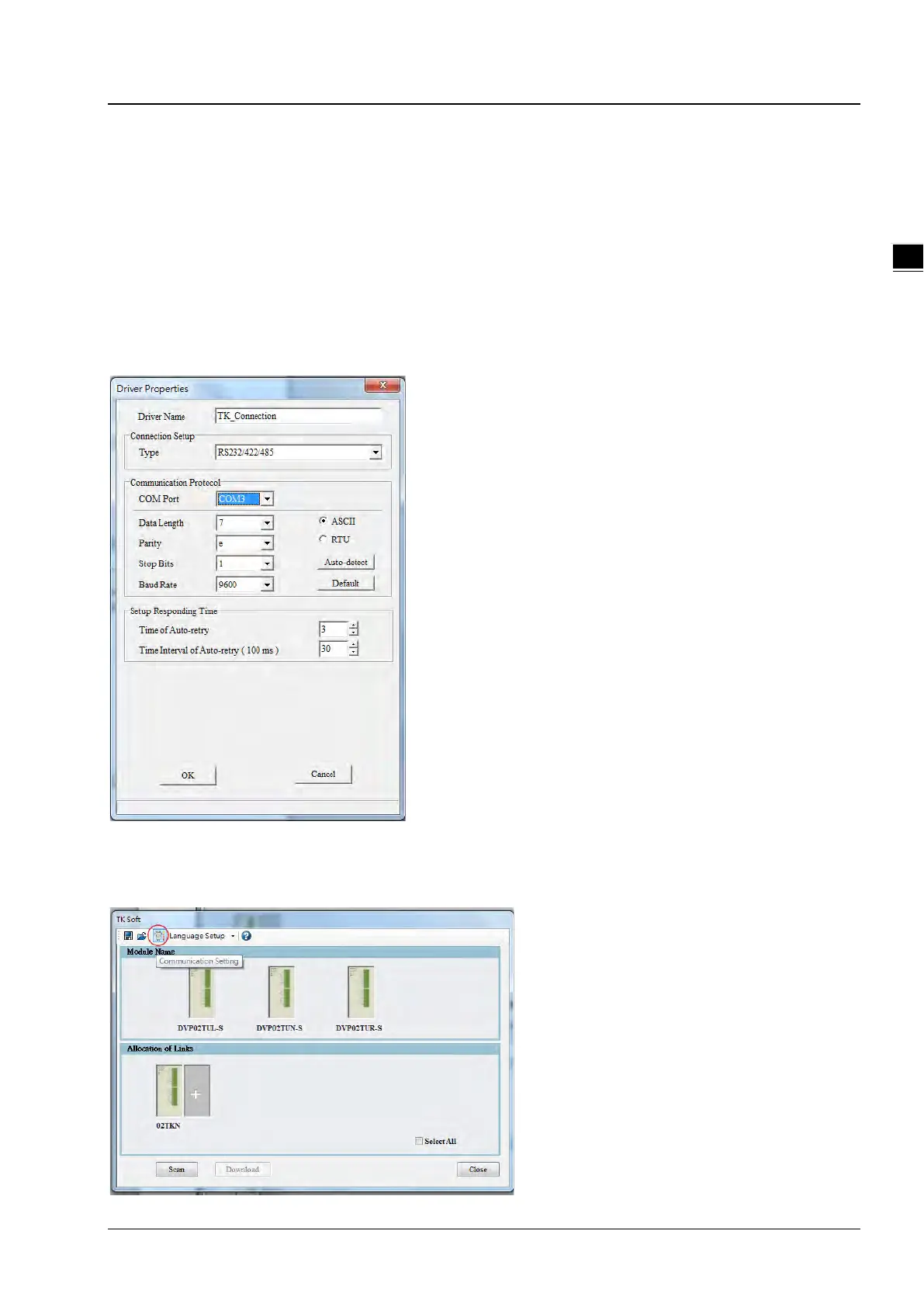

Input the communication setting values to create a TK connection in COMMGR. After setting the values, click the
auto-detect button to check if the connection is successfully established. Click OK to confirm the settings.
2.11.3 Settings in TKSoft
Click the icon Communication Setting in TKSoft to set up the communication.
