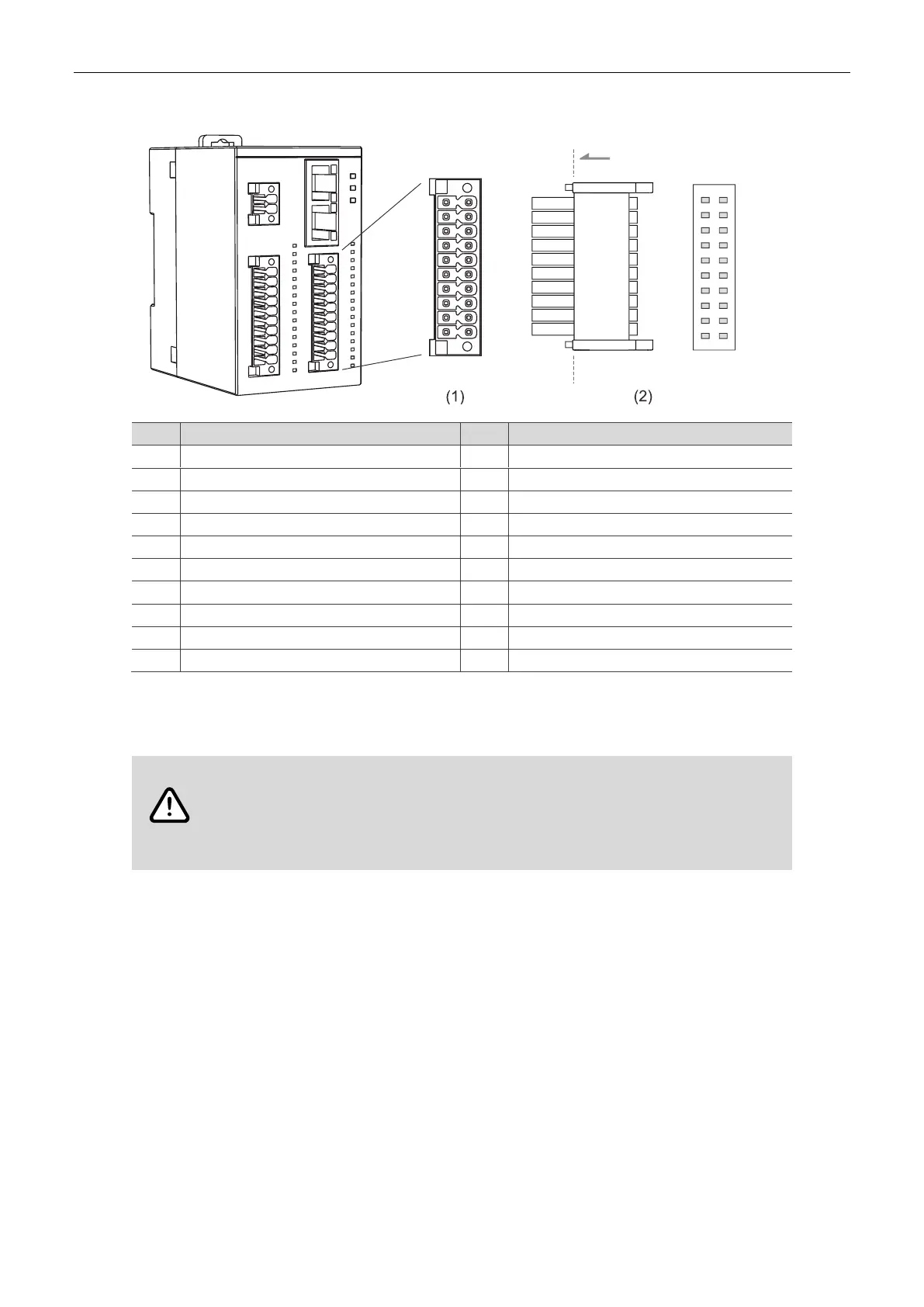

R2-ECx004 User Manual Specifications and Product Interface
2-9
2
Definitions of Port 1 for R2-EC1004 models are as follows.
16DI-DC
PORT1
S/S
S/S
0
2
4
6
8
10
12
14
S/S
1
3
5
7
9
11
13
15
Pin
Description
Pin
Description
S/S*
Common input point
-
Reserved (no connection)
S/S*
Common input point
S/S*
Common input point
0
1
st
input of Port 1
1
2
nd
input of Port 1
2
3
rd
input of Port 1
3
4
th
input of Port 1
4
5
th
input of Port 1
5
6
th
input of Port 1
6
7
th
input of Port 1
7
8
th
input of Port 1
8
9
th
input of Port 1
9
10
th
input of Port 1
10
11
th
input of Port 1
11
12
th
input of Port 1
12
13
th
input of Port 1
13
14
th
input of Port 1
14
15
th
input of Port 1
15
16
th
input of Port 1
Note: S/S is the common input point for connecting to the NPN type or PNP type load. When an NPN type
load is connected, S/S functions as Vcc. When a PNP type load is connected, S/S functions as GND.
WARNING
Follow the instructions for power supply and wiring to prevent any danger.
Use two independent 24 V
DC
power supplies for the module and the common input /
output points for proper operation.
Use 26 - 18 AWG wires for wiring.
