Delta R2-EC 004 Series User Manual

R2-ECx004 User Manual Wiring and Installation
3-5
3

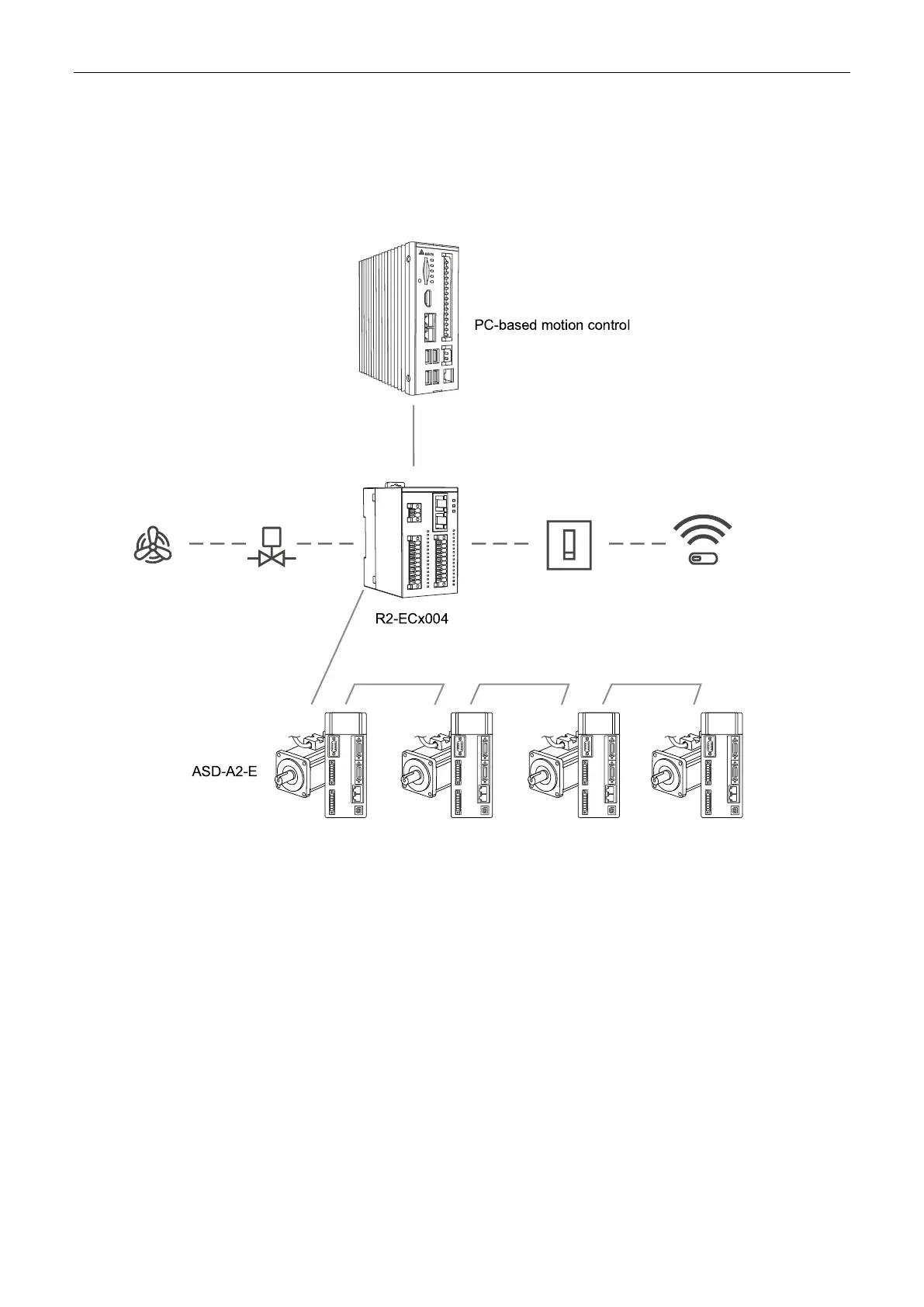

3.3 System structure example
The controller connects to the EtherCAT device (R2-ECx004) through Ethernet (RJ-45) to
communicate with the slave modules (such as ASD-A2-E), accessing and controlling the status
of the slaves.
Fan
Solenoid Valves SensorElectrical Switch
