6.5 Ambient temperature
The solar inverter can be operated in an ambient temperature between -25°C to +60°C.

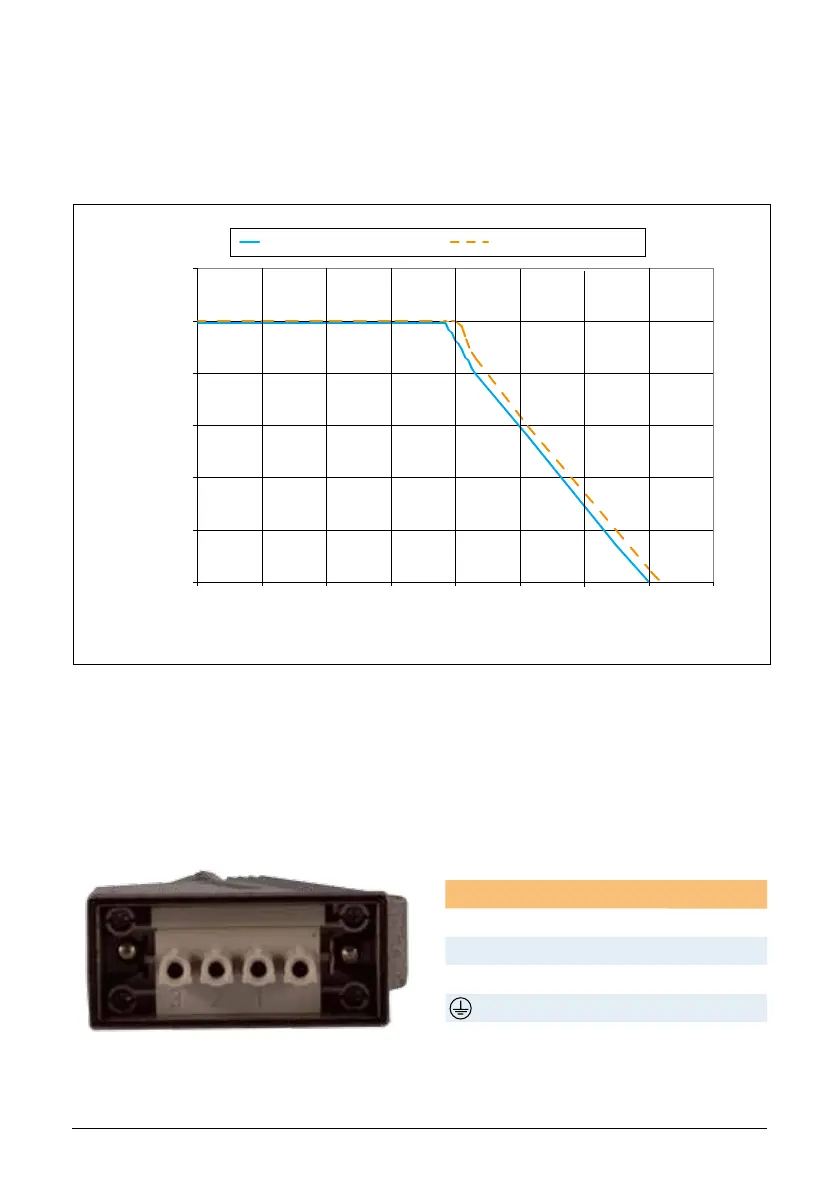

The following diagram illustrates how the power supplied by the solar inverter is reduced automa-
tically in accordance with ambient temperature.
The device should be installed in a well-ventilated, cool and dry location.
6.6 Grid connection
The grid (AC output) is connected over a Phoenix VARIOCON AC connector. You can nd the cor-
rect allocation on the screw-type terminal connection of the connector. The solar inverter must be
connected to the grid over a three-core line (L, N, PE). The connected AC line must be switched
potential-free before the disconnection or the insertion of the AC connector.
The connection to the Phoenix AC connector must be implemented with a exible line and a con-
ductor cross section of min. 4.0 mm² to max. 6.0 mm².
An automatic circuit breaker is to be provided in the line L upstream of every device, with a nominal
current of 32 A and tripping characteristic type B. In addition, attention is to be paid to the selectivity
of the fuse unit attached upstream of the automatic circuit breaker.
0
1000
2000
3000
4000
5000
6000
0 10 20 30 40 50 60 70 80
Ambient temperature (°C)
Output power (W )
5000 W without fan
5000 W with fan
Note: Nominal output power is limited to 4600 W for German version EOE460100009
Connection Signication Cable color
1 Phase black or brown
2 not used
3 Neutral blue
Protective earth (PE) green/yellow
