Delta SI 5000 User Manual

10
6.7.1 Solar inverter range

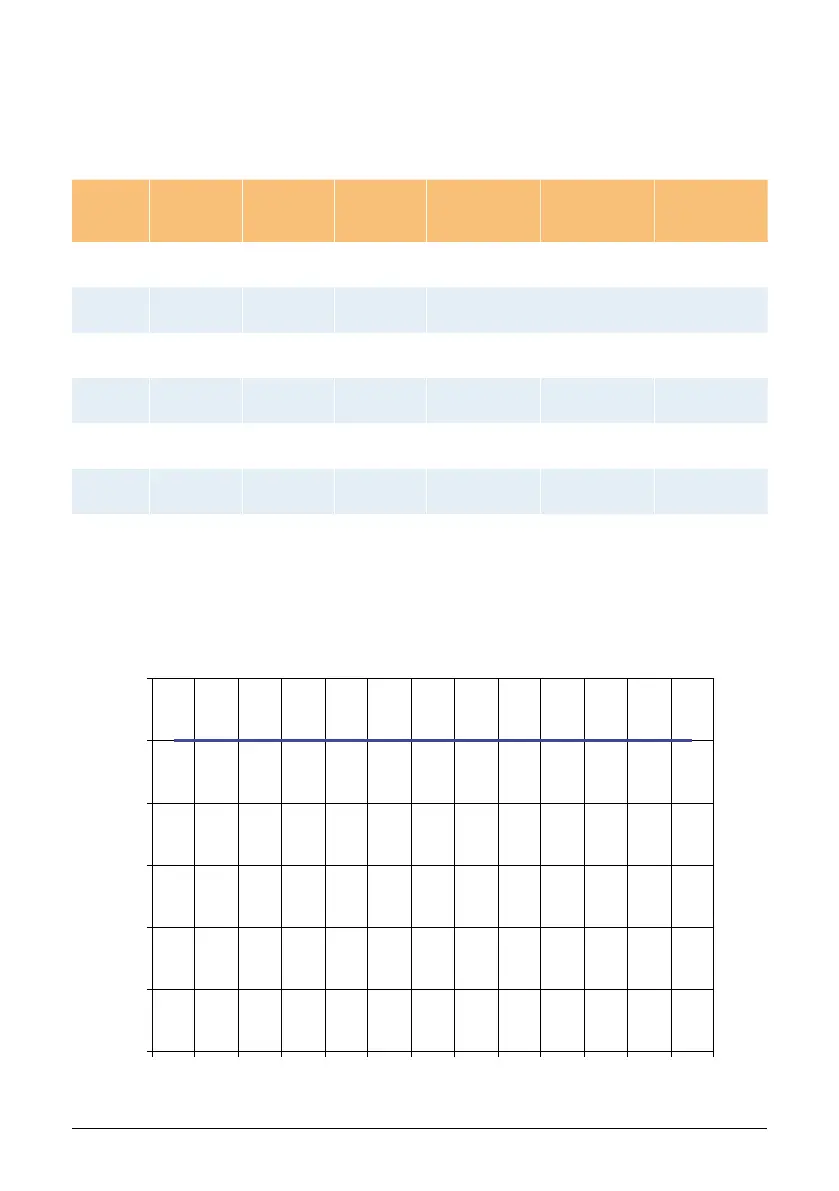

Please consider the following limit curve diagram of the solar inverter:
0
1000
2000
3000
4000
5000
6000
150 1 7 5 200 2 2 5 250 275 30 0 325 3 5 0 375 4 0 0 425 4 5 0
Voltage of PV Modules (V)
Output power (W)
Cable
coupler
polarity
Wire size
2.5 mm
2
(AWG 14)
Wire size
4.0 mm
2
(AWG 12)
Wire size
6.0 mm
2
(AWG 10)
Female cable
coupler
Plus coded
Female cable
coupler
Minus coded
Tyco
Order
number
Plus
coupler
• • 1394462-1
Minus
coupler
• • 1394462-2
Plus
coupler
• • 1394462-3
Minus
coupler
• • 1394462-4
Plus
coupler
• • 1394462-5
Minus
coupler
• • 1394462-6
Alternatively, it is possible to turn off the insulation- and grounding monitoring:
• ISO / GND OFF.
