Chapter 5 Parameters|VFD-B-P Series
5-36 Revision April 2009, SW V1.00
These three parameters (Pr.02-10~02-12) are enabled when Pr.02-00 or Pr.02-13 are set to
06. If they are enabled, the frequency command will be determined by these parameters.
02 - 02 Stop Method
Factory Setting: 00
Settings 00 STOP: ramp to stop E.F.: coast to stop
01 STOP: coast to stop E.F.: coast to stop
02 STOP: ramp to stop E.F.: ramp to stop
03 STOP: coast to stop E.F.: ramp to stop
The parameter determines how the motor is stopped when the AC motor drive receives a valid
stop command or detects External Fault.
1. Ramp: the AC motor drive decelerates to Minimum Output Frequency (Pr.01-05)
according to the deceleration time and then stops.
2. Coast: the AC motor drive stops the output instantly upon command, and the motor
free runs until it comes to a complete standstill.
3. The motor stop method is usually determined by the characteristics of the motor load and
how frequently it is stopped.
(1) It is recommended to use “ramp to stop” for safety of personnel or to prevent
material from being wasted in applications where the motor has to stop after the
drive is stopped. The deceleration time has to be set accordingly.
(2) If the motor free running is allowed or the load inertia is large, it is
recommended to select “coast to stop”.
For example: blowers, pumps and stirring machines.
RUN
STOP RUN
STOP
Frequency
Frequency
Time
Time
output
frequency
output
frequency
motor
speed
motor
speed
operation
command
operation
command
stops according to
decel eration time
free run to stop

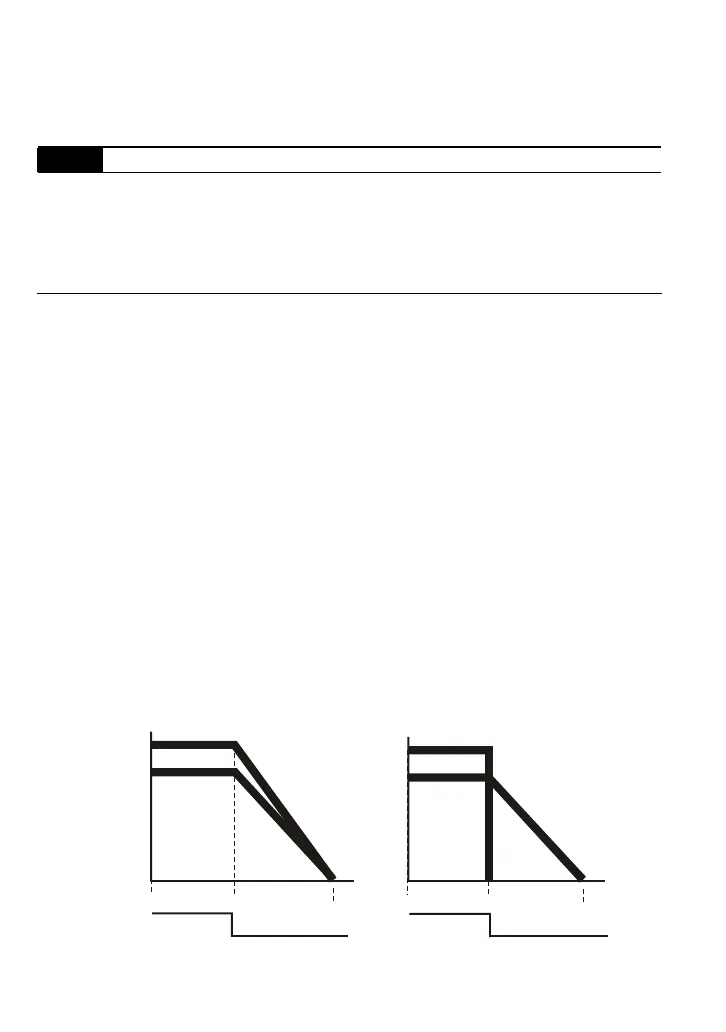

ramp to stop and free run to stop
