Delta VFD-B Series User Manual

Chapter 1 Introduction|VFD-B-P Series
1-4 Revision April 2009, SW V1.00
1.1.4 Capacity Modules

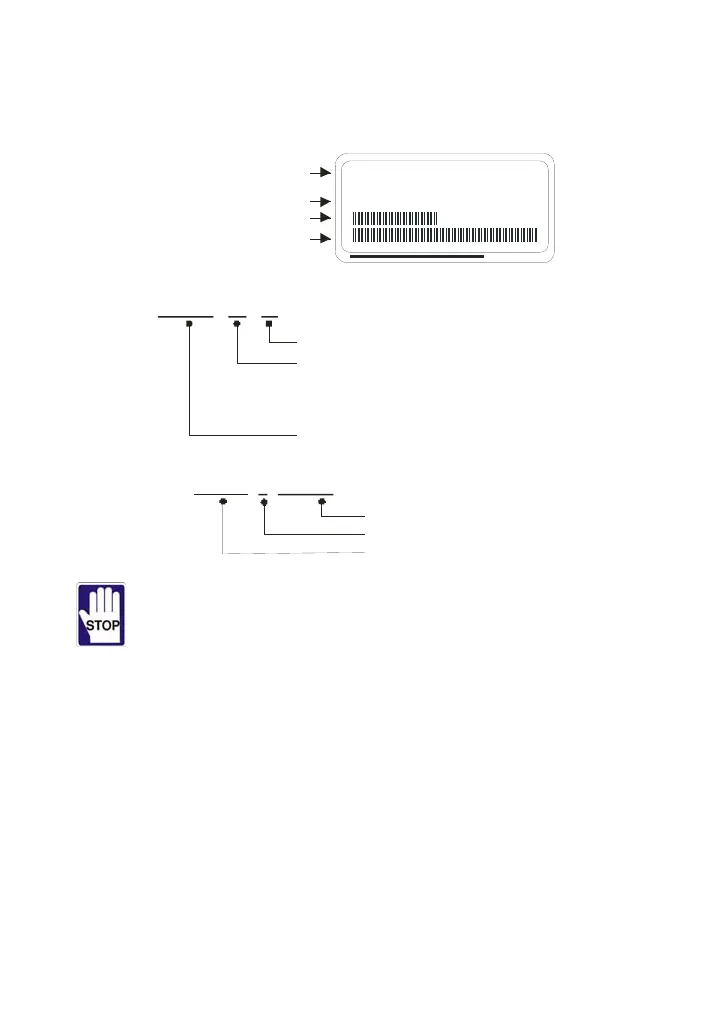

1.1.4.1 Side Label
Example for 7.5HP/5.5kW 3-phase 460V AC motor drive
AAXXX6000001
MODULE NO: 3812703800
EXTERNAL CAPACITOR MODULE
USED ON : VF D055 B4 3P
3800
Model number
Applicable models
Corr espon ding ba rcode
Serial number
1.1.4.2 Model Explanation
381270 38 00
38:VFD055B43P 36:VFD075B43P
35:VFD110B43P 37:VFD150B43P
33:VFD185B43P 32:VFD220B43P
31:VFD300B43P, VFD370B43W-P
65:VFD450B43W-P
Version
Delta pa rt number for cap aci ty modu le
1.1.4.3 Serial Number Explanation
AAXX
X
9 000001
Production number
Production year(2009)
Production code
The AC motor drive should be used with the corresponding capacity module.
Please check if the applicable model shown on the label of capacity module
corresponds to the AC motor drive. If the nameplate information does not
correspond to the AC motor drive or if there are any problems, please contact
your distributor.

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
