Delta VFD-B Series User Manual

Chapter 2 Installation and Wiring|VFD-B-P Series
2-32 Revision April 2009, SW V1.00

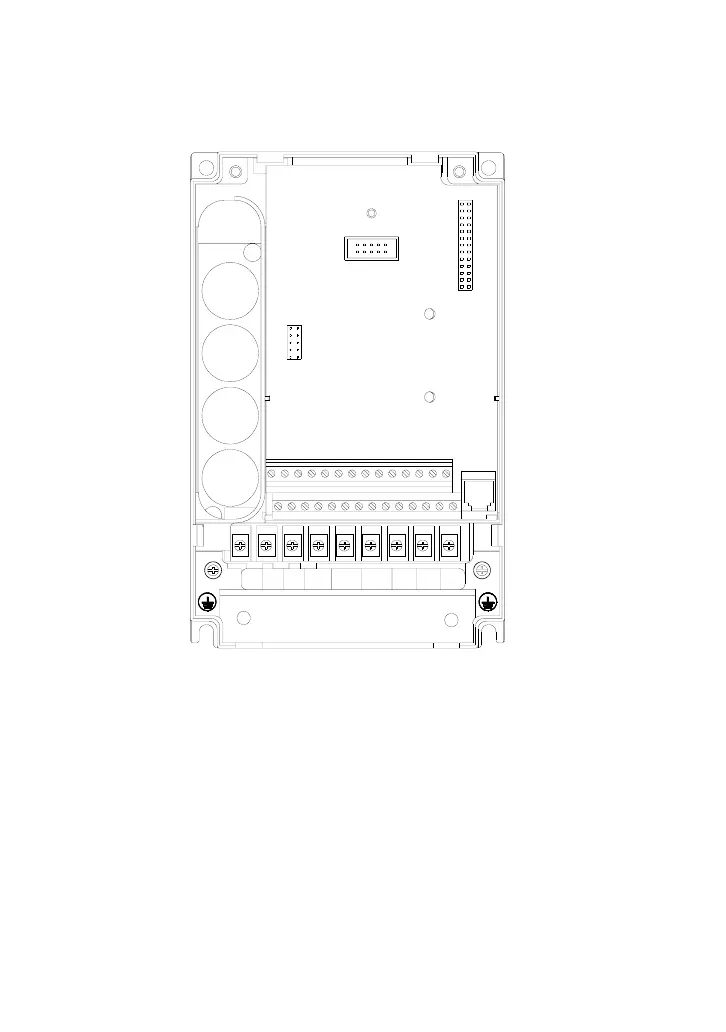

2.4.5 Main Circuit Terminals
3HP (2.2kW): VFD022B43P-A
L1
/
T
S
//
U
V
W
/
//
T3
T2
T1
+2
/
B1
R
L2
L3
+1
B2
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm
2
)
Power Terminal
Torque: 18 kgf-cm (15.6 in-lbf)
Wire Gauge: 10-18 AWG (5.3-0.8 mm
2
) stranded wire, 12-18 AWG (3.3-0.8 mm
2
) solid wire
Wire Type: Copper only, 75°C

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
