Revision April 2009, SW V1.00 1-1
Chapter 1 Introduction
1.1 Receiving and Inspection
This VFD-B-P AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
Inspect the unit to assure it was not damaged during shipment.
Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

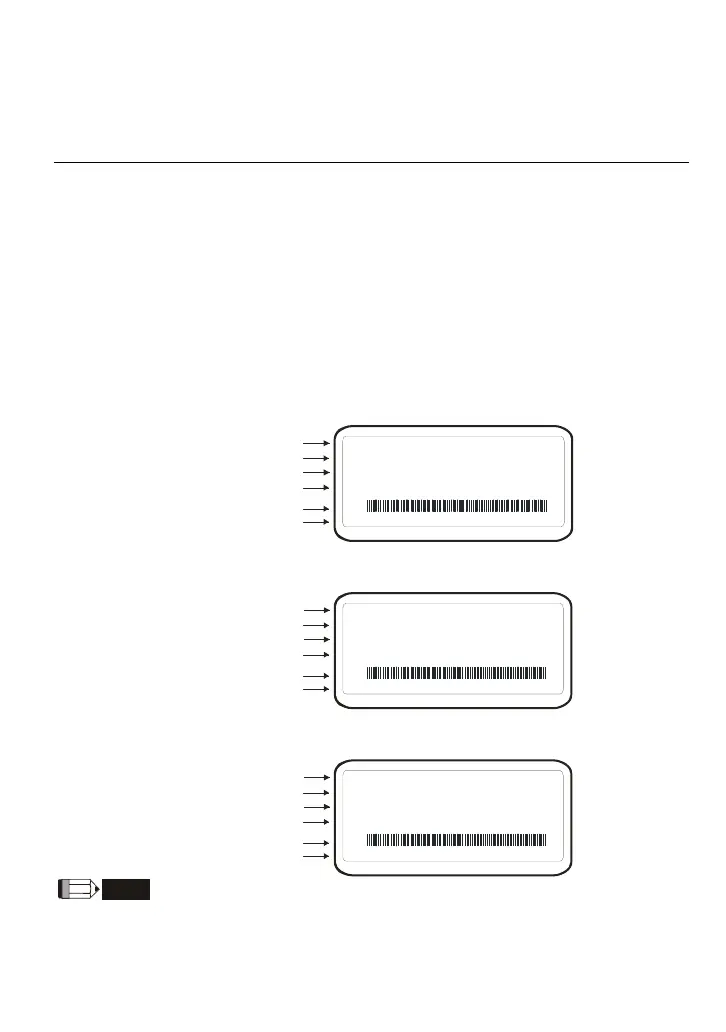

1.1.1 Nameplate Information
1. For standard plate drives (models VFD055B43P~VFD300B43P (7.5~40HP))
Example for 7.5HP/5.5kW 3-phase 460V AC motor drive
Serial Number & Bar Code
AC Drive Model
Input Spec.
Output Spec.
Output Freque ncy Range
Enclosure typ e
MODE : VFD055B 43 P
INPUT :3PH 380-480V 50/60Hz 14A
OUTPUT :3PH 0-480V 13A 10kVA 7.5HP
Freq. Range :0.1~400Hz
ENCLOSURE: IP20
055B43PST6010001
2. For standard plate drives (models VFD370B43W-P~ VFD450B43W-P (50~60HP))
Example for 50HP/37kW 3-phase 460V AC motor drive
Serial Number & Bar Code
AC Drive Mod el
Input Spec.
Output Sp ec.
Output Freque ncy Ran ge
Enclosure type
MODE : V FD370B43W-P
INPUT :3PH 380-480V 50/60Hz 63A
OUTPUT :3PH 0-480V 73A 56kVA 50HP
Freq. Range :0.1~400Hz
ENCL OS URE: IP 20
370B43WPW7010001
3. For models with heatsink (models VFD022B43P-X~ VFD450B43P-X (3~60HP))
Example for 7.5HP/5.5kW 3-phase 460V AC motor drive with heatsink type C0
Serial Number & Bar Code
AC Drive Mod el
Input Spec.
Output Sp ec.
Output Freque ncy Ran ge
Enclosure type
MODE : V FD05 5B 43 P
INPUT :3PH 380-480V 50/60Hz 14A
OUTPUT :3PH 0-480V 13A 10kVA 7.5HP
Freq. Range :0.1~400Hz
ENCL OS URE: IP 20
055B43P0T6010001
NOTE
The models with heatsink (models VFD022B43P-X~ VFD450B43P-X (3~60HP)) are only for China
market.
To Next Page
