Delta VFD-B Series

Chapter 5 Parameters|VFD-B-P Series
5-44 Revision April 2009, SW V1.00
Settings 0.00 to 400.00 Hz Factory Setting: 0.00
03 - 10 Desired Frequency Attained 2 Unit: 0.01
Settings
0.00 to 400.00 Hz
Factory Setting: 0.00
 If a multi-function output terminal is set to function as Desired Frequency Attained 1 or 2
(Pr.03-00 to Pr.03-03 = 09 or 22), then the output will be activated when the programmed
frequency is attained.
-2Hz
4Hz
2Hz
OFF
OFF
ON
ON
OFF
ON
OFF
ON
OFF
OFF
ON
OFF
ON
ON
detec ti on
range
Frequenc
y
master
frequency
desired
frequency
detection range
detection
range
DC brake time
during stop
Time
waiting time
for
frequency
run/stop
master freq. attained
(output signal)
desir ed freq. attained
setting 03 zero speed indication
setting 24 zero speed indication

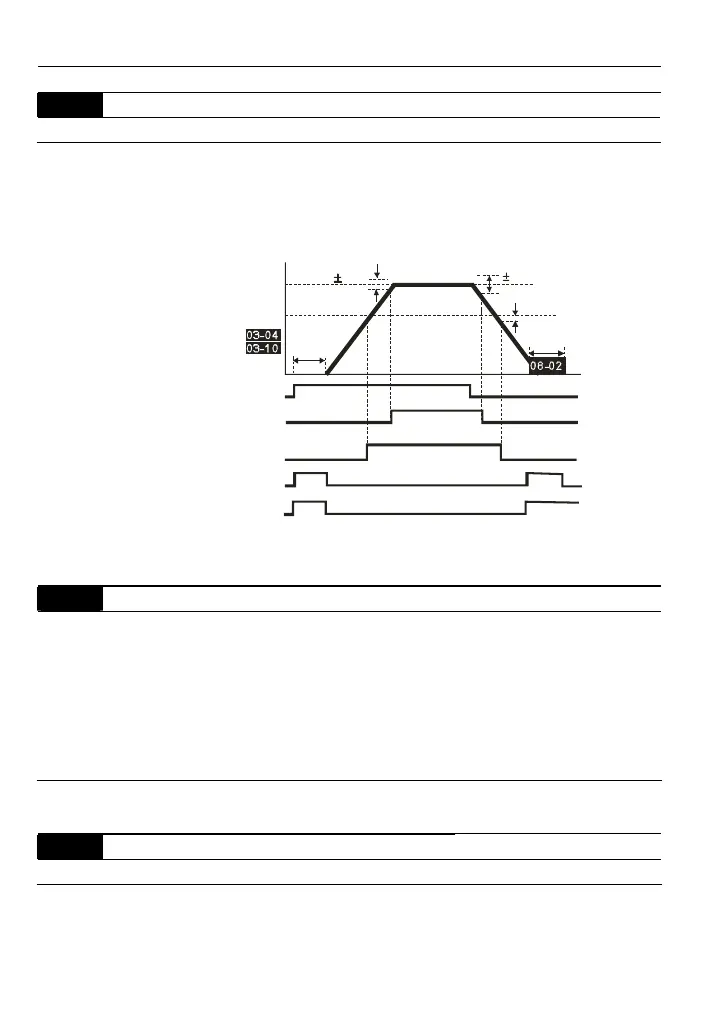

output timing ch a rt of multi pl e fu nction terminals
when setting to frequency attained or zero speed indication
03 - 05 Analog Output Signal (AFM)
Factory Setting: 00
Settings 00 Analog Frequency Meter (0 to Maximum Output Frequency)
01 Analog Current Meter (0 to 250% of rated AC motor drive current)
02 Output voltage (0 to Pr.01-02)
03 Output frequency command (0 to Maximum Frequency)
04 Output motor speed (0 to the Maximum Frequency)
05 Load power factor (cos90
o
to 0
o
)
 This parameter sets the function of the AFM output 0~+10VDC (ACM is common).
03 - 06 Analog Output Gain Unit: 1
Settings 01 to 200% Factory Setting: 100
 This parameter sets the voltage range of the analog output signal.
