Delta VFD-B Series

Chapter 5 Parameters|VFD-B-P Series
Revision April 2009, SW V1.00 5-47

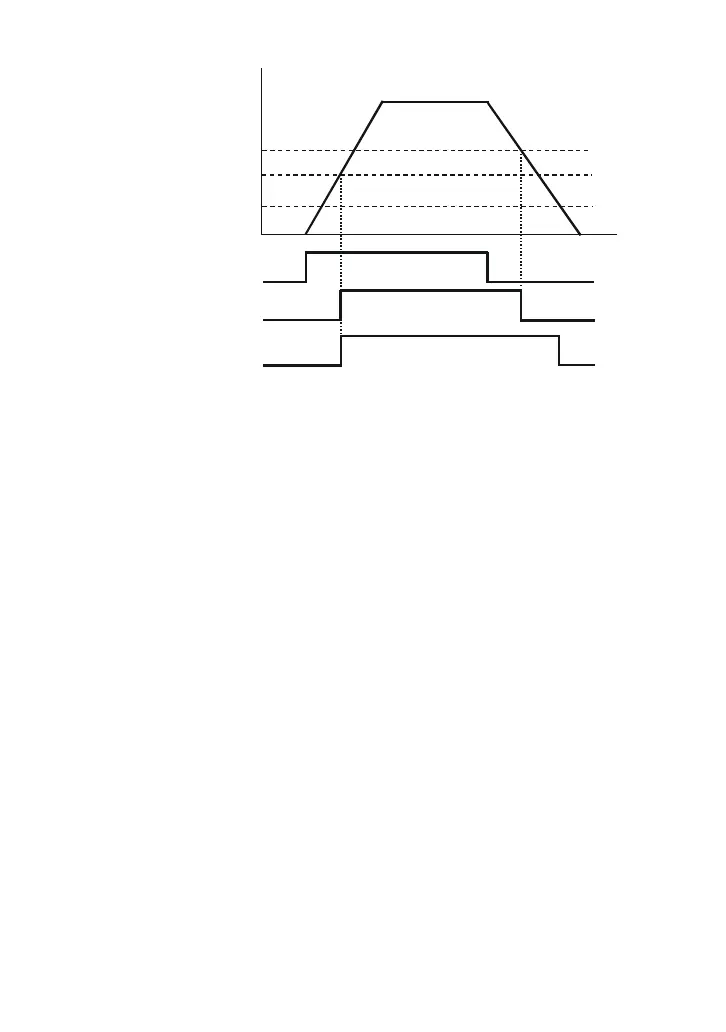

Case 1: Pr.03-14
Case 2: Pr.03-14
Pr. 03-13
Frequency
Output
Time
Run/Stop
Case 1: MOX=29
Case 2: MOX=29
Note: MOX: setting value of Pr.03-00~Pr.03-03
 When one of Pr.03-00~Pr.03-03 is set to 29(Brake Control): If the output frequency reaches
the setting of Pr.03-13, the multi-function output terminal will be ON. If the output frequency
reaches the setting of Pr.03-14, the multi-function output terminal will be OFF.
