Delta VFD-B Series User Manual

Appendix B Accessories|VFD-B-P Series
Revision April 2009, SW V1.00 B-13

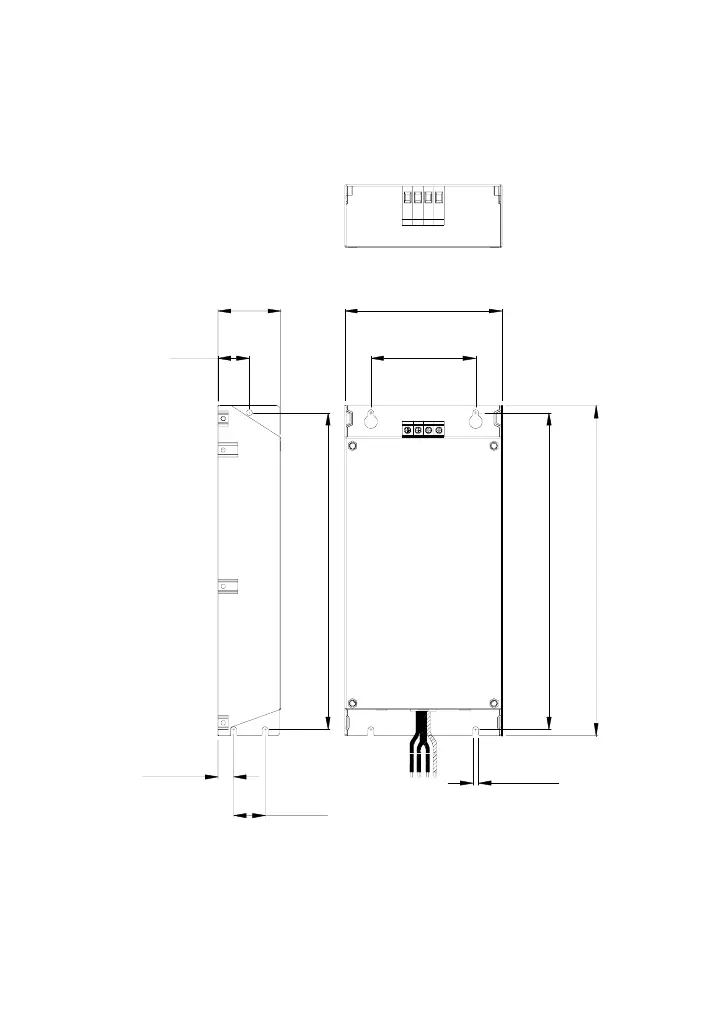

B.2.1 Dimensions
Dimensions are in millimeter and (inch)
Order P/N: RF037B43BA
150.0
(5.9)
100.0
(4.33)
60.0
(2.36)
302.0
(11.89)
30.0
(1.18)
15.0
(0.59)
30.0
(1.18)
315.0
(12.4)
302.0
(11.89)
5.5
(0.22)

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
